Automatic Transaxle Unit: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

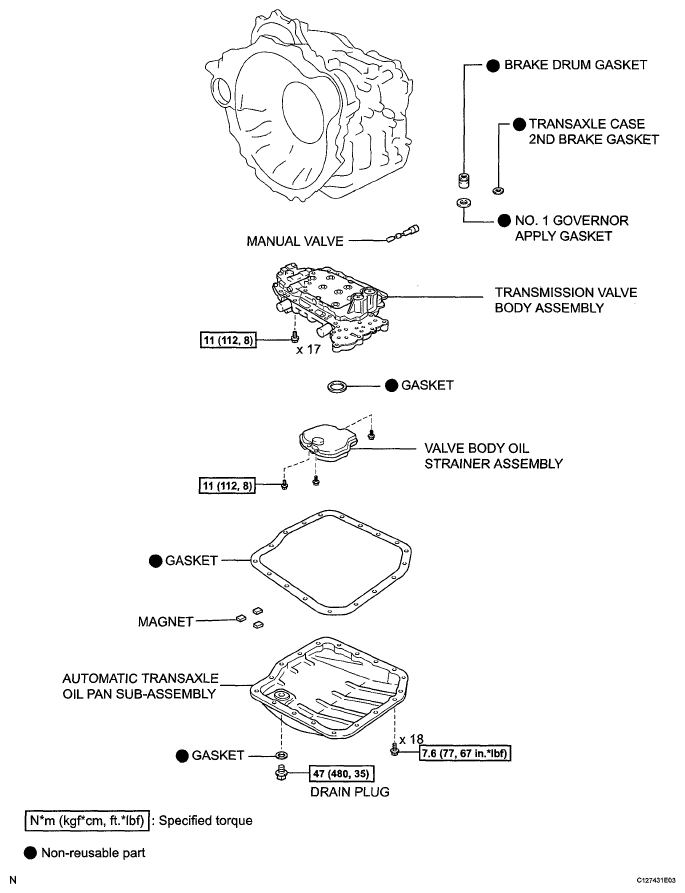

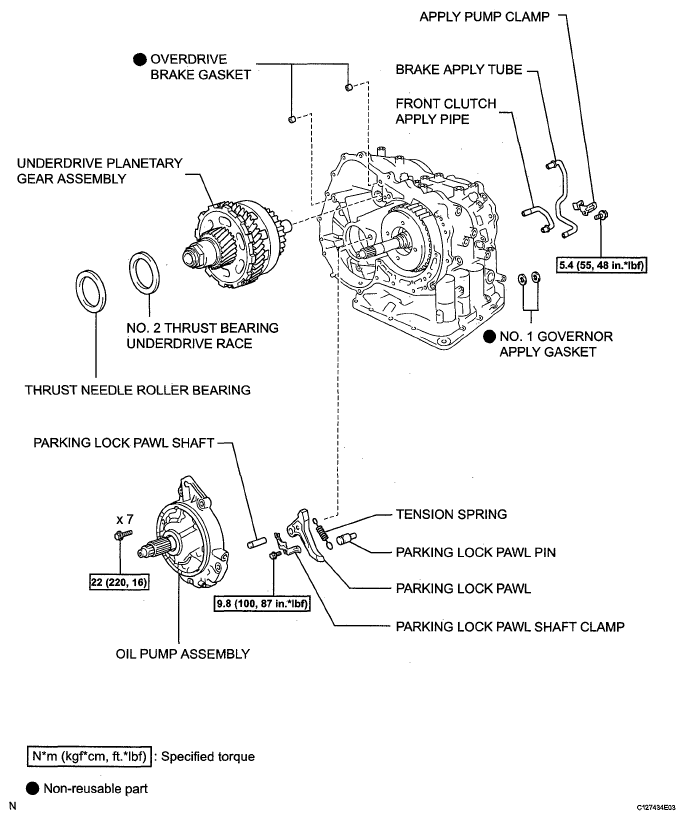

Fig 1: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

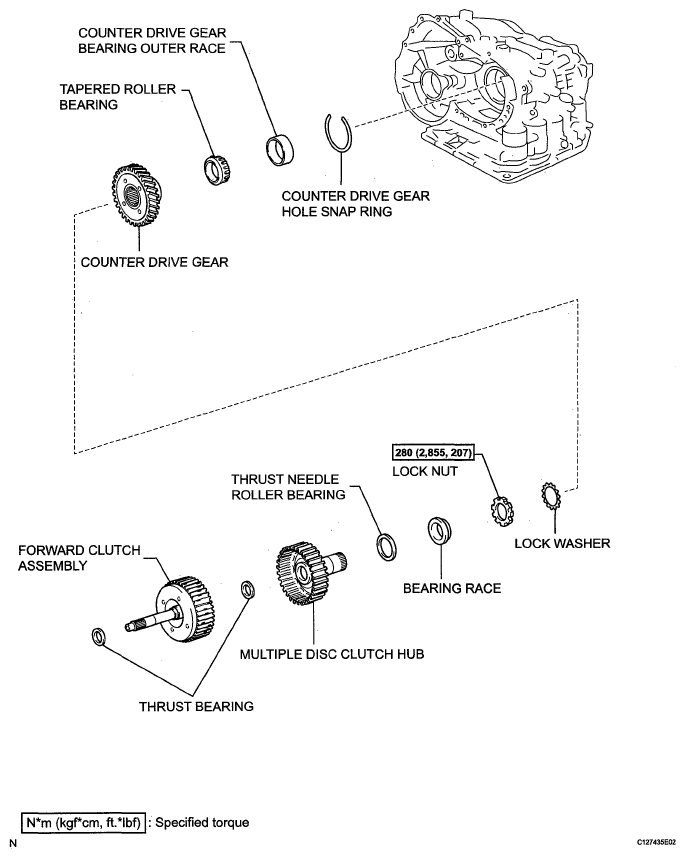

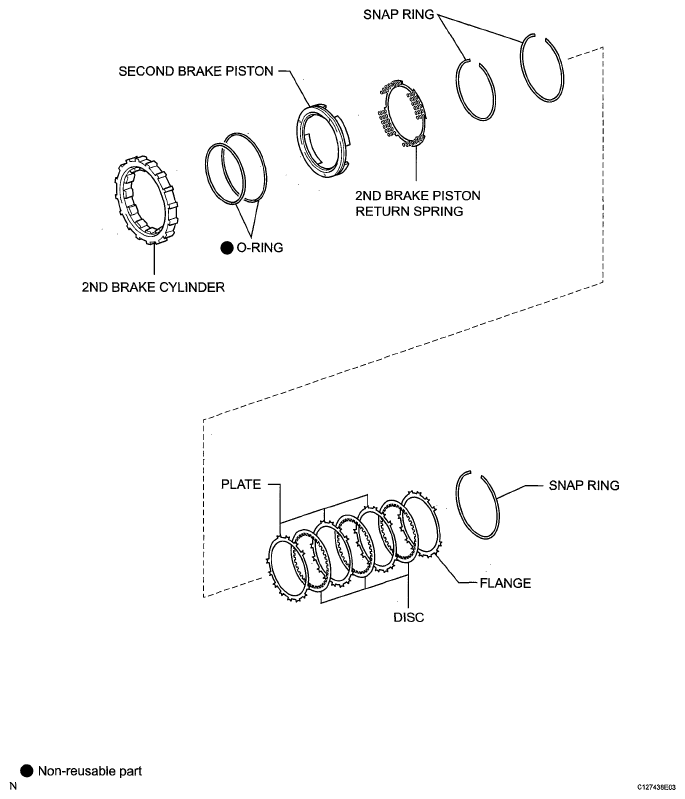

Fig 2: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

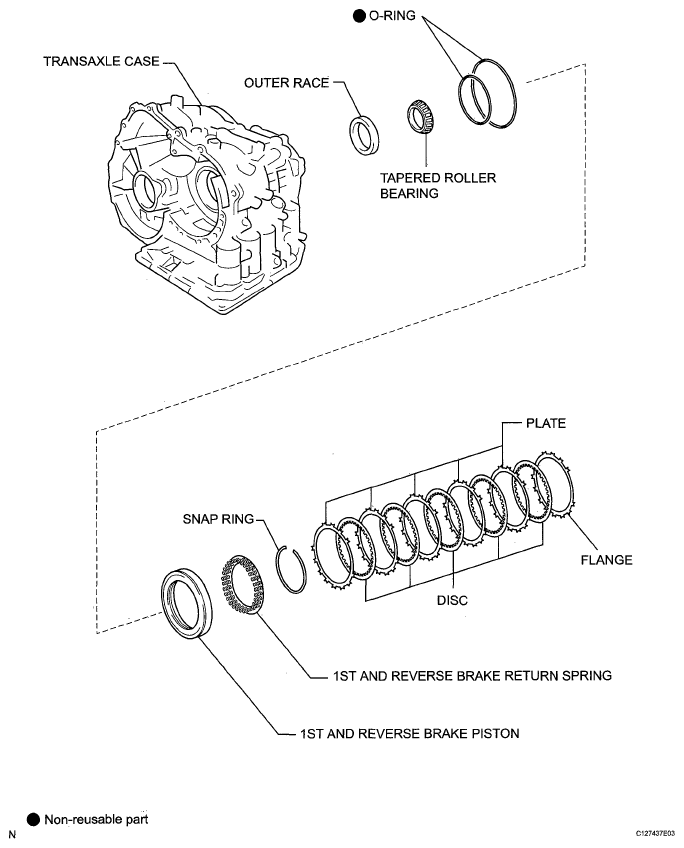

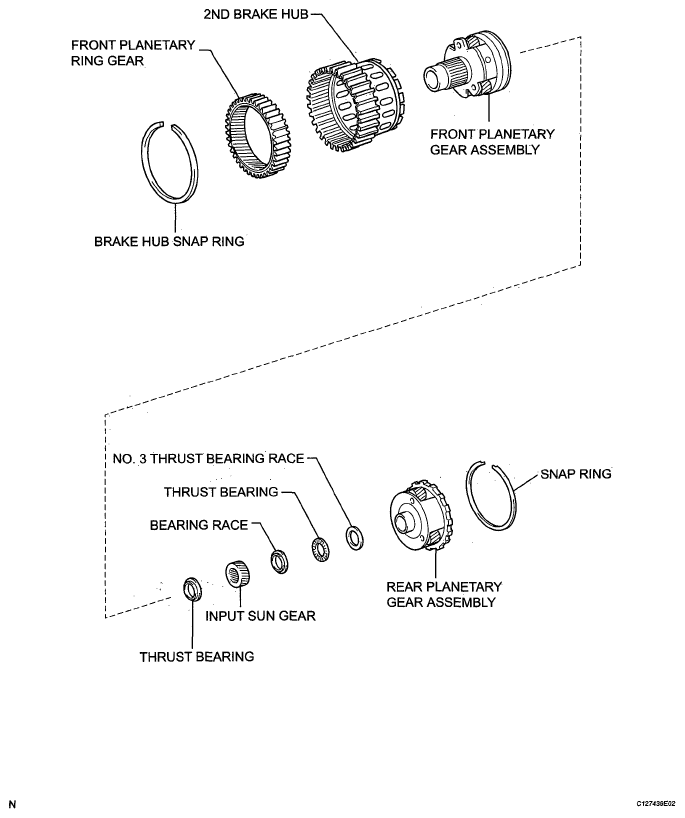

Fig 3: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

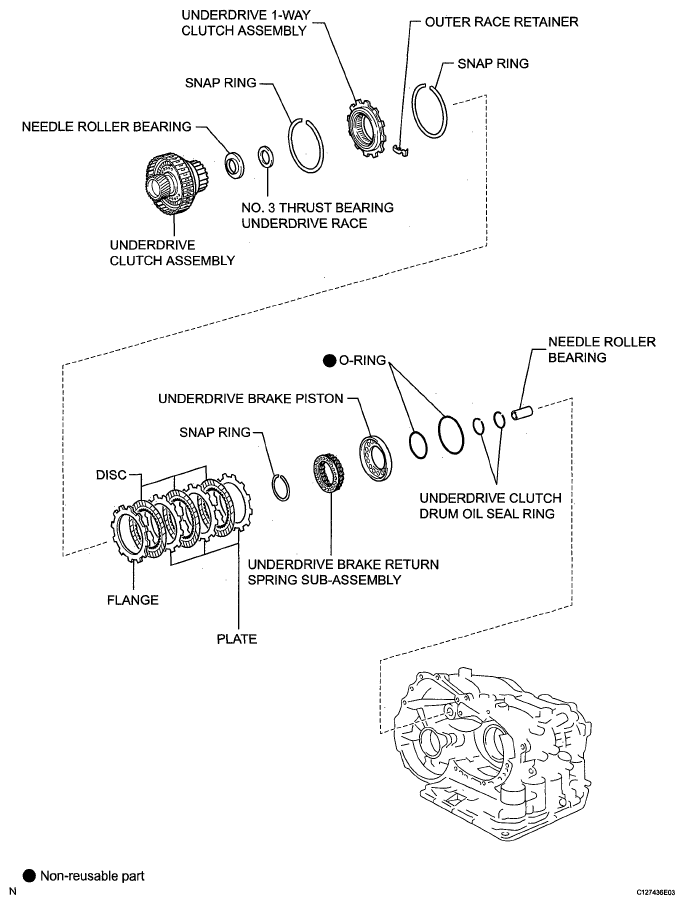

Fig 4: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

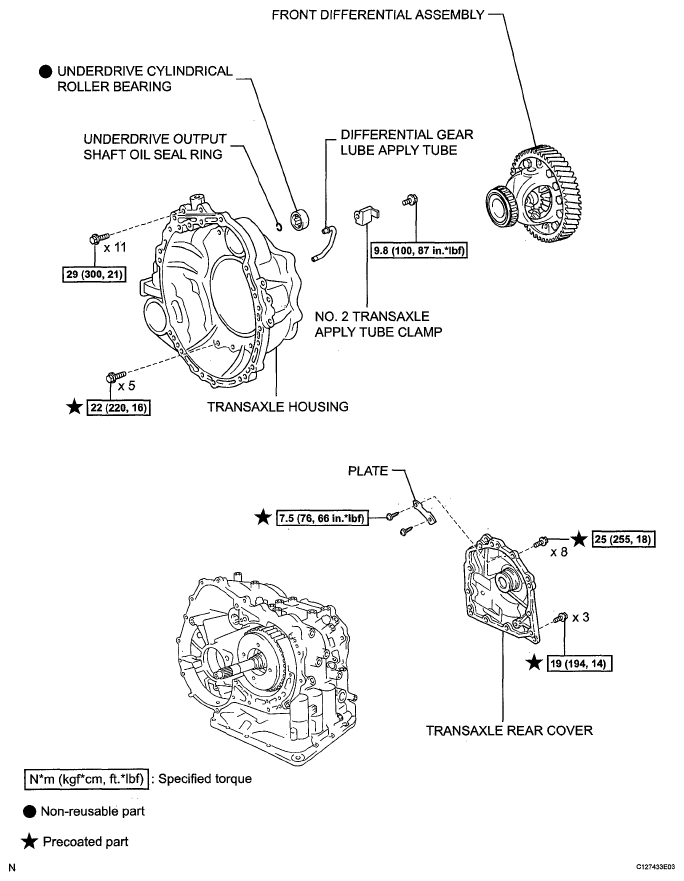

Fig 5: Identifying Automatic Transaxle Unit Replacement Components With Torque Specifications (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

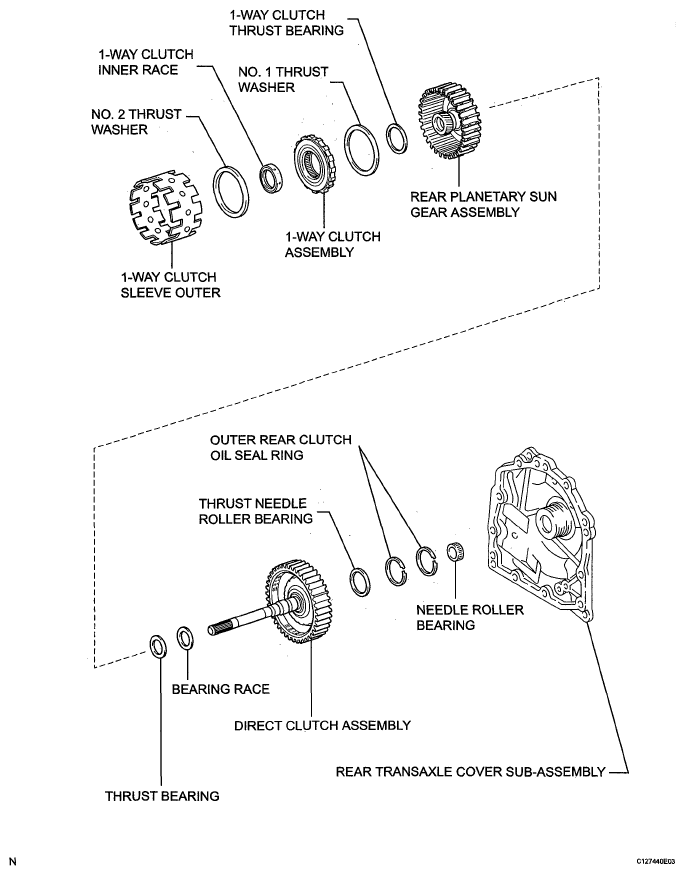

Fig 6: Identifying Automatic Transaxle Unit Replacement Components With Torque Specification (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

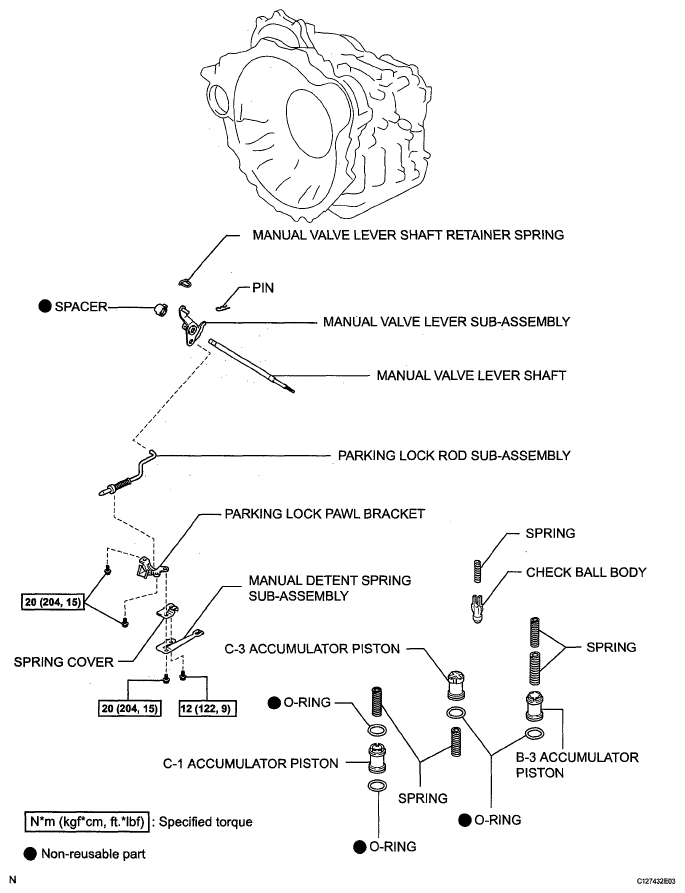

Fig 7: Identifying Automatic Transaxle Unit Replacement Components (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

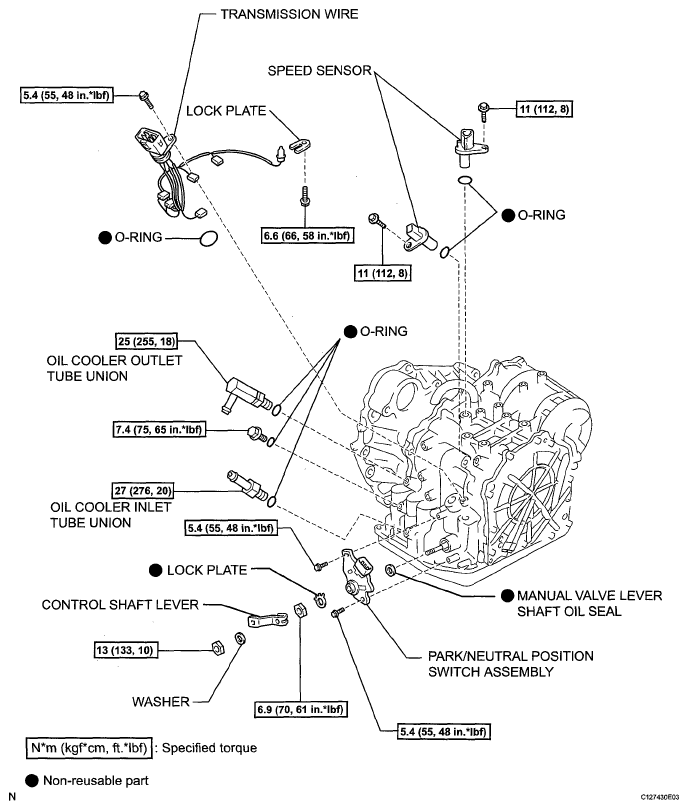

Fig 8: Identifying Automatic Transaxle Unit Replacement Components (8 Of 11)

Fig 9: Identifying Automatic Transaxle Unit Replacement Components (9 Of 11)

Fig 10: Identifying Automatic Transaxle Unit Replacement Components (10 Of 11)

Fig 11: Identifying Automatic Transaxle Unit Replacement Components (11 Of 11)
