System Diagram

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

The configuration of the electronic control system in the U241E automatic transaxle is as shown in the following chart.

Fig 1: Automatic Transaxle System Diagram (1 Of 4)
G05584070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

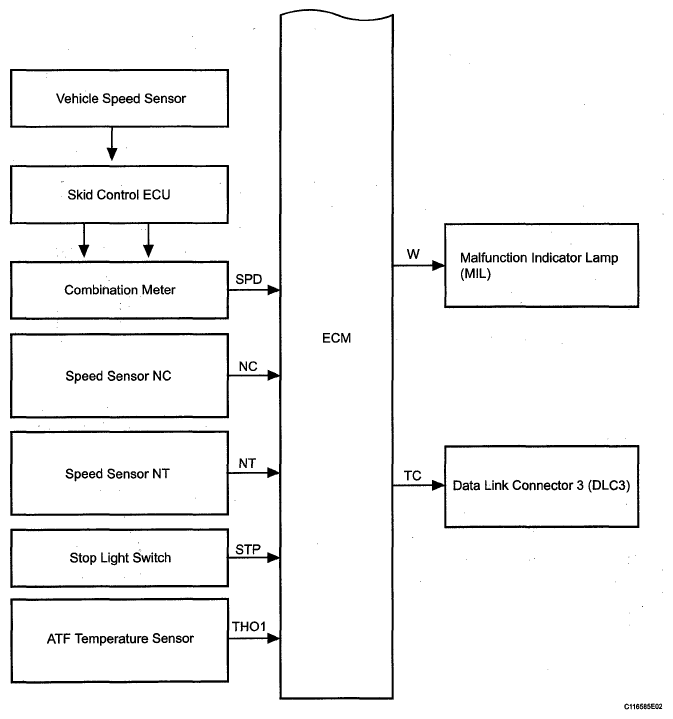

Fig 2: Automatic Transaxle System Diagram (2 Of 4)
G05584071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Automatic Transaxle System Diagram (3 Of 4)
G05584072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Automatic Transaxle System Diagram (4 Of 4)
G05584073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
