System Diagram

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

The configuration of the electronic control system in the U151F automatic transaxle is as shown in the following chart.

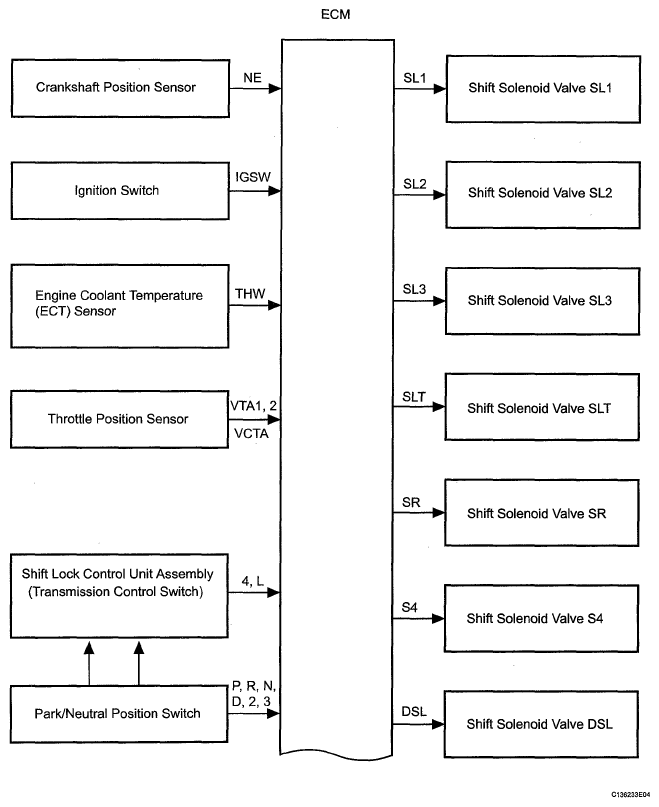

Fig 1: Automatic Transaxle System Diagram (1 Of 4)
G05583435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

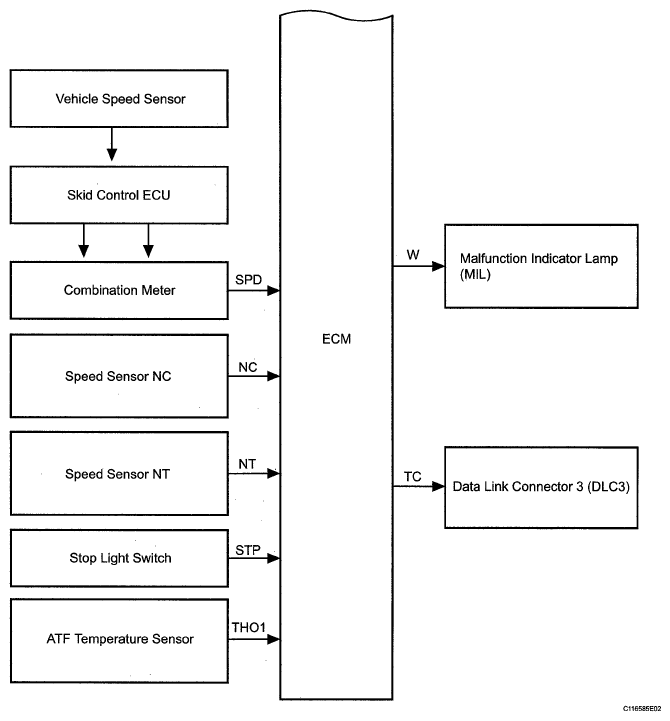

Fig 2: Automatic Transaxle System Diagram (2 Of 4)
G05583436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

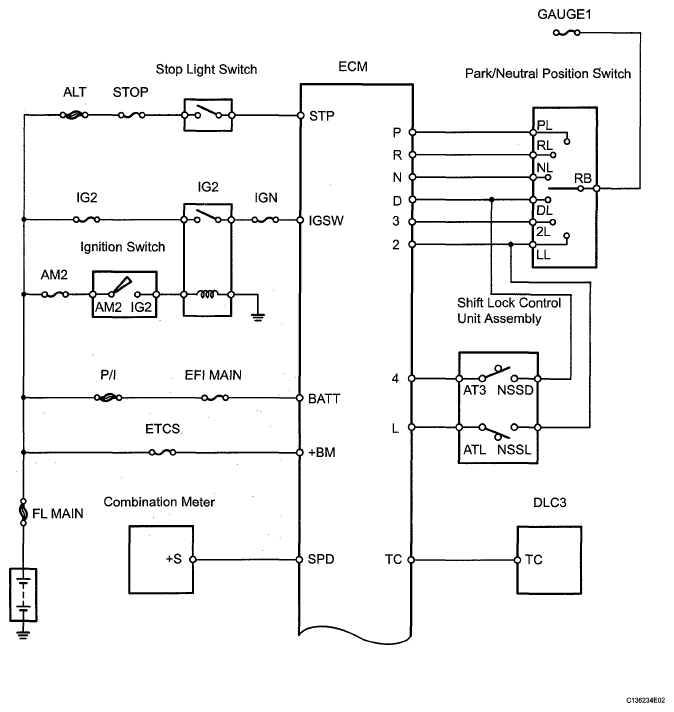

Fig 3: Automatic Transaxle System Diagram (3 Of 4)
G05583437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

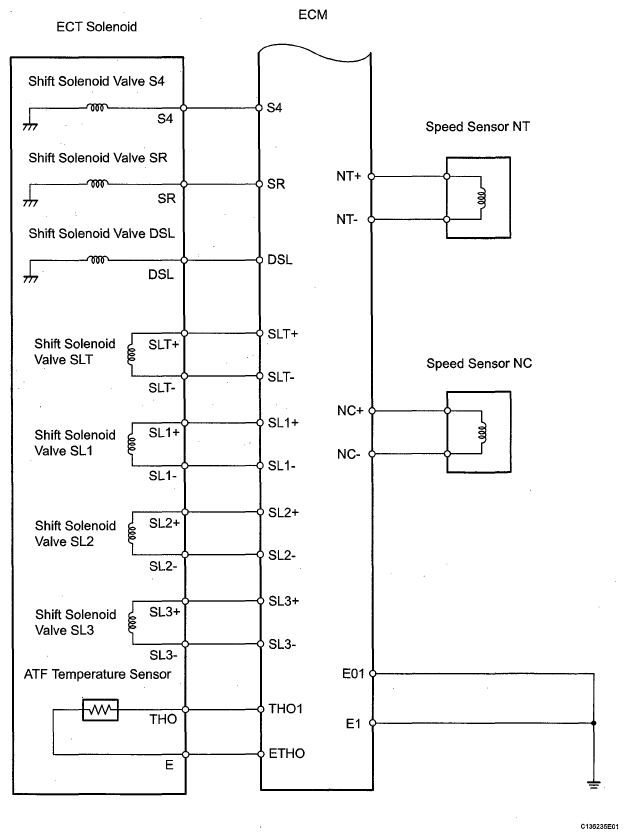

Fig 4: Automatic Transaxle System Diagram (4 Of 4)
G05583438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
