TRANSFER CASE OIL SEAL (for RH Side): Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

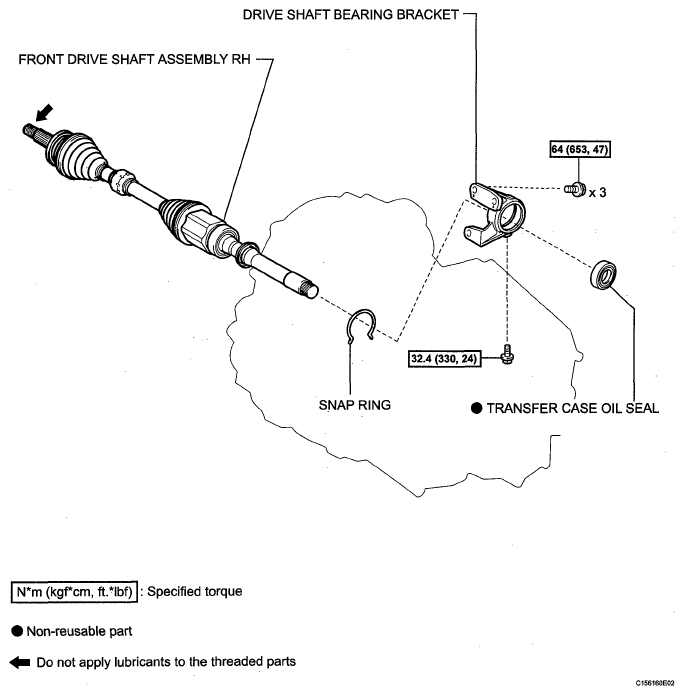

Fig 1: Transfer Case Oil Seal Replacement Components With Torque Specifications (For RH Side)
G05584749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
