Parts Location

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

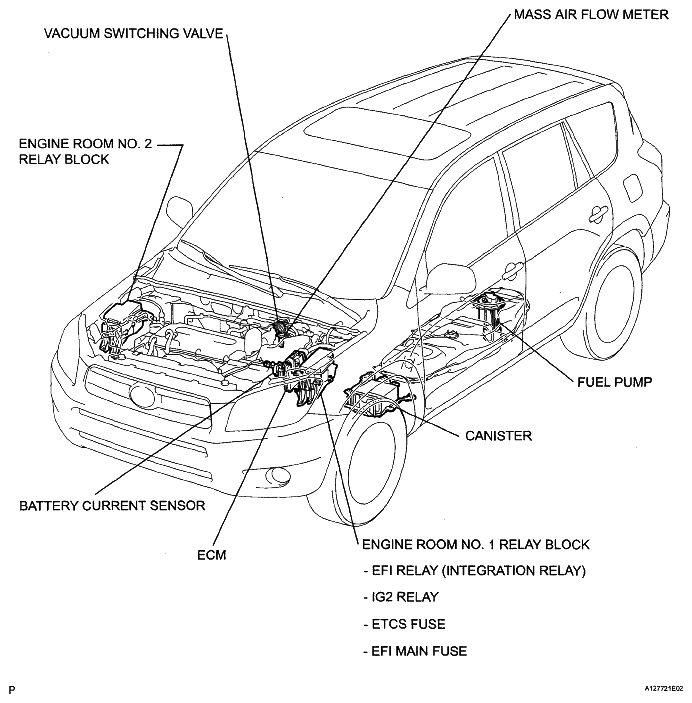

Fig 1: Identifying SFI System Replacement Components Location (1 Of 3)
G05581421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

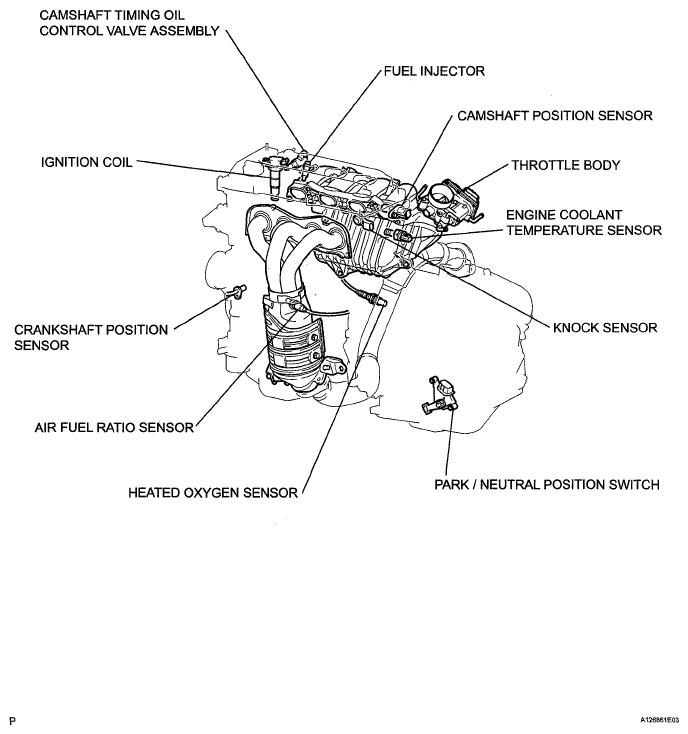

Fig 2: Identifying SFI System Replacement Components Location (2 Of 3)
G05581422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

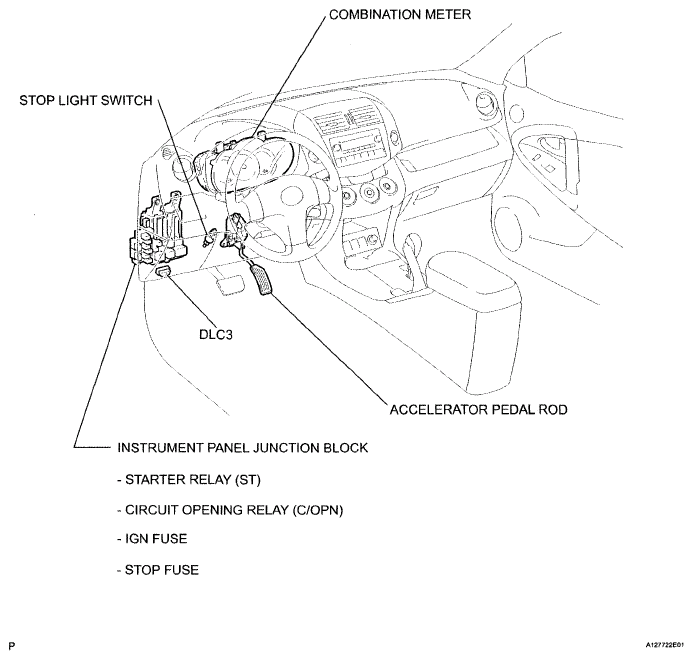

Fig 3: Identifying SFI System Replacement Components Location (3 Of 3)
G05183436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
