ECM Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

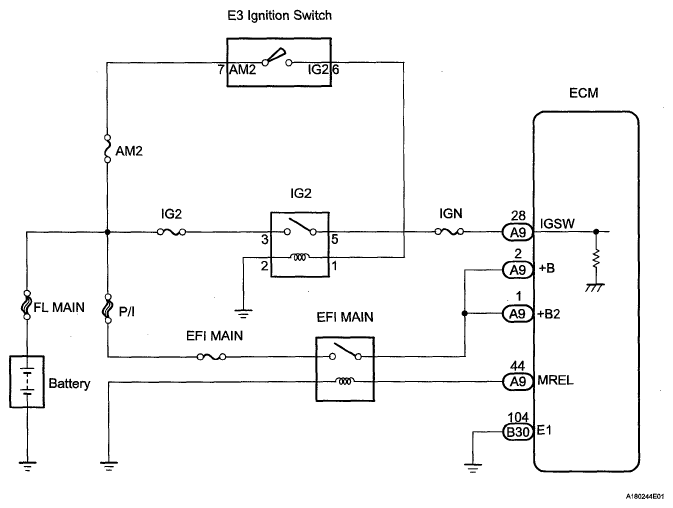

Fig 1: ECM Power Source - Wiring Diagram
G05581700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
