Inspection Procedure

HINT:

Read freeze frame data using Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. CHECK OPERATION OF SPEEDOMETER
   1. Drive the vehicle and check whether the operation of the speedometer in the combination meter is normal.

      HINT:

      • The vehicle speed sensor is operating normally if the speedometer reading is normal.
      • If the speedometer does not operate, check it by following the procedure described in Speedometer Malfunction (see SPEEDOMETER MALFUNCTION ).

   NG: GO TO MALFUNCTION IN SPEEDOMETER

   OK: Go to Next Step

2. READ VALUE USING TECHSTREAM (VEHICLE SPD)
   1. Connect Techstream to the DLC3.
   2. Turn the ignition switch ON.
   3. Turn the tester ON.
   4. Select the following menu items: Powertrain / Engine and ECT / Data List / Vehicle Speed.
   5. Drive the vehicle.
   6. Read the value displayed on the tester.

      OK: Vehicle speeds displayed on tester and speedometer display are equal.

   OK: CHECK FOR INTERMITTENT PROBLEMS

   NG: Go to Next Step

3. CHECK COMBINATION METER ASSEMBLY (+S VOLTAGE)
   1. Disconnect the E19 combination meter connector.
   Fig 1: Identifying Combination Meter Connector Terminals
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Turn the ignition switch ON.
   3. Measure the voltage between the terminal of the combination meter and the body ground.

      Standard voltage

      VOLTAGE SPECIFICATION



      Tester Connections	Specified Conditions
      E19-39 (+S) - Body ground	4.5 to 5.5 V

   4. Reconnect the combination meter connector.

   NG:  Go to step  5

   OK: Go to Next Step

4. CHECK COMBINATION METER ASSEMBLY (SPD SIGNAL WAVEFORM)
   1. Shift the transmission gear selector lever to the neutral position.
   2. Jack up the vehicle.
   3. Turn the ignition switch ON.
   4. Check the voltage between the terminal of the combination meter and the body ground while the wheel is turned slowly.

      Standard voltage

      VOLTAGE SPECIFICATION



      Tester Connections	Specified Conditions
      E19-39 (+S) - Body ground	Voltage generated intermittently

      Fig 2: Identifying Combination Meter Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The output voltage should fluctuate up and down, similarly to the diagram, when the wheel is turned slowly.

   NG: REPLACE COMBINATION METER ASSEMBLY

   OK: Go to Next Step

5. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - ECM)
   1. Disconnect the E19 combination meter connector.

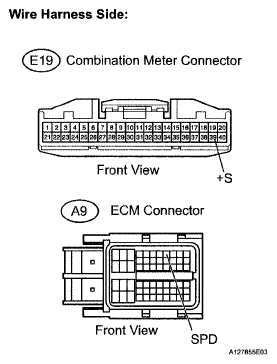

   Fig 3: Identifying Combination Meter And ECM Connector Terminals
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect the A9 ECM connector.
   3. Check the resistance.

      Standard resistance (check for open)

      RESISTANCE SPECIFICATION



      Tester Connections	Specified Conditions
      E19-39 (+S) - A9-8 (SPD)	Below 1 Ω

      Standard resistance (check for short)

      RESISTANCE SPECIFICATION



      Tester Connections	Specified Conditions
      E19-39 (+S) or A9-8 (SPD) - Body ground	10 kΩ or higher

   4. Reconnect the combination meter connector.
   5. Reconnect the ECM connector.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE ECM
