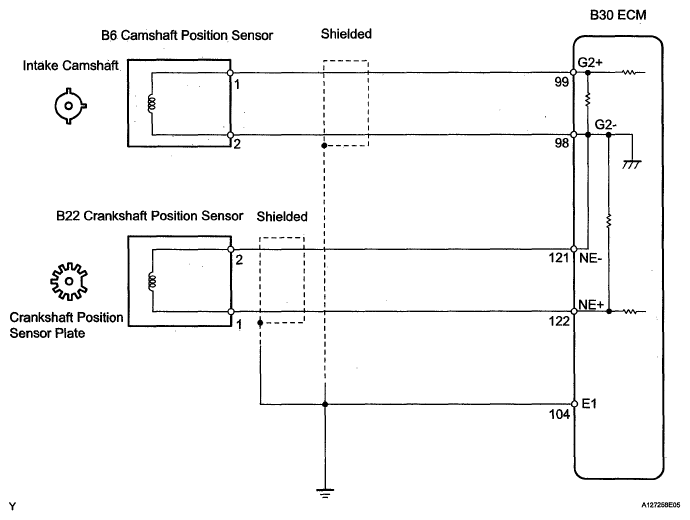

DTC P0335 Crankshaft Position Sensor "A" Circuit; DTC P0339 Crankshaft Position Sensor "A" Circuit Intermittent: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
