Park / Neutral Position Switch: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

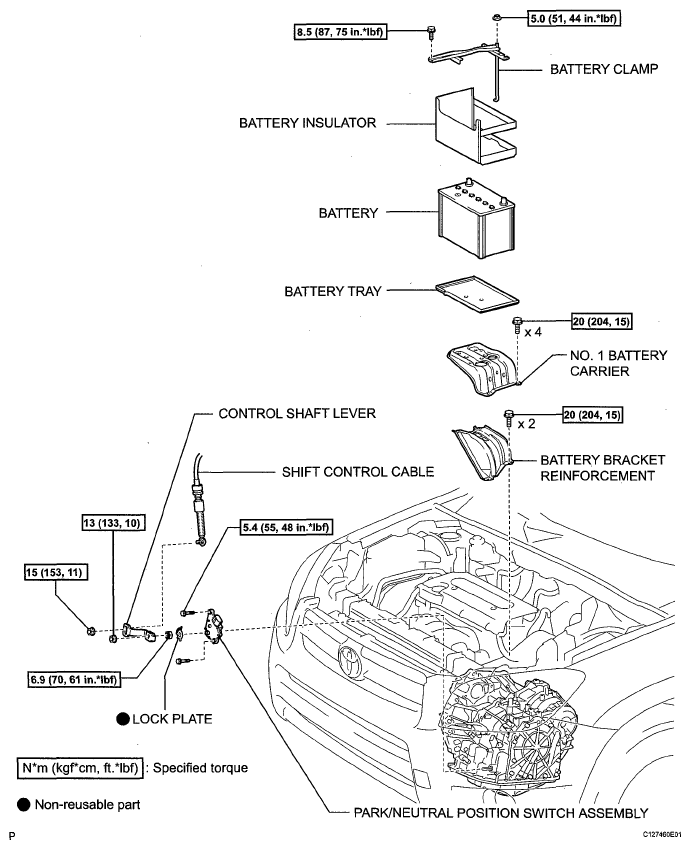

Fig 1: Park / Neutral Position Switch Replacement Components With Torque Specifications
G05582268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
