Floor Shift Assembly: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

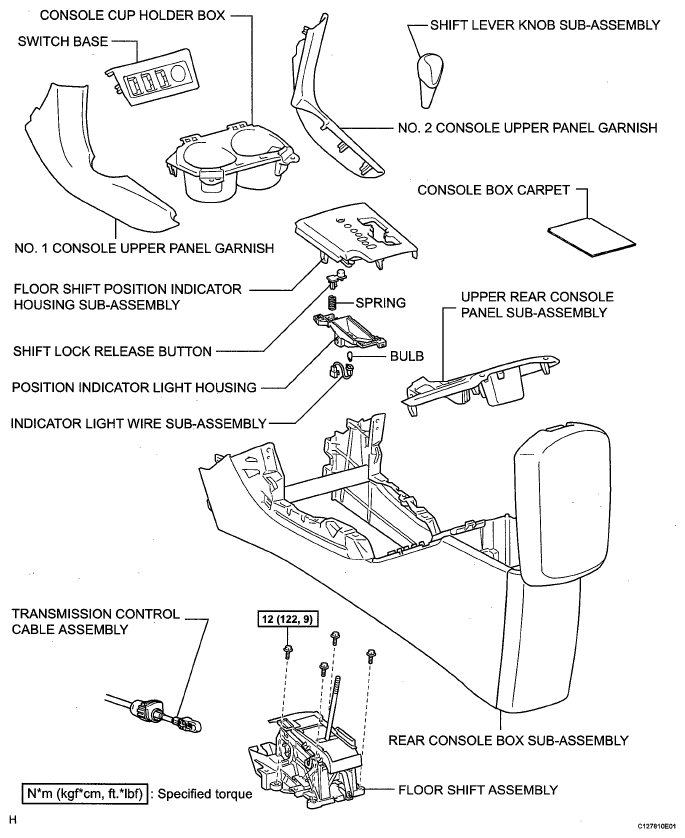

Fig 1: Identifying Floor Shift Assembly Replacement Components With Torque Specification (1 Of 2)
G05582343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

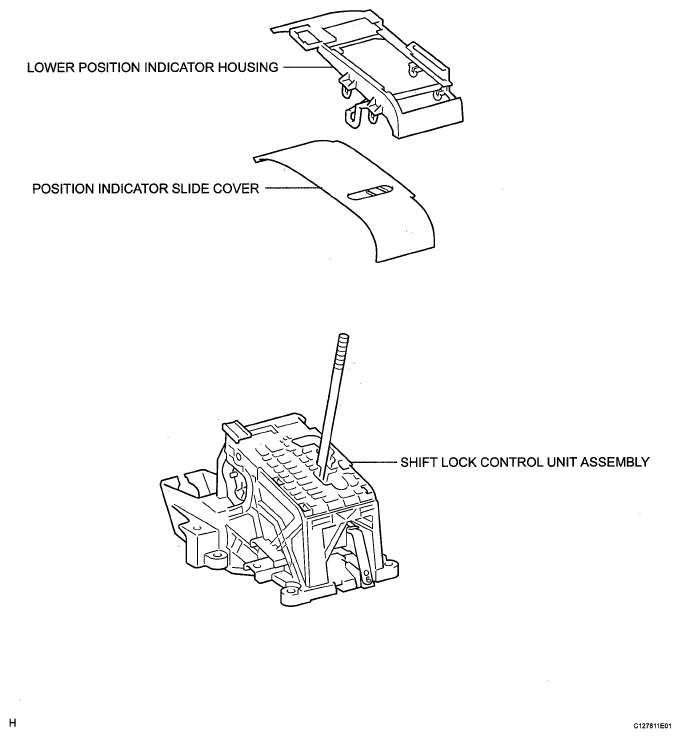

Fig 2: Identifying Floor Shift Assembly Replacement Components (2 Of 2)
G05582344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
