Terminals Of ECM

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK ECM

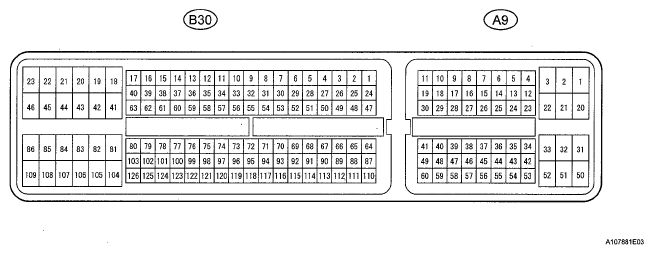

    Fig 1: Identifying Terminals Of ECM
    G05582810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage of the ECM connector.

      HINT:

      Each ECM terminal's standard voltage is shown in the table below.

      In the table, first follow the information under "Condition". Look under "Symbols (Terminal No.)" for the terminals to be inspected. The standard voltage between the terminals is shown under "Specified Condition".

      Use the illustration above as a reference for the ECM terminals.

      TERMINALS DESCRIPTION AND SPECIFIED CONDITION

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      P (B30-73) - E1 (B30-104) L-BR P shift position switch signal Ignition switch ON and transfer shift lever on P 10 to 14 V
      P (B30-73) - E1 (B30-104) L-BR P shift position switch signal Ignition switch ON and transfer shift lever not on P Below 1 V
      R (B30-53) - E1 (B30-104) R-BR R shift position switch signal Ignition switch ON and transfer shift lever on R 10 to 14 V
      R (B30-53) - E1 (B30-104) R-BR R shift position switch signal Ignition switch ON and transfer shift lever not on R Below 1 V
      N (B30-54) - E1 (B30-104) Y-BR N shift position switch signal Ignition switch ON and transfer shift lever on N 10 to 14 V
      N (B30-54) - E1 (B30-104) Y-BR N shift position switch signal Ignition switch ON and transfer shift lever not on N Below 1 V
      D (B30-56) - E1 (B30-104) B-BR D shift position switch signal Ignition switch ON and transfer shift lever on D or 3 10 to 14 V
      D (B30-56) - E1 (B30-104) B-BR D shift position switch signal Ignition switch ON and transfer shift lever not on D or 3 Below 1 V
      3 (A9-26) - E1 (B30-104) P-BR 3 shift position switch signal Ignition switch ON and transfer shift lever on 3 10 to 14 V
      3 (A9-26) - E1 (B30-104) P-BR 3 shift position switch signal Ignition switch ON and transfer shift lever not on 3 Below 1 V
      2 (B30-55) - E1 (B30-104) P-BR 2 shift position switch signal Ignition switch ON and transfer shift lever on 2 and L 10 to 14 V
      2 (B30-55) - E1 (B30-104) P-BR 2 shift position switch signal Ignition switch ON and transfer shift lever not on 2 and L Below 1 V
      L (B30-74) - E1 (B30-104) LG-BR L shift position switch signal Ignition switch ON and transfer shift lever on L 10 to 14 V
      L (B30-74) - E1 (B30-104) LG-BR L shift position switch signal Ignition switch ON and transfer shift lever not on L Below 1 V
      STP (A9-36) - E1 (B30-104) L-BR Stop light switch signal Brake pedal is depressed Between 10 V and 14 V
      STP (A9-36) - E1 (B30-104) L-BR Stop light switch signal Brake pedal is released Below 1 V
      SL1+ (B30-57) - SL1- (B30-77) V-P SL1 solenoid signal Engine idle speed Pulse generation (see  bwaveform 1)
      SL1+ (B30-57) - SL1- (B30-77) V-P SL1 solenoid signal Ignition switch ON Pulse generation (see  bwaveform 1)
      SL1+ (B30-57) - SL1- (B30-77) V-P SL1 solenoid signal 1st gear Pulse generation (see  bwaveform 1)
      SL1+ (B30-57) - SL1- (B30-77) V-P SL1 solenoid signal Not on 1st gear Below 1 V
      SL2+ (B30-58) - SL2- (B30-59) Y-L SL2 solenoid signal Engine idle speed Pulse generation (see  cwaveform 2)
      SL2+ (B30-58) - SL2- (B30-59) Y-L SL2 solenoid signal Ignition switch ON Pulse generation (see  cwaveform 2)
      SL2+ (B30-58) - SL2- (B30-59) Y-L SL2 solenoid signal 1st or 2nd gear Pulse generation (see  cwaveform 2)
      SL2+ (B30-58) - SL2- (B30-59) Y-L SL2 solenoid signal 3rd or 4th gear Below 1 V
      DSL (B30-79) - E01 (B30-45) G-W-B DSL solenoid signal Vehicle speed 65 km/h (40 mph), lock-up (ON to OFF) Below 1 V
      DSL (B30-79) - E01 (B30-45) G - W-B DSL solenoid signal Vehicle driving under lockup position Pulse generation (see  dwaveform 3)
      SLT+ (B30-76) - SLT- (B30-75) R-GR SLT solenoid signal Engine idle speed Pulse generation (see  ewaveform 4)
      S4 (B30-78) - E01 (B30-45) W-W-B S4 solenoid signal Ignition switch ON Below 1 V
      S4 (B30-78) - E01 (B30-45) W-W-B S4 solenoid signal 4th gear 10 to 14 V
      S4 (B30-78) - E01 (B30-45) W-W-B S4 solenoid signal Not on 4th gear Below 1 V
      THO1 (B30-72) - ETHO (B30-95) LG-BR ATF temperature sensor signal ATF temperature: 115°C (239°F) or more Below 1.5 V
      NT+ (B30-125) - NT- (B30-124) W-R Speed sensor (NT) signal Vehicle speed 20 km/h (12 mph) Pulse generation (see  fwaveform 5)
      NC+ (B30-101) - NC- (B30-102) R-W Speed sensor (NC) signal Vehicle speed 30 km/h (19 mph): (3rd gear)
      Engine speed 1,400 rpm      		 Pulse generation (see  gwaveform 6)
    2. Using an oscilloscope, check the waveform 1.

      Waveform 1 (Reference)

      OSCILLOSCOPE WAVEFORM REFERENCE

      Item Content
      Symbols (Terminal No.) SL1+ (B30-57) - SL1- (B30-77)
      Tool Setting 5 V/DIV., 1 msec./DIV.
      Condition Engine idle speed
      Fig 2: Waveform Graph - 1
      G05196970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using an oscilloscope, check the waveform 2.

      Waveform 2 (Reference)

      OSCILLOSCOPE WAVEFORM REFERENCE

      Item Content
      Symbols (Terminal No.) SL2+ (B30-58) - SL2- (B30-59)
      Tool Setting 5 V/DIV., 1 msec/DIV.
      Condition Engine idle speed
      Fig 3: Waveform Graph - 2
      G05196970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using an oscilloscope, check the waveform 3.

      Waveform 3 (Reference)

      OSCILLOSCOPE WAVEFORM REFERENCE

      Item Content
      Symbols (Terminal No.) DSL (B30-79) - E01 (B30-45)
      Tool Setting 10 V/DIV., 100 msec./DIV.
      Condition Vehicle speed 65 km/h (40 mph), lock-up (ON to OFF)
      Fig 4: Waveform Graph - 3
      G05387963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using an oscilloscope, check the waveform 4.

      Waveform 4 (Reference)

      OSCILLOSCOPE WAVEFORM REFERENCE

      Item Content
      Symbols (Terminal No.) SLT+ (B30-76) - SLT- (B30-75)
      Tool Setting 5 V/DIV., 1 msec./DIV.
      Condition Engine idle speed
      Fig 5: Waveform Graph - 4
      G05196970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using an oscilloscope, check the waveform 5.

      Waveform 5 (Reference)

      OSCILLOSCOPE WAVEFORM REFERENCE

      Item Content
      Symbols (Terminal No.) NT+ (B30-125) - NT- (B30-124)
      Tool Setting 5 V/DIV., 0.5 msec./DIV.
      Condition Vehicle speed 20 km/h (12 mph)
      Fig 6: Waveform Graph - 5
      G05387965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Using an oscilloscope, check the waveform 6.

      Waveform 6 (Reference)

      OSCILLOSCOPE WAVEFORM REFERENCE

      Item Content
      Symbols (Terminal No.) NC+ (B30-101) - NC- (B30-102)
      Tool Setting 1 V/DIV., 1 msec./DIV.
      Condition Vehicle speed 30 km/h (19 mph): (3rd gear) Engine speed 1,400 rpm
      Fig 7: Waveform Graph - 6
      G05387966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
