System Diagram

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

The configuration of the electronic control system in the U140F automatic transaxle is as shown in the following chart.

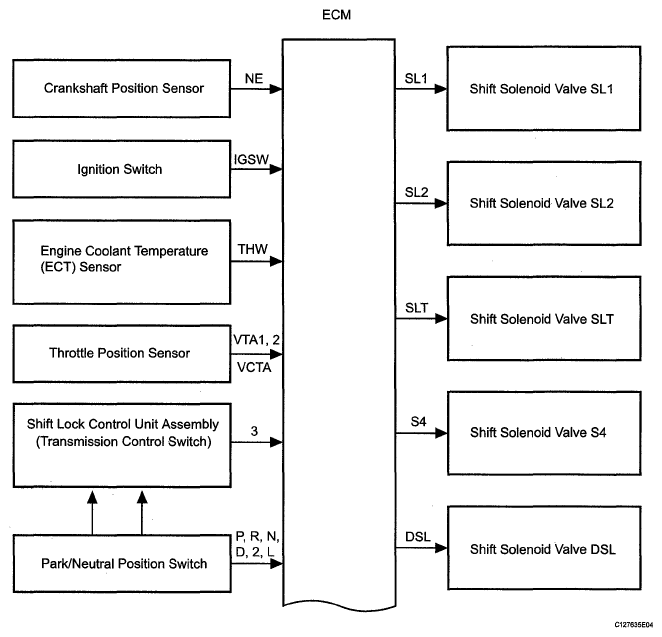

Fig 1: Identifying Automatic Transaxle - System Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

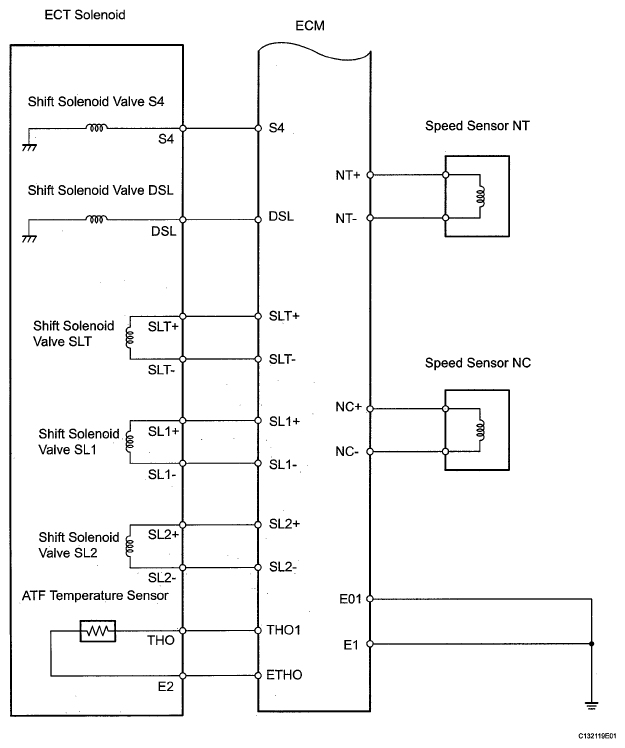

Fig 2: Identifying Automatic Transaxle - System Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

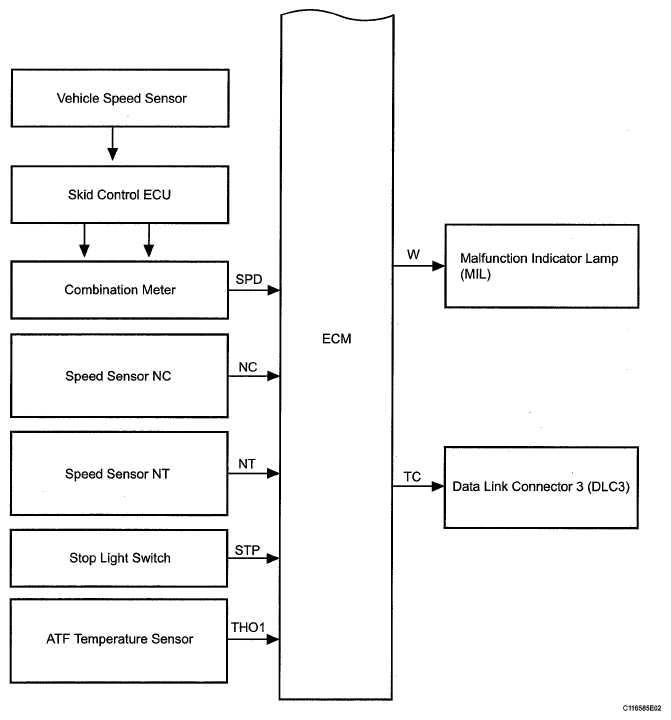

Fig 3: Identifying Automatic Transaxle - System Diagram (3 Of 4)

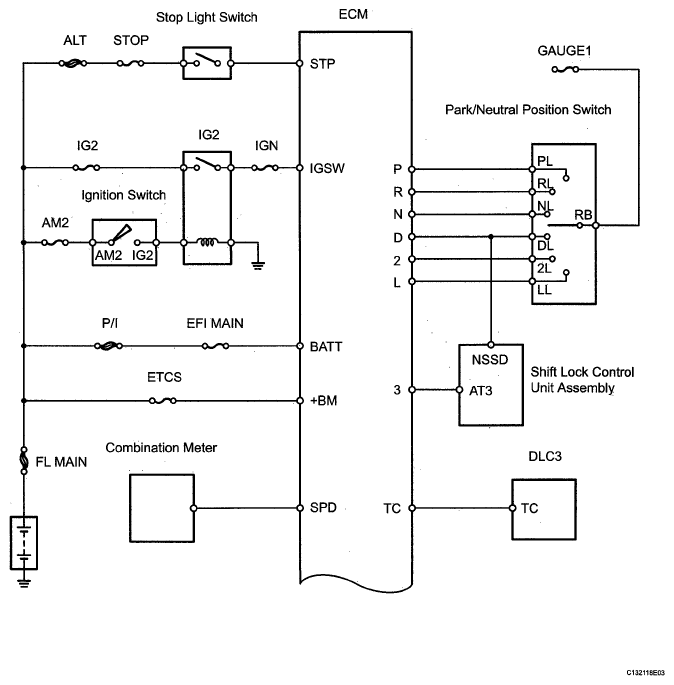

Fig 4: Identifying Automatic Transaxle - System Diagram (4 Of 4)
