Manual Shifting Test

The purpose of this manual shifting test is to determine whether a problem is caused by either mechanical or electrical factors. Disconnecting the transmission wire disables electrically-controlled automatic gear shifting. In this case, operating the shift lever is the only way to shift the transaxle gear. If the gear is not changed by shift lever operation, it is assumed that there is a mechanical problem.

1. Turn the ignition switch OFF.
2. Disconnect the transmission wire connector.

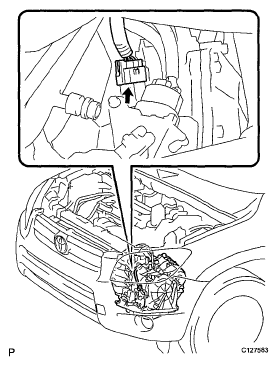

Fig 1: Identifying Transmission Wire Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Warm up the engine.
4. Drive the vehicle.
5. Check the transaxle operation when the shift lever is moved into L, 2 and D positions.

   Standard:

   SHIFT LEVER OPERATION



   Shift Lever	Operation
   L to 2	No shift (Not change)
   2 to D	No shift (Not change)
   D to 2	No shift (Not change)
   2 to L	No shift (Not change)

6. Turn the ignition switch OFF.
7. Connect the transmission wire connector.
8. Clear DTCs (see DTC CHECK / CLEAR  ).

   HINT:

   When the transmission wire is disconnected, the transaxle gear will be set as listed below.

   TRANSAXLE GEAR SETTING



   Shift Lever	Gear
   P	Parking
   R	Reverse
   N	Neutral
   D	3rd
   2	3rd
   L	3rd
