Section 225 (Air Conditioning): Condenser: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Condenser Components (1 Of 2)

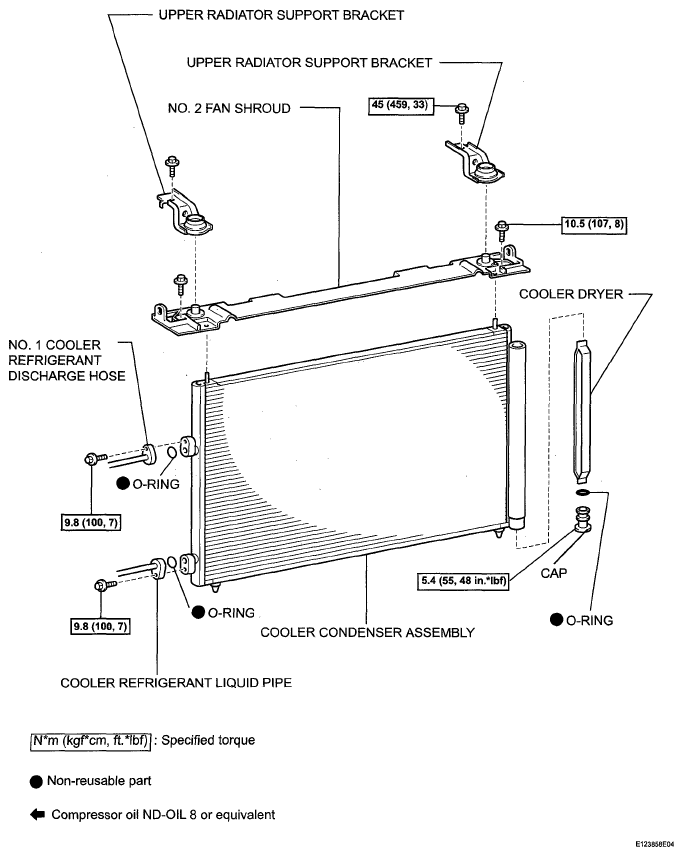

Fig 2: Condenser Replacement Components With Torque Specifications (2 Of 2)
