COMPRESSOR AND PULLEY (for 2AZ-FE): Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

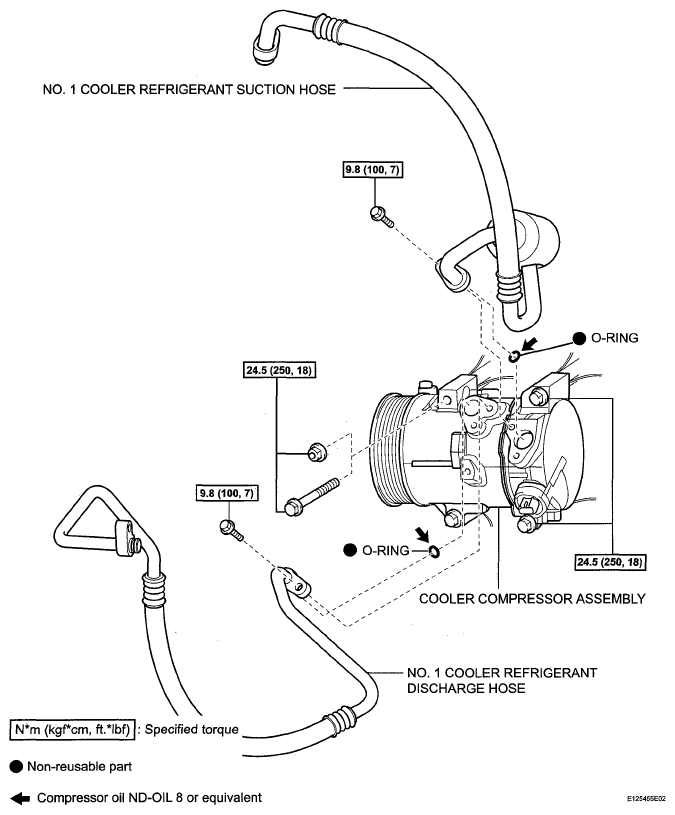

Fig 1: Compressor And Pulley Replacement Components With Torque Specifications (For 2AZ-FE)
G05585430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
