System Description

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GENERAL
    1. The air conditioning system has the following features:
      • The air conditioning amplifier controls the operation of parts, such as the A/C compressor, automatically in accordance with the operating conditions of the air conditioning system.
  2. MODE POSITION AND DAMPER OPERATION

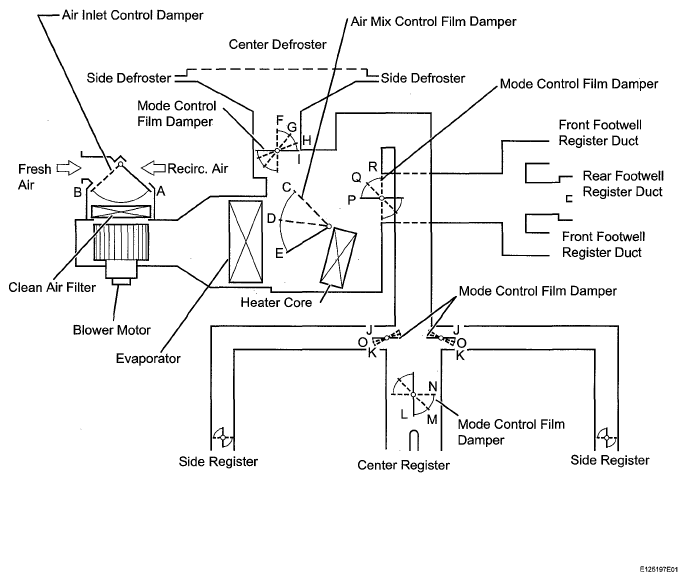

    Fig 1: Mode Position And Damper Operation Diagram
    G05585268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    DAMPER POSITION OPERATION CHART

    Control Damper Control Position Damper Position Operation
    Air Inlet Control Damper FRESH A Brings in fresh air.
    RECIRC B Recirculates internal air.
    Air Mix Control Film Damper COOL to HOT C, D, E Varies the mixture ratio of fresh air and the recirculation air in order to regulate the temperature continuously from HOT to COOL.
    Mode Control Film Damper FACE 1, J, L, R Air blows out of center registers and side registers.
    BI-LEVEL 1, O, M, Q Air mainly blows out of center registers, side registers, and footwell register ducts.
    FOOT H, K, N, P Air mainly blows out of front and rear footwell register ducts. In addition, air blows out slightly from front and side defrosters, and side registers.
    FOOT/DEF G, K, N, Q Air mainly blows out of front and side defrosters to defrost windshield. Air also blows out from front and rear footwell register ducts, and side registers.
    DEF F, K, N, R Air blows out of front and side defrosters and side registers to defrost windshield.
  3. AIR OUTLET AND AIRFLOW VOLUME
    Fig 2: Identifying Air Outlet And Airflow
    G05585188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The circle size (O) indicates the proportion of the flow volume.

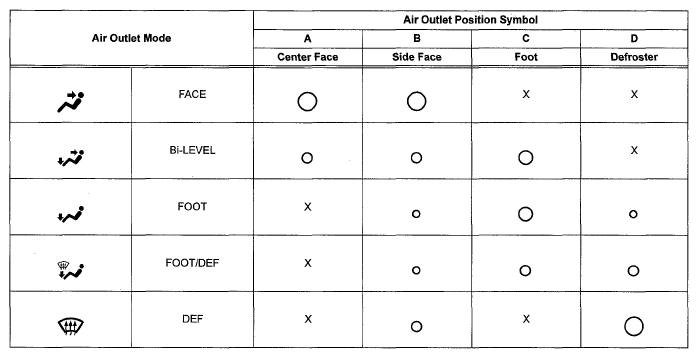

Fig 3: Air Outlet Position Symbol Chart
G05585270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
