Different car
>>
Section 225 (Air Conditioning)
>>
AIR CONDITIONING SYSTEM (for Manual Air Conditioning System)
>>
Parts Location
Parts Location
WARNING:
This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

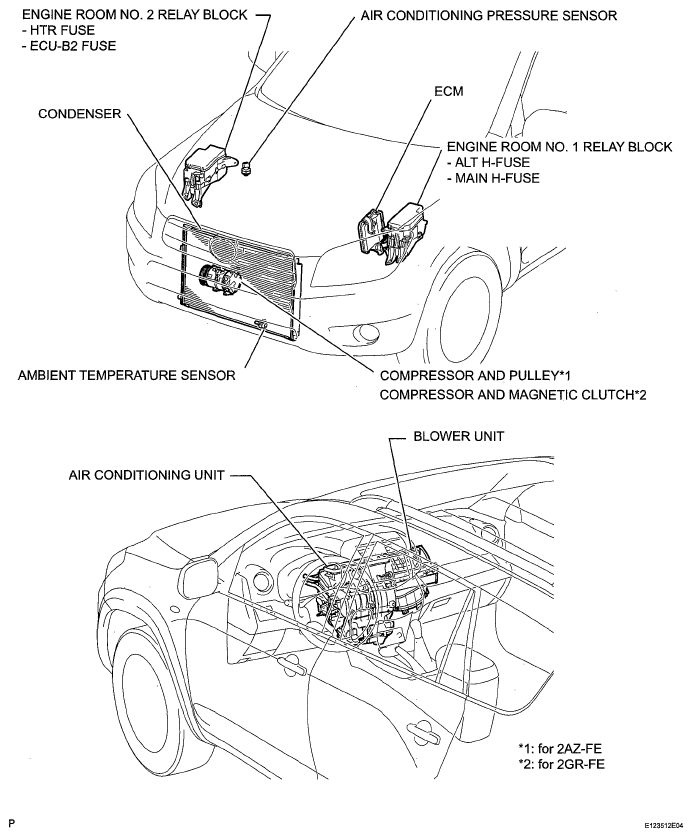

Fig 1: Identifying Air Conditioning System Components Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

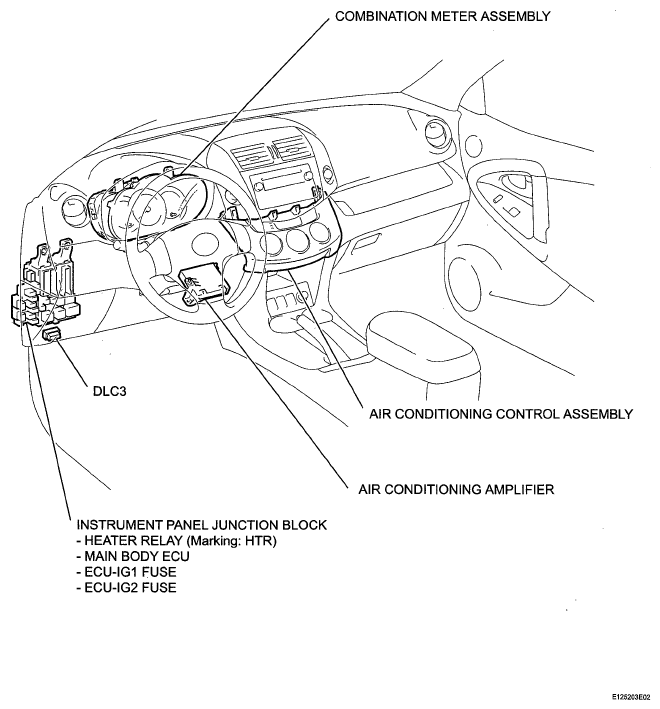

Fig 2: Identifying Air Conditioning System Components Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

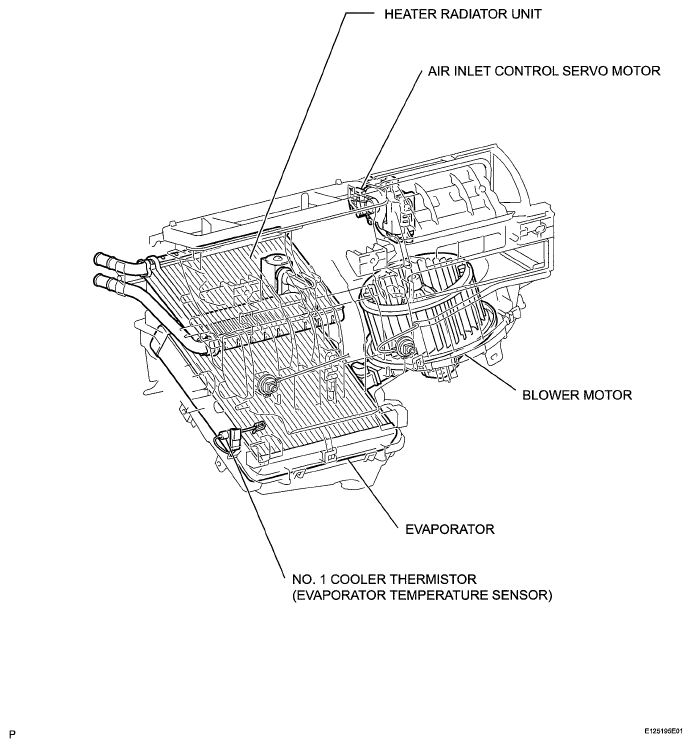

Fig 3: Identifying Air Conditioning System Components Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
