Valve Body Assembly: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Valve Body Assembly Replacement Components (1 Of 2)
G05583537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

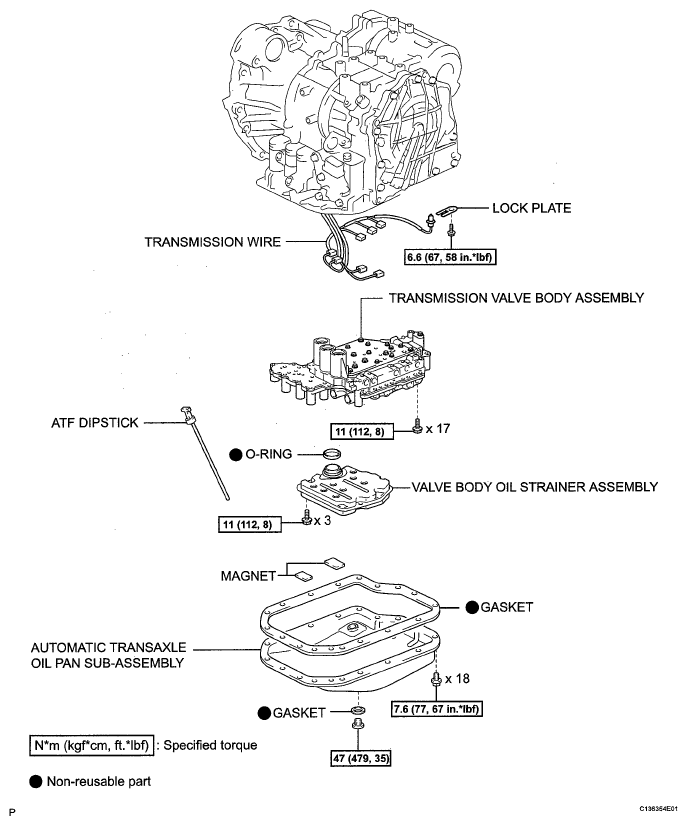

Fig 2: Identifying Valve Body Assembly Replacement Components With Torque Specifications (2 Of 2)
G05583551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
