Transmission Oil Cooler: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT NO. 1 AND NO. 2 TRANSMISSION OIL COOLER HOSES

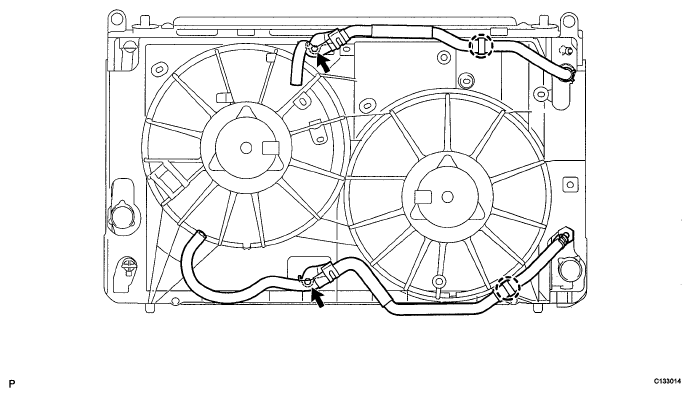

Fig 1: Identifying Transmission Oil Cooler Hoses
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 2 hoses from the 2 No. 1 flexible hose clamps.
2. Detach the 2 claws to open the 2 automatic transmission oil cooler tube clamps.
3. Disconnect the 2 hoses from the radiator.
4. Remove the 2 bolts and 2 No. 1 flexible hose clamps.
5. Remove the 2 automatic transmission oil cooler tube clamps.
6. Disconnect the 2 hoses from the transmission oil filler tube and oil cooler tube.

  Fig 2: Identifying Transmission Oil Filler Tube And Oil Cooler Tube Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT OIL COOLER TUBE SUB-ASSEMBLY
1. Disconnect the oil cooler outlet hose from the oil cooler tube and transaxle.
2. Remove the bolt and oil cooler tube.
Fig 3: Identifying Cooler Tube Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT OIL COOLER OUTLET HOSE
1. Disconnect the oil cooler outlet hose from the transaxle.
DISCONNECT OIL COOLER INLET HOSE
1. Disconnect the hose from the transmission oil filler tube and transaxle, and remove it.

  Fig 4: Identifying Oil Cooler Inlet Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
