Differential Case: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

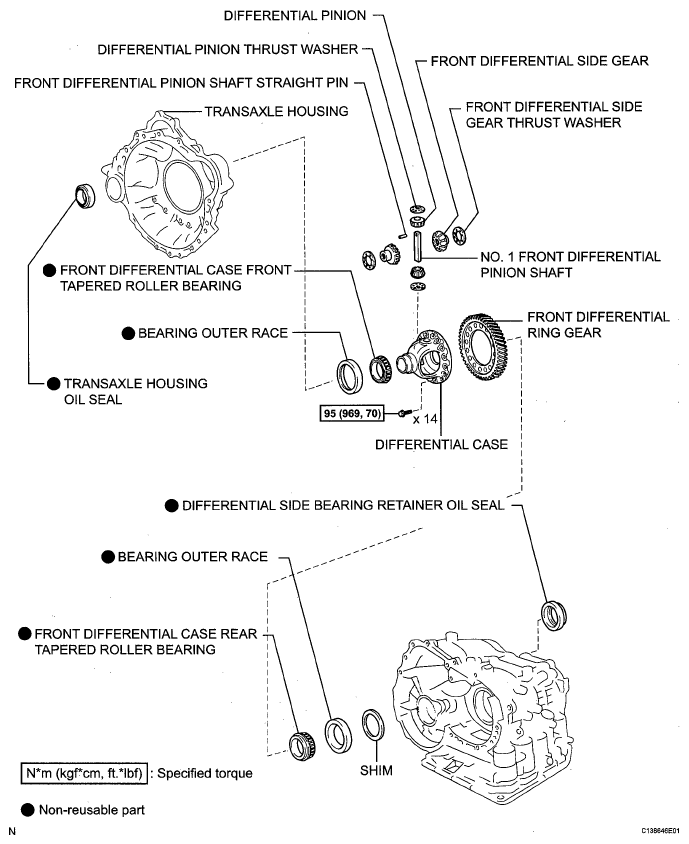

Fig 1: Differential Case Replacement Components With Torque Specifications
G05583405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
