DTC P0300 Random / Multiple Cylinder Misfire Detected; DTC P0301 Cylinder 1 Misfire Detected; DTC P0302 Cylinder 2 Misfire Detected; DTC P0303 Cylinder 3 Misfire Detected; DTC P0304 Cylinder 4 Misfire Detected; DTC P0305 Cylinder 5 Misfire Detected; DTC P0306 Cylinder 6 Misfire Detected: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Wiring diagram of the ignition system.

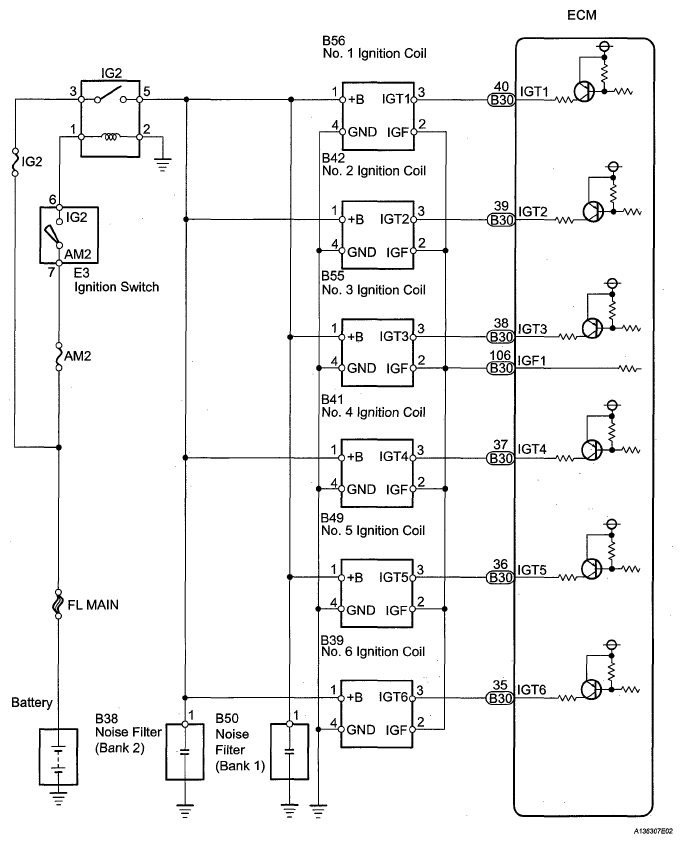

Fig 1: Random / Multiple Cylinder Misfire Detected - Wiring Diagram (1 Of 2)
G05581934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Random / Multiple Cylinder Misfire Detected - Wiring Diagram (2 Of 2)
G05184015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
