Headlight (HI-BEAM) Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

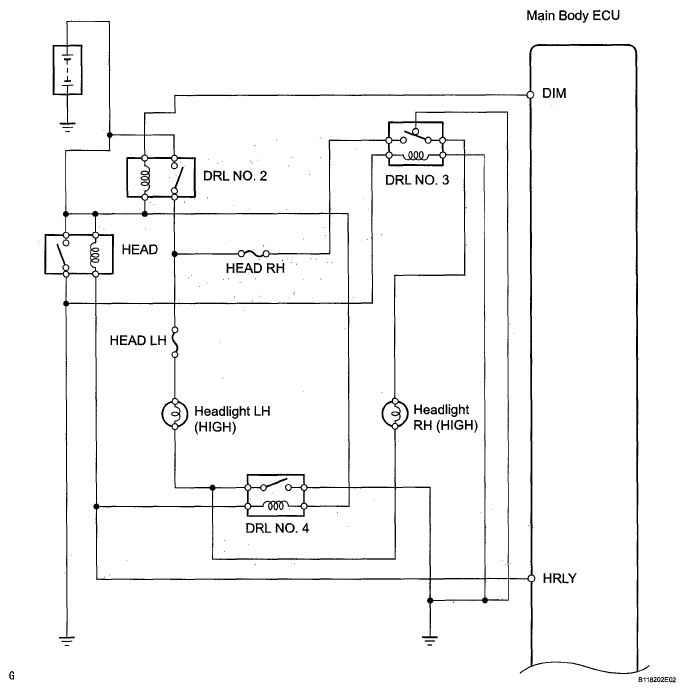

Fig 1: Headlight (HI-BEAM) - Wiring Diagram (1 Of 2)
G05585908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

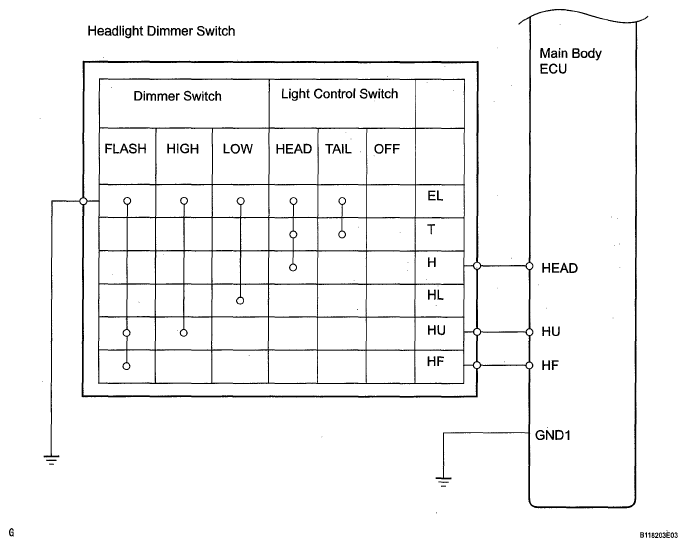

Fig 2: Headlight (HI-BEAM) - Wiring Diagram (2 Of 2)
G05585909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
