Curtain Shield Airbag Assembly: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it (see PRECAUTION ).

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE ROOF HEADLINING ASSEMBLY (See REMOVAL )
REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH
1. Disconnect the connector.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

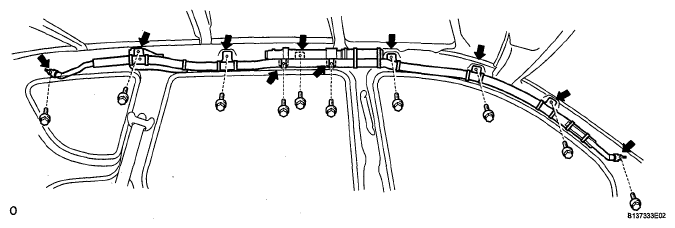

2. Remove the 10 bolts and curtain shield airbag.
REMOVE ROOF SIDE RAIL BRACKET LH
1. Remove the 2 bolts and bracket.

  Fig 2: Identifying Roof Side Rail Bracket LH Bolts
