Parts Location

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

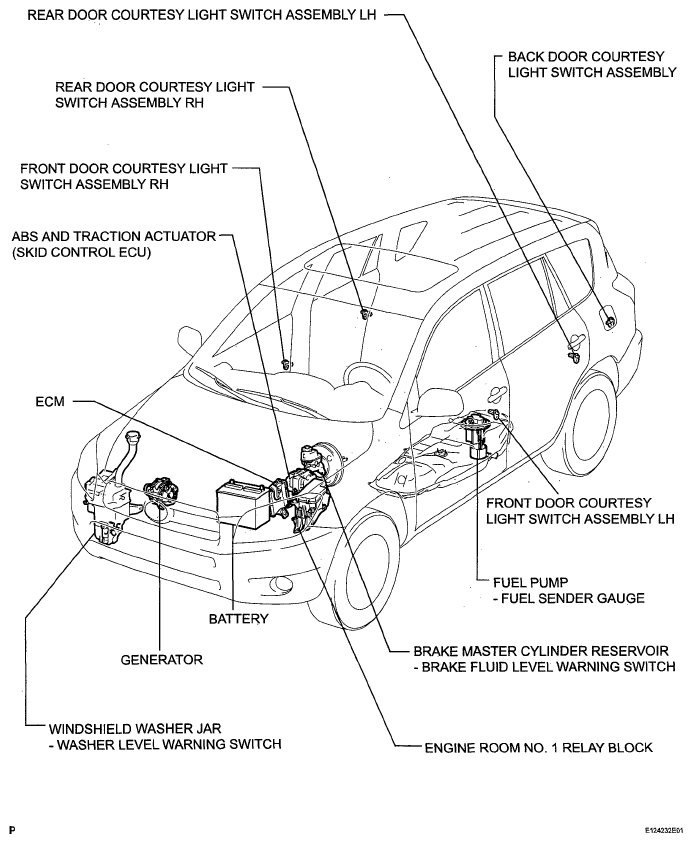

Fig 1: Identifying Meter / Gauge System Parts Location (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

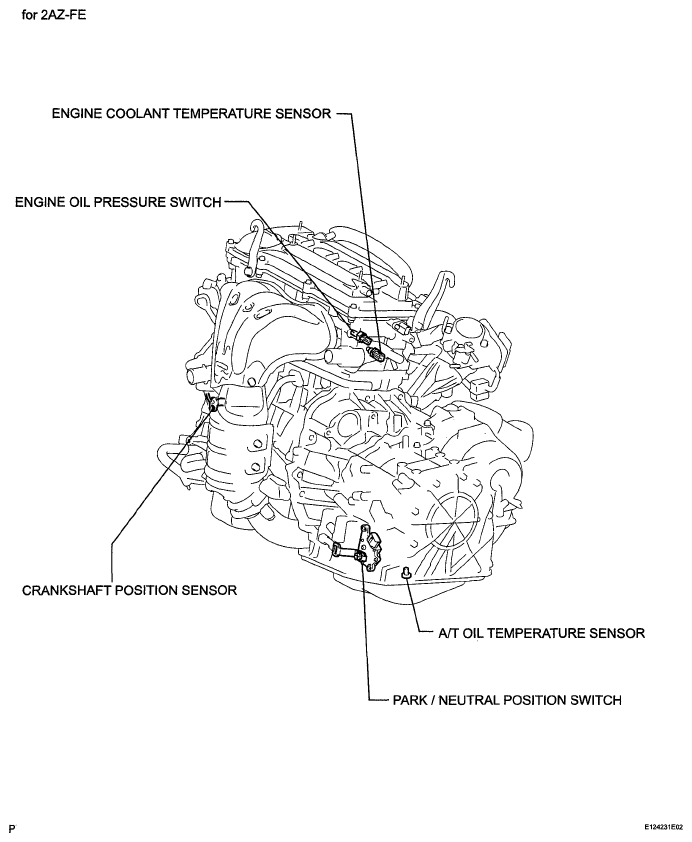

Fig 2: Identifying Meter / Gauge System Parts Location (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

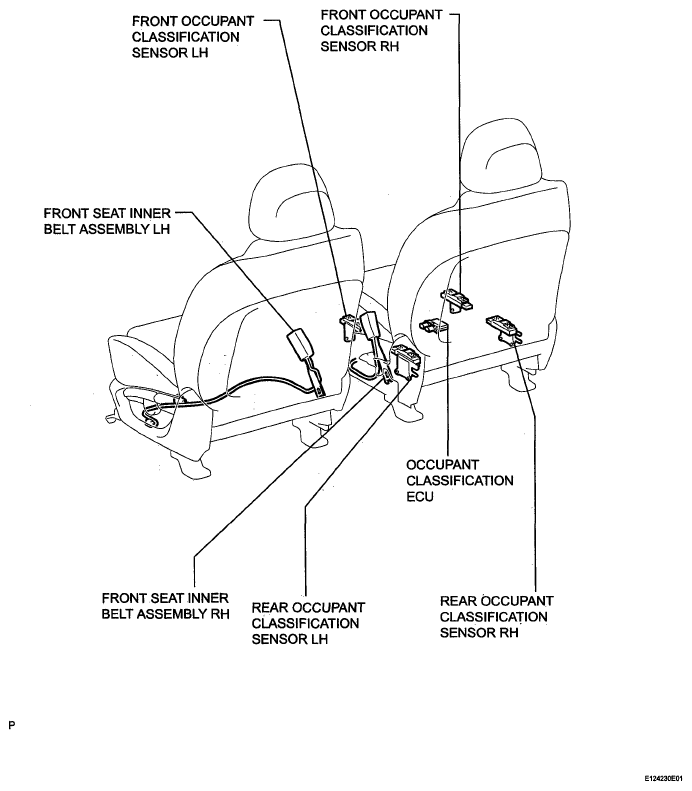

Fig 3: Identifying Meter / Gauge System Parts Location (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

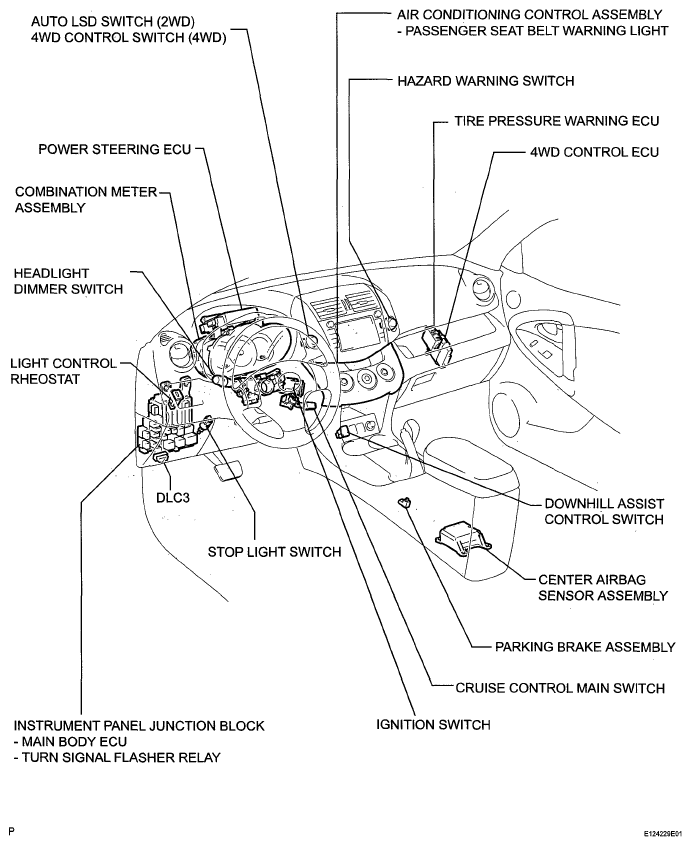

Fig 4: Identifying Meter / Gauge System Parts Location (4 Of 5)

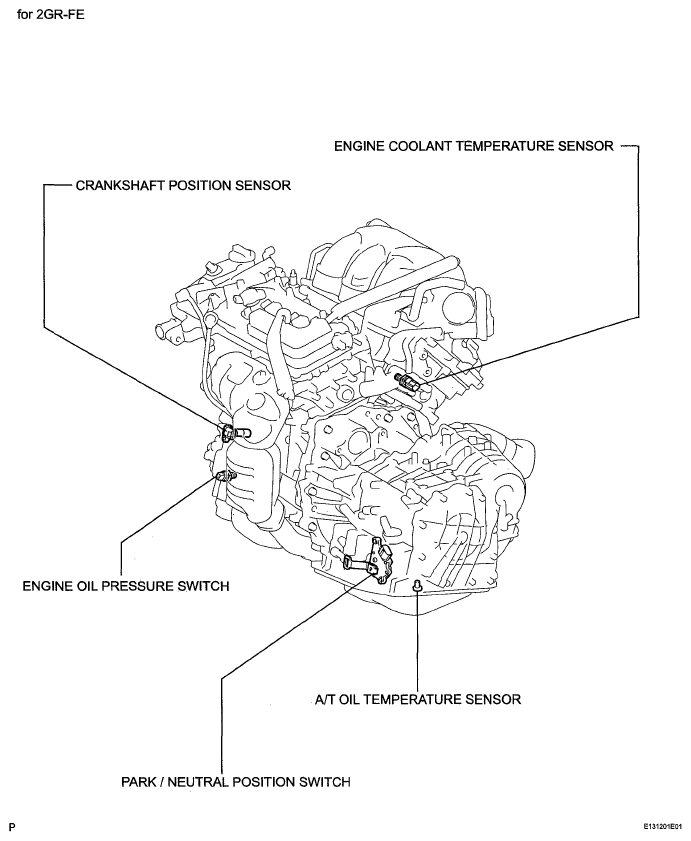

Fig 5: Identifying Meter / Gauge System Parts Location (5 Of 5)
