REAR SEAT OUTER BELT ASSEMBLY (for Hatchback 5 Door): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

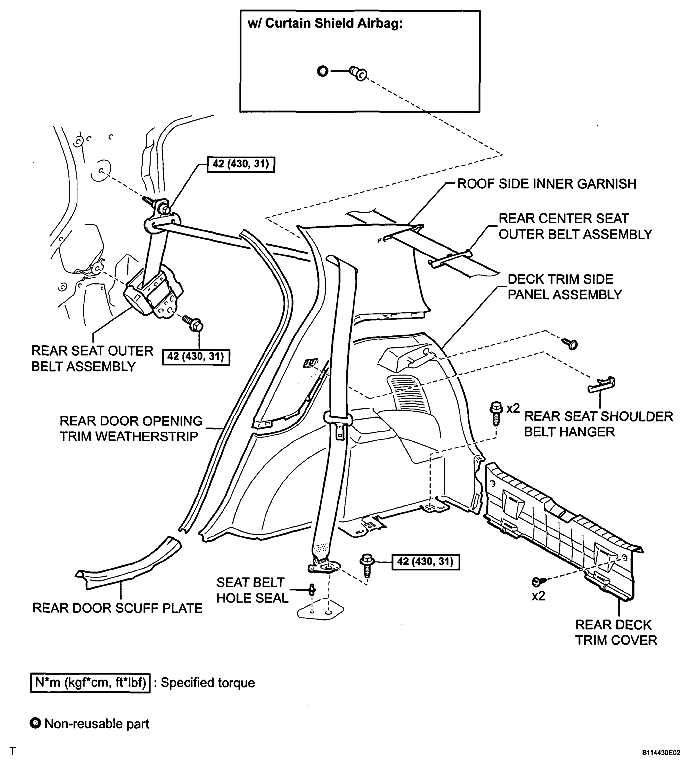

Fig 1: Identifying Rear Seat Outer Belt Assembly Components - Hatchback 5 Door (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front Seat Outer Belt Assembly Replacement Components With Torque Specifications - Hatchback 3 Door (3 Of 3)

Fig 3: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications - Hatchback 5 Door (3 Of 3)
