REAR SEAT OUTER BELT ASSEMBLY (for Hatchback 3 Door): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Rear Speaker Components - For Hatchback 3 Door (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front Seat Outer Belt Assembly Replacement Components With Torque Specifications - Hatchback 3 Door (3 Of 3)

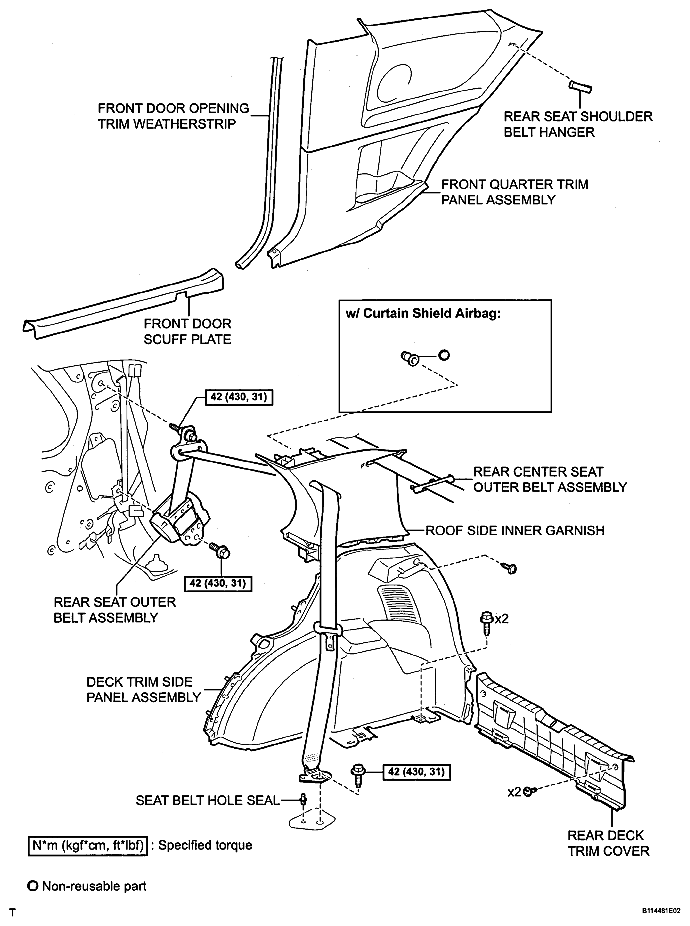

Fig 3: Rear Seat Outer Belt Assembly With Torque Specifications - Hatchback 3 Door (3 Of 2)
