REAR SEAT INNER BELT ASSEMBLY (for Hatchback RH Side): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

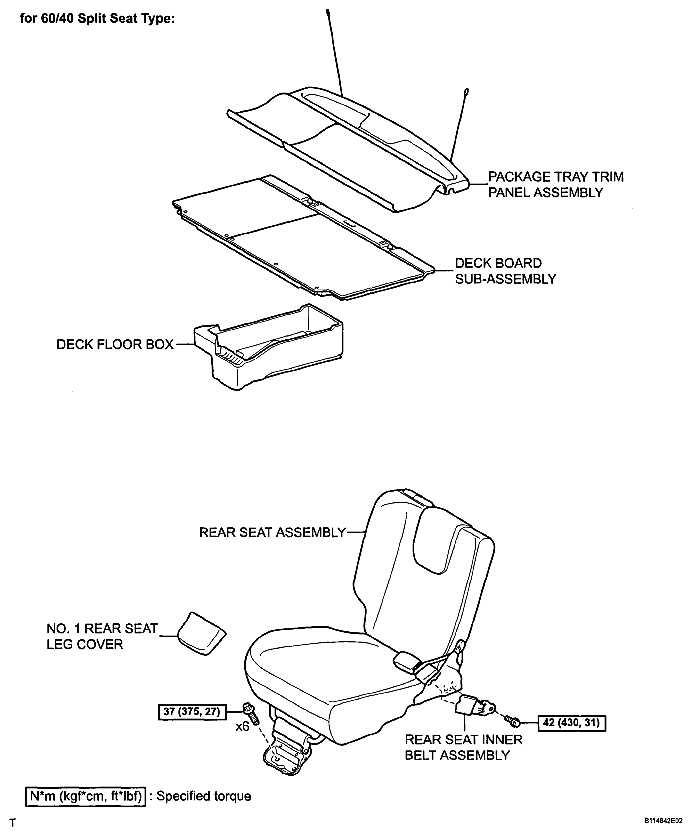

Fig 1: Rear Seat Inner Belt Assembly Replacement Components With Torque Specifications - Hatchback RH Side (1 Of 2)

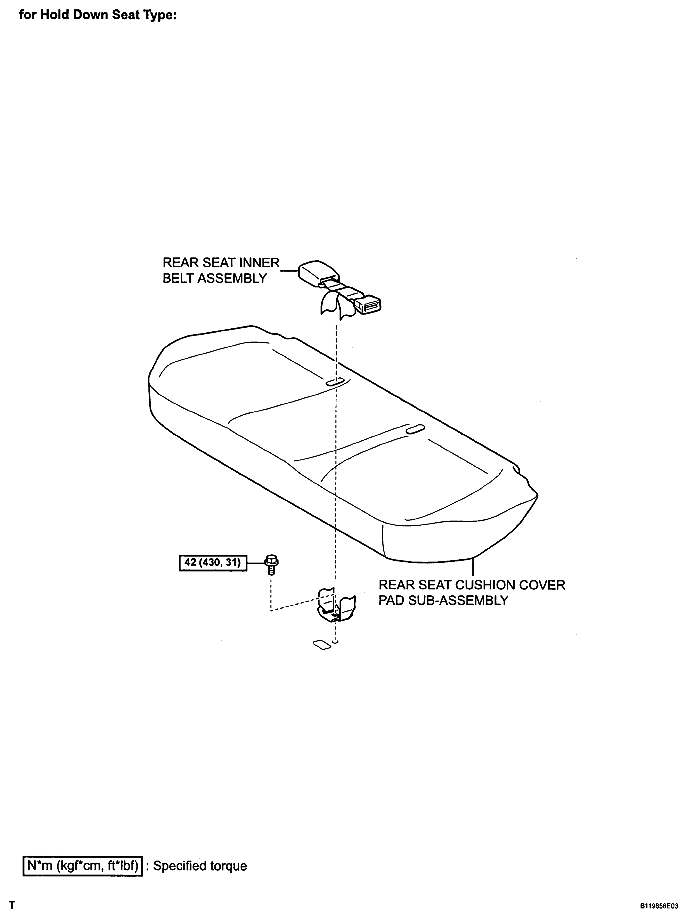

Fig 2: Rear Seat Inner Belt Assembly Replacement Components With Torque Specifications - Hatchback RH Side (2 Of 2)
