REAR CENTER SEAT OUTER BELT ASSEMBLY (for Hatchback 5 Door): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

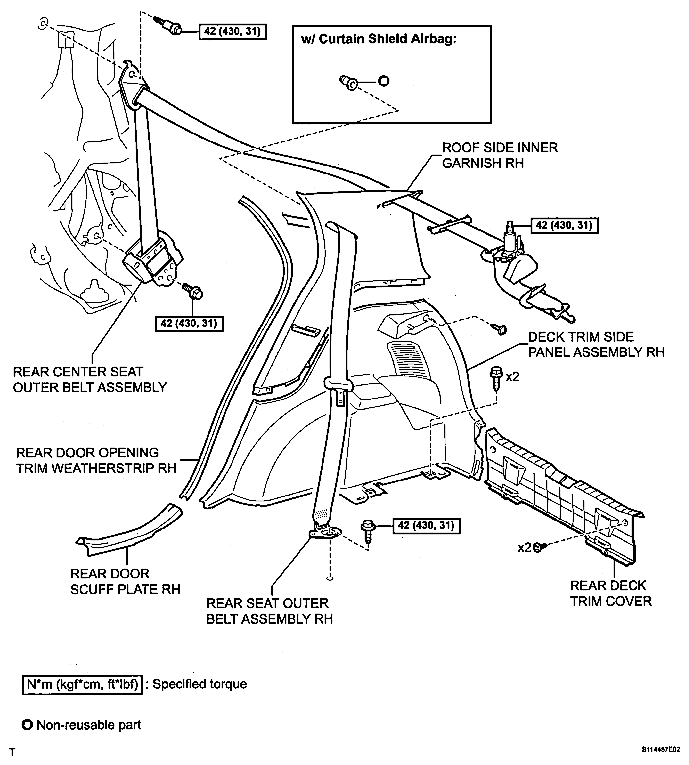

Fig 1: Identifying Rear Center Seat Outer Belt Assembly Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

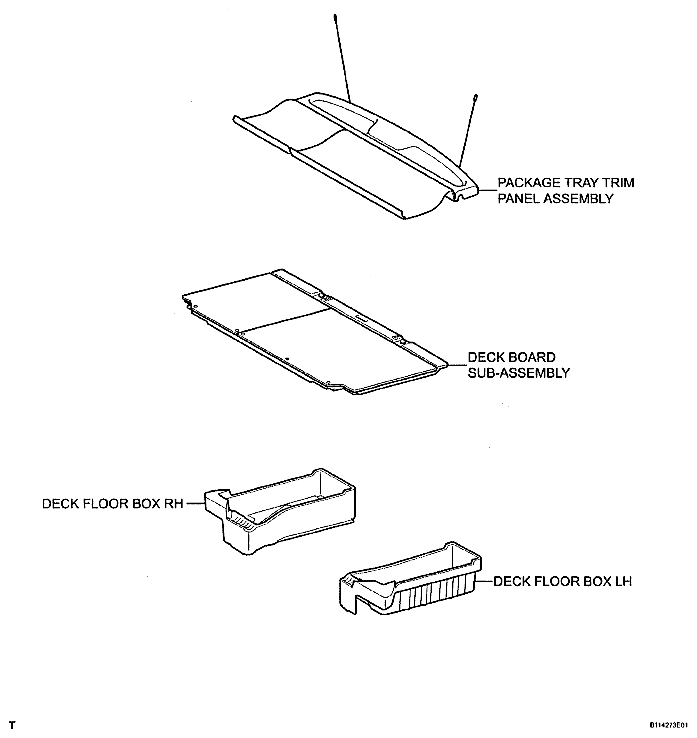

Fig 2: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

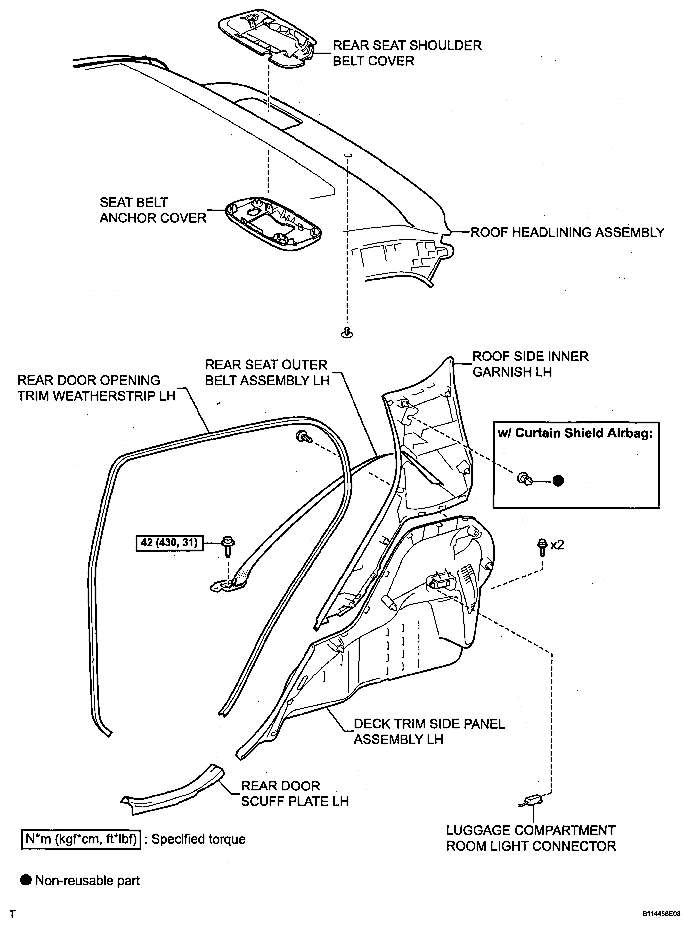

Fig 3: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (3 Of 4)

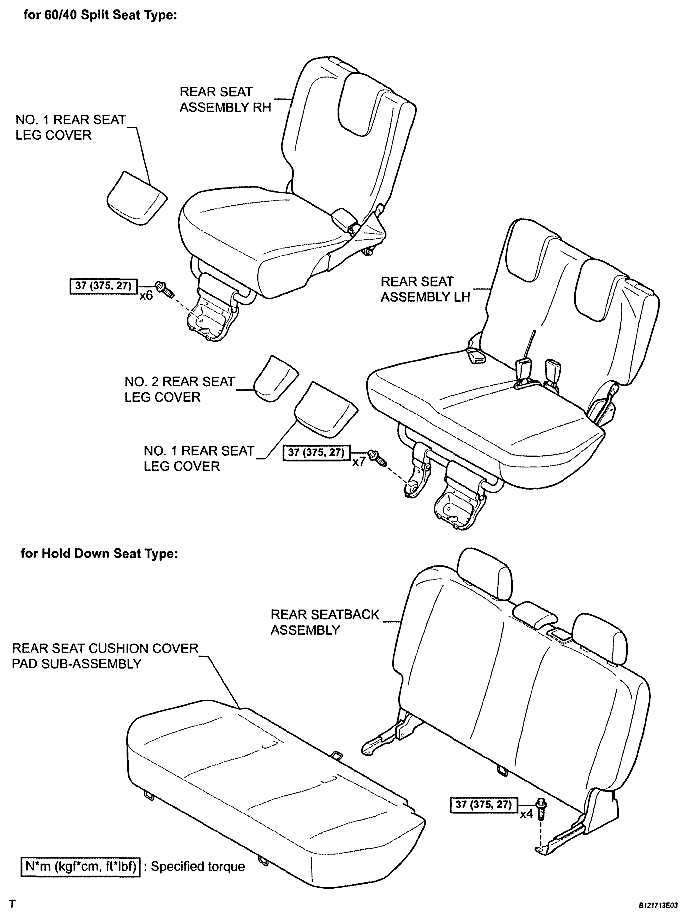

Fig 4: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (4 Of 4)
