REAR CENTER SEAT OUTER BELT ASSEMBLY (for Hatchback 3 Door): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

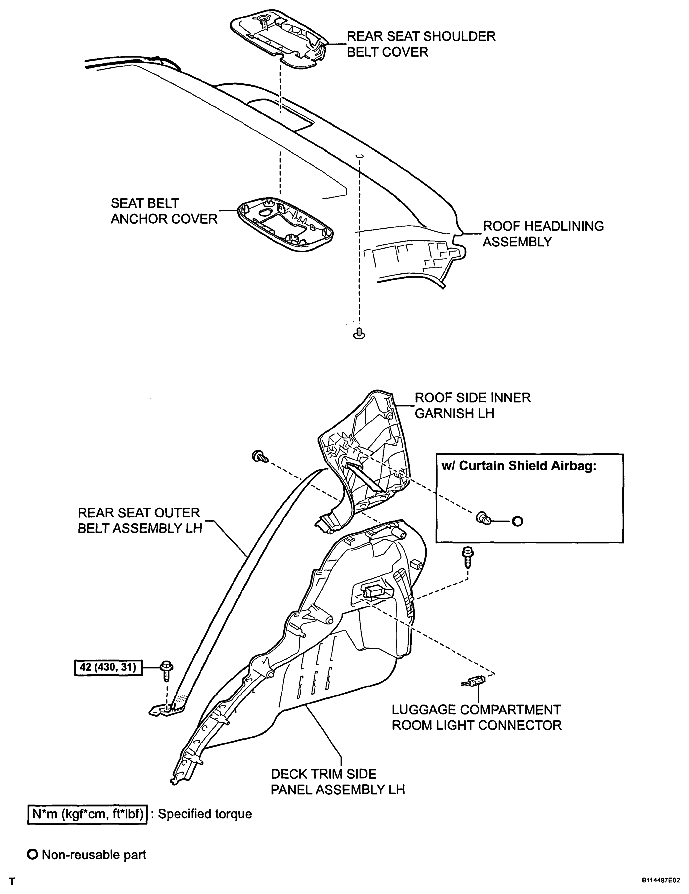

Fig 1: Identifying Rear Center Seat Outer Belt Assembly Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

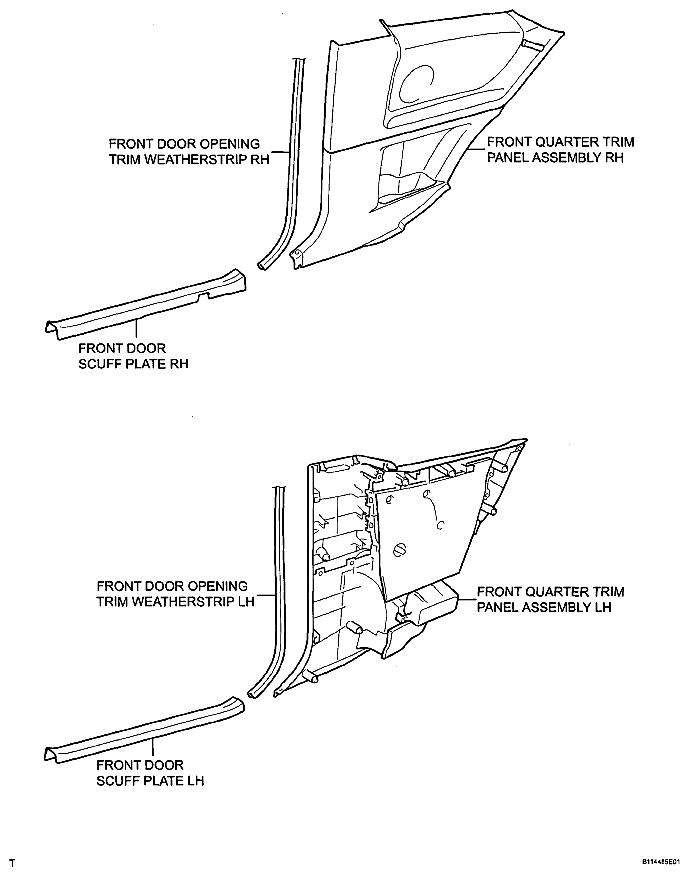

Fig 2: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

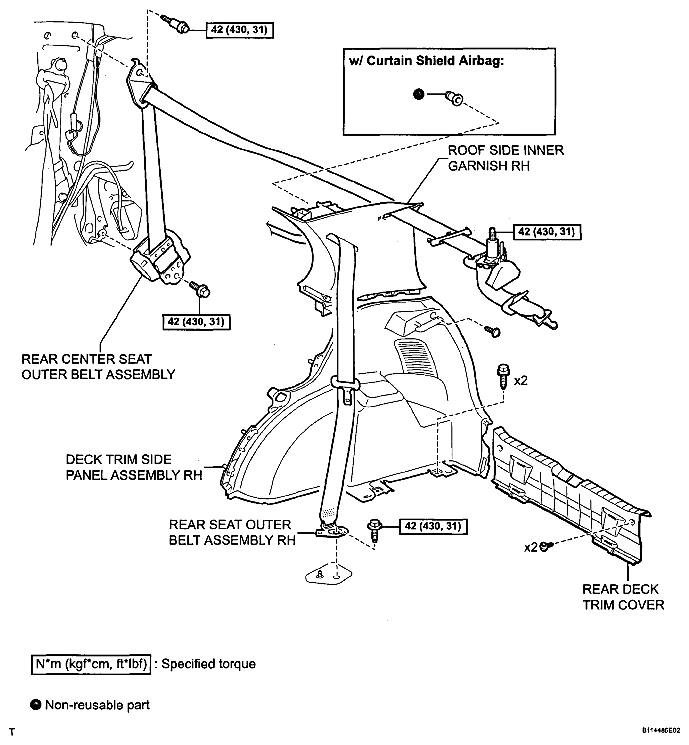

Fig 3: Identifying Rear Center Seat Outer Belt Assembly Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (4 Of 5)

Fig 5: Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specifications (5 Of 5)
