FRONT SEAT OUTER BELT ASSEMBLY (for Hatchback 3 Door) WITH PRETENSIONER: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Front Seat Outer Belt Assembly Components - Hatchback 3 Door (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

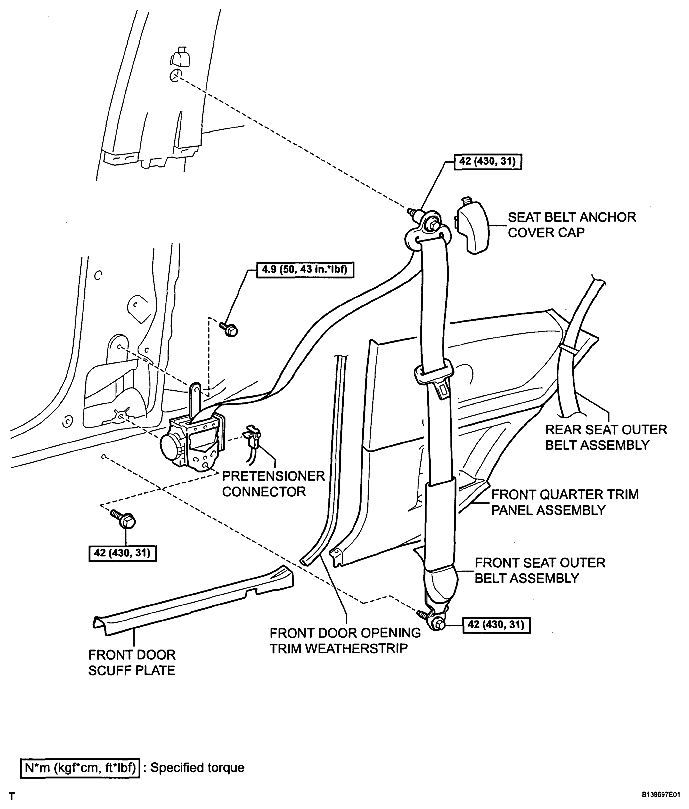

Fig 2: Front Seat Outer Belt Assembly Replacement Components With Torque Specifications - Hatchback 3 Door (3 Of 3)

Fig 3: Front Seat Outer Belt Assembly Replacement Components With Torque Specifications - Hatchback 3 Door (3 Of 3)
