CHILD RESTRAINT SEAT ANCHOR BRACKET (for Sedan): Removal

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
HINT:

Use the same procedure to remove all the child restraint seat tether anchor brackets.
1. Disengage the claw and open the package tray trim cover.

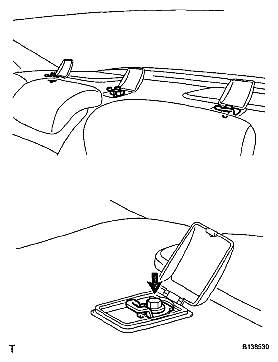

  Fig 1: Identifying Package Tray Trim Cover Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and the child restraint seat tether anchor bracket.

  Fig 2: Locating Child Restraint Seat Tether Anchor Bracket Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
