Rear Axle Beam: Replacement

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR AXLE CARRIER BUSH LH
1. Place a match mark on the axle beam with it aligned with the bush mark.
2. Using a chisel and hammer, bend the 2 portions of the bush rib.
  NOTE: Bend the bush rib until the claw of SST can be suspended.
3. Using SST, remove the bush from the axle beam.
  SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04011, 09957-04010, 09958-04011), 09612-30012, 09950-60010 (09951-00590)

  NOTE: Apply paint to any scratches on the rear axle beam.

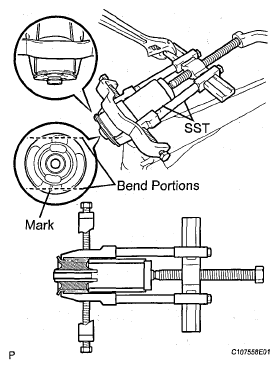

  Fig 1: Removing Bush From Axle Beam
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR AXLE CARRIER BUSH RH
HINT:

The removal procedure for the RH side is the same as that for the LH side.
INSTALL REAR AXLE CARRIER BUSH LH
1. Align the matchmarks on a new bush and the axle beam and provisionally install the bush onto the axle beam, as shown in Fig 2 .
  NOTE: Install the bush in the same orientation as the old one was prior to removal because they are directional.

  Fig 2: Identifying Matchmarks On Bush & Axle Beam
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, install the bush onto the axle beam.
  SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04030, 09955-04051, 09957-04010, 09958-04011), 09950-60020 (09951-00810, 09387-02010), 09223-15020

  NOTE: Do not damage the rubber portion when installing the bush.
INSTALL REAR AXLE CARRIER BUSH RH
HINT:

The installation procedure for the RH side is the same as that for the LH side.

Fig 3: Identifying SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
