FRONT LOWER SUSPENSION ARM (for RH Side): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front Stabilizer Bar Replacement Components (1 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front Stabilizer Bar Replacement Components (2 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

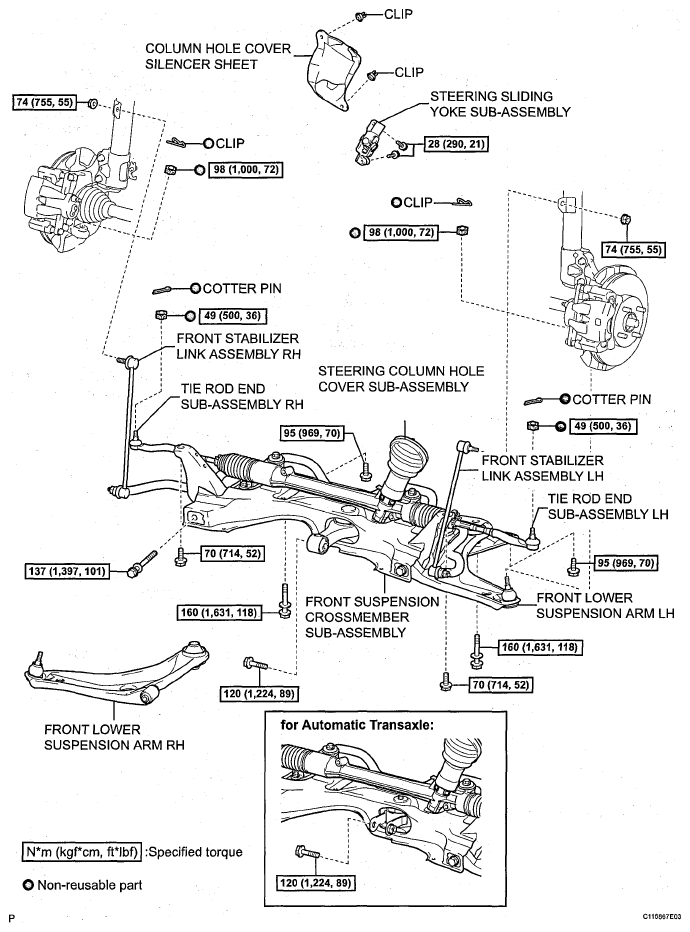

Fig 3: Front Stabilizer Bar Replacement Components (3 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Stabilizer Bar Replacement Components (4 Of 6) With Torque Specifications

Fig 5: Front Lower Suspension Arm (For RH Side) Replacement Components (5 Of 5) With Torque Specifications
