Parts Location

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

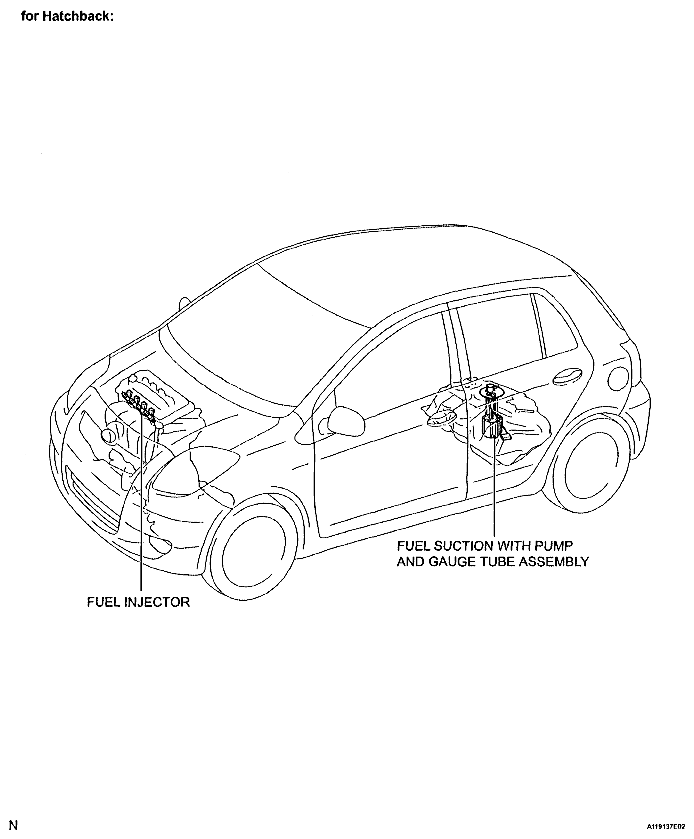

Fig 1: Locating Fuel System Parts (Hatchback)
G04829028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

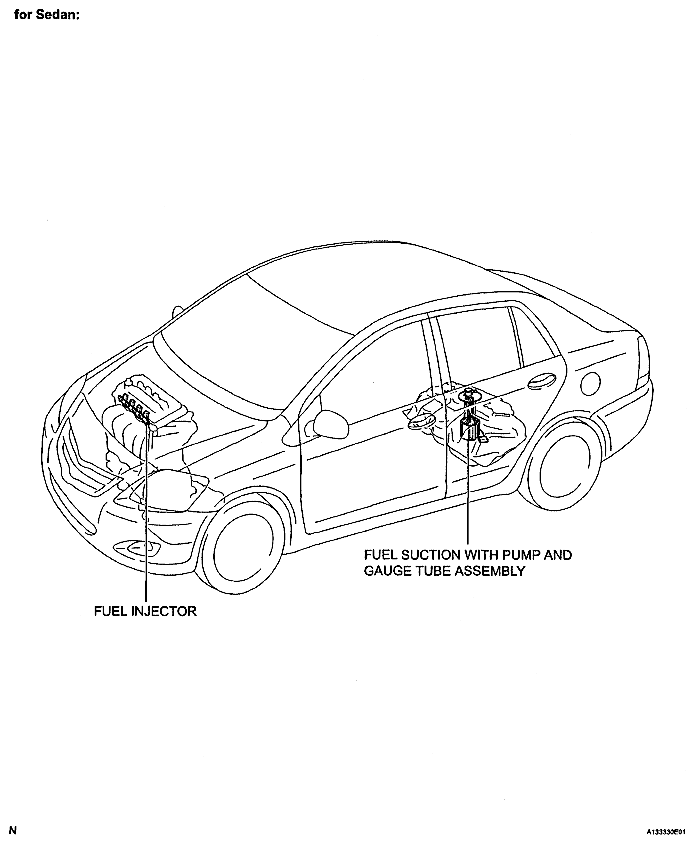

Fig 2: Locating Fuel System Parts (Sedan)
G04829029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
