Clutch Master Cylinder: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

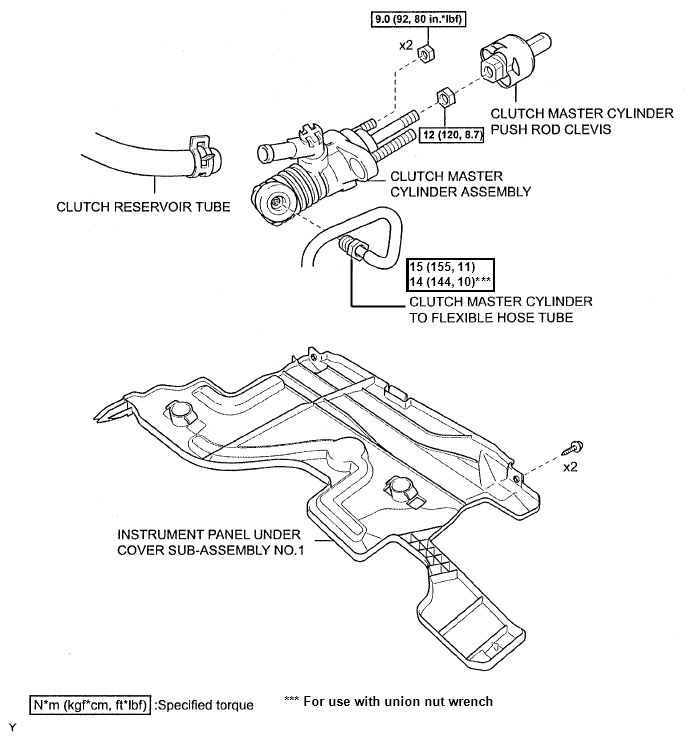

Fig 1: Clutch Master Cylinder Replacement Components With Torque Specifications
G04831594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
