Transmission Control Cable: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

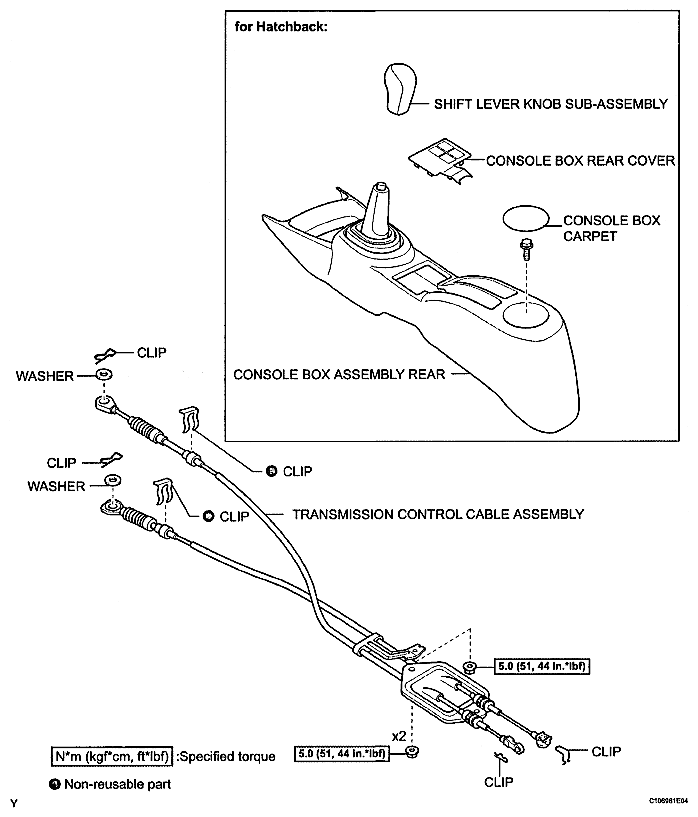

Fig 1: Transmission Control Cable Replacement Components (1 Of 3) With Torque Specifications
G04831640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

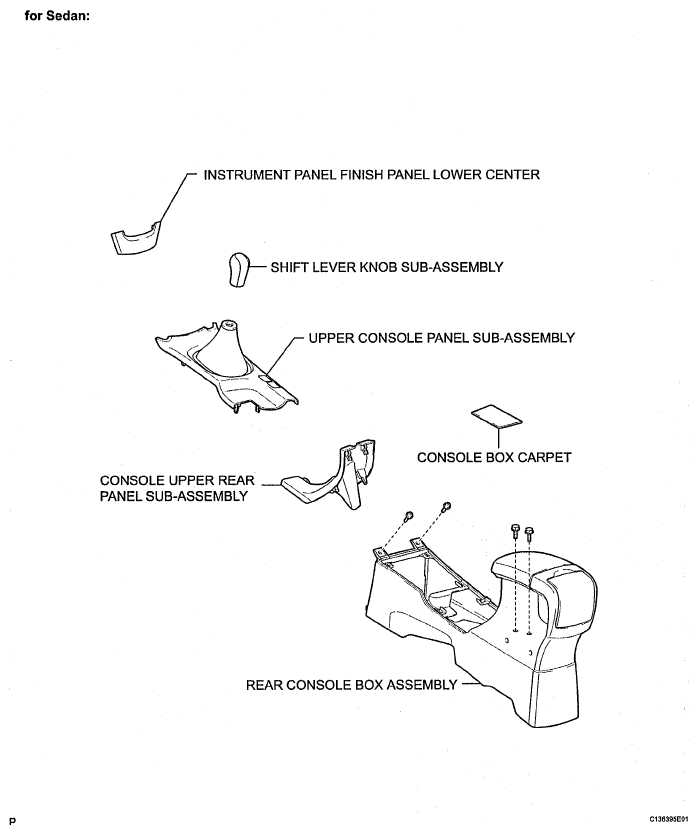

Fig 2: Identifying Transmission Control Cable Components (2 Of 3)
G04831633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Transmission Control Cable Replacement Components (3 Of 3) With Torque Specifications
G04831642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
