Manual Transaxle Assembly: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

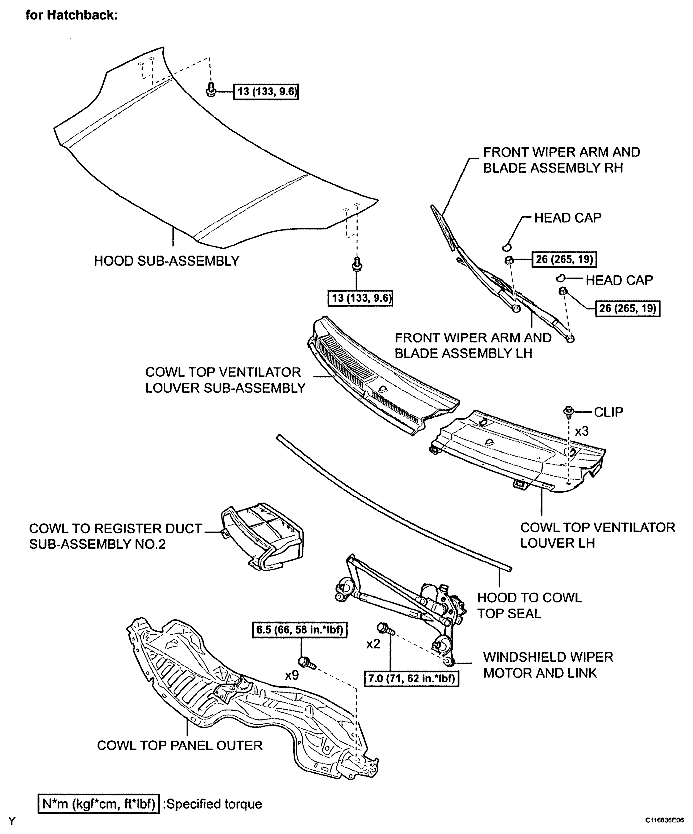

Fig 1: Manual Transaxle Assembly Replacement Components (1 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

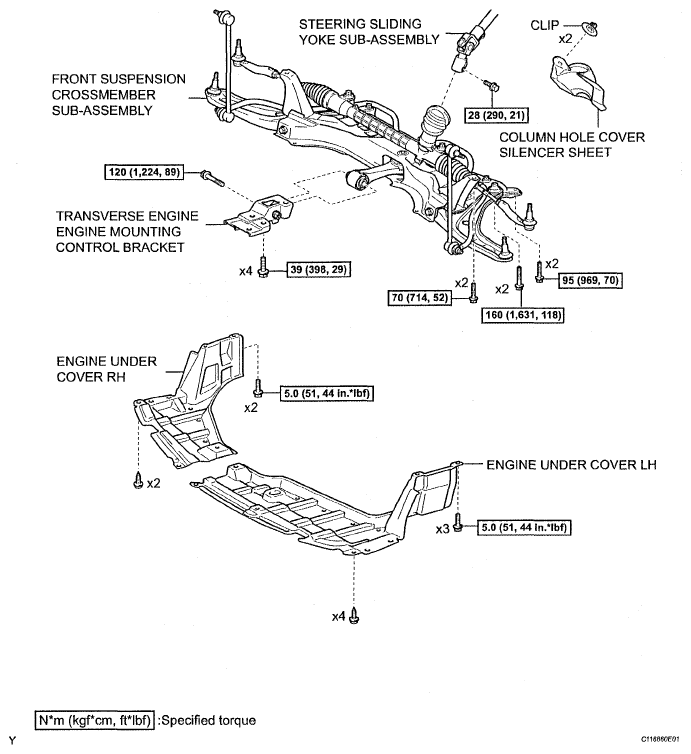

Fig 2: Manual Transaxle Assembly Replacement Components (2 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

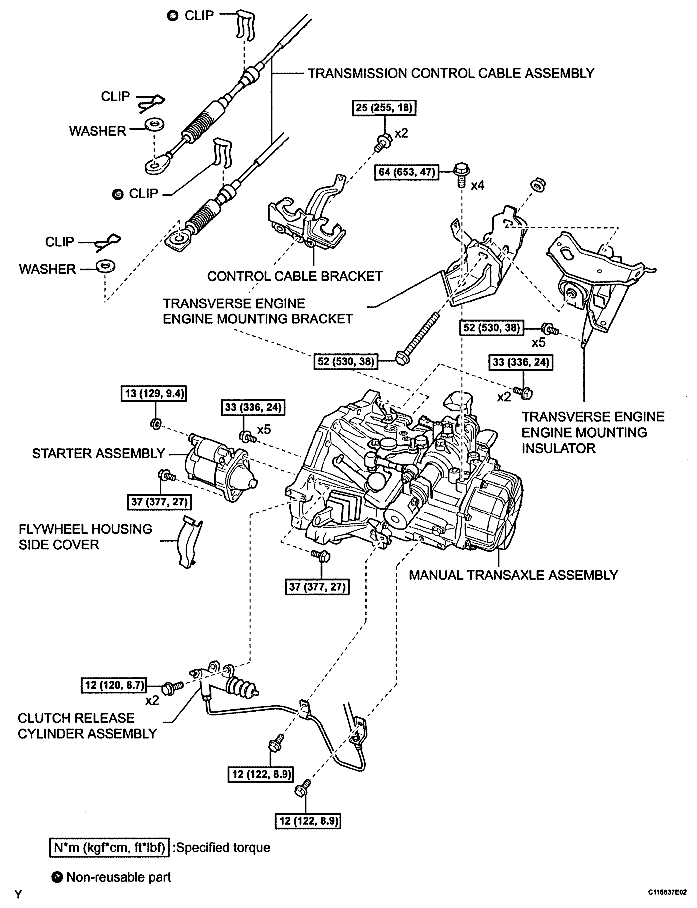

Fig 3: Manual Transaxle Assembly Replacement Components (3 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

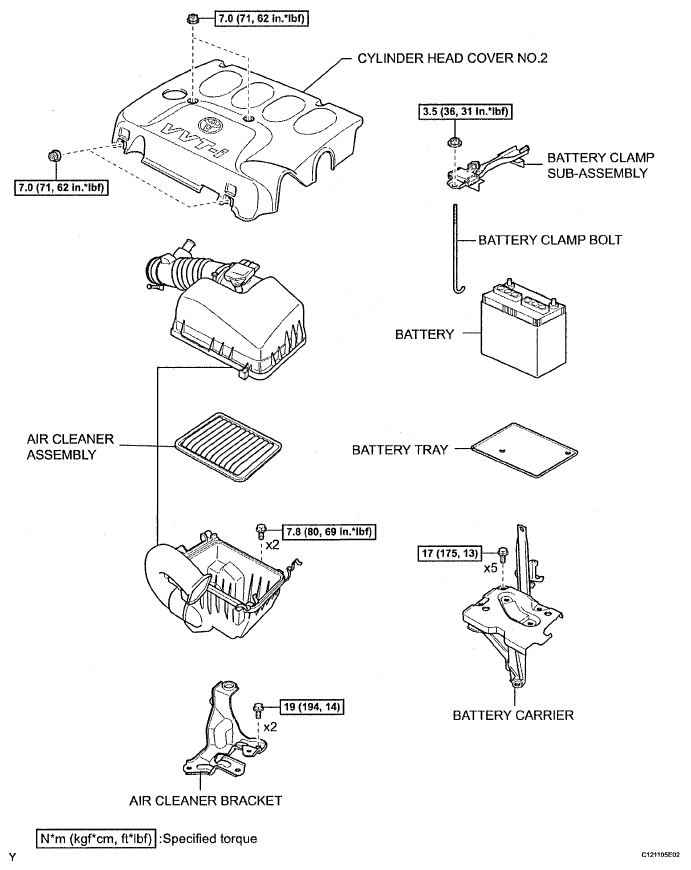

Fig 4: Manual Transaxle Assembly Replacement Components (4 Of 6) With Torque Specifications

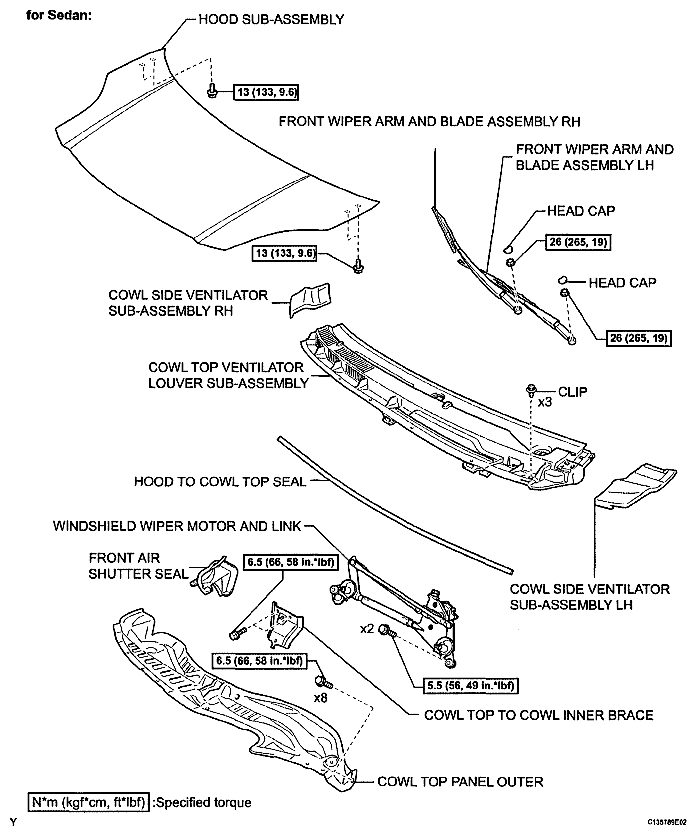

Fig 5: Manual Transaxle Assembly Replacement Components (5 Of 6) With Torque Specifications

Fig 6: Manual Transaxle Assembly Replacement Components (6 Of 6) With Torque Specifications
