Differential Oil Seal: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Manual Transaxle Assembly Replacement Components (4 Of 6) With Torque Specifications
G04831626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

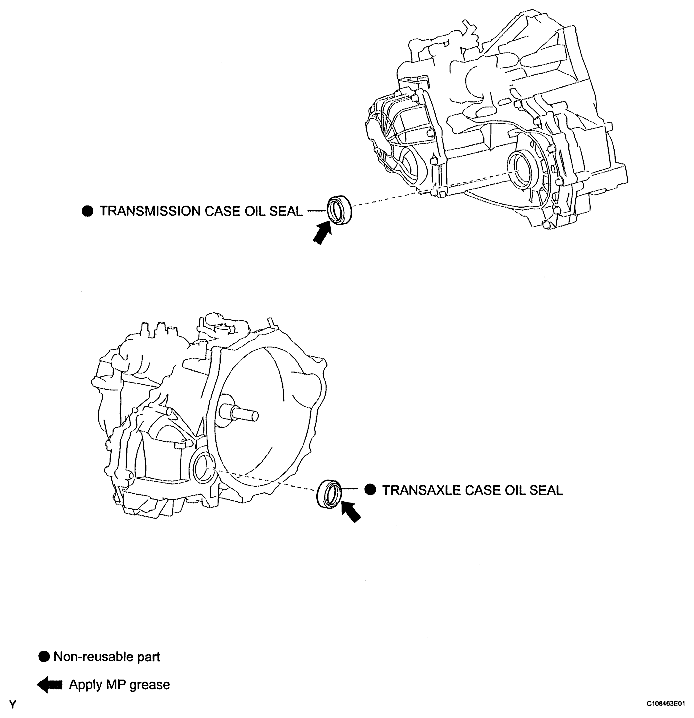

Fig 2: Identifying Differential Oil Seal Components (2 Of 2)
G04831627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
