System Diagram

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

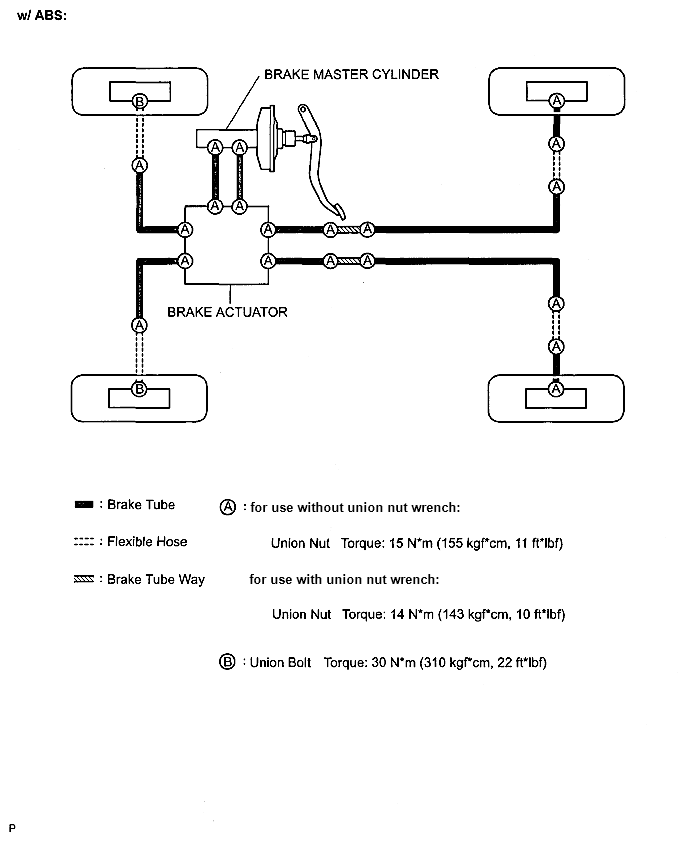

Fig 1: Identifying Brake System Diagram - With ABS
G04832250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

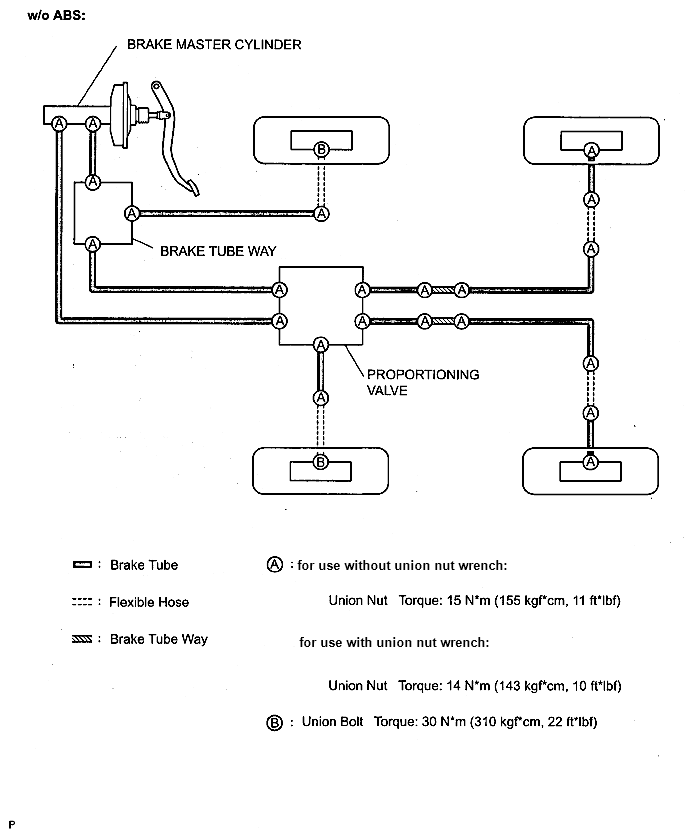

Fig 2: Identifying Brake System Diagram - Without ABS
G04832251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
