Brake Pedal Support: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

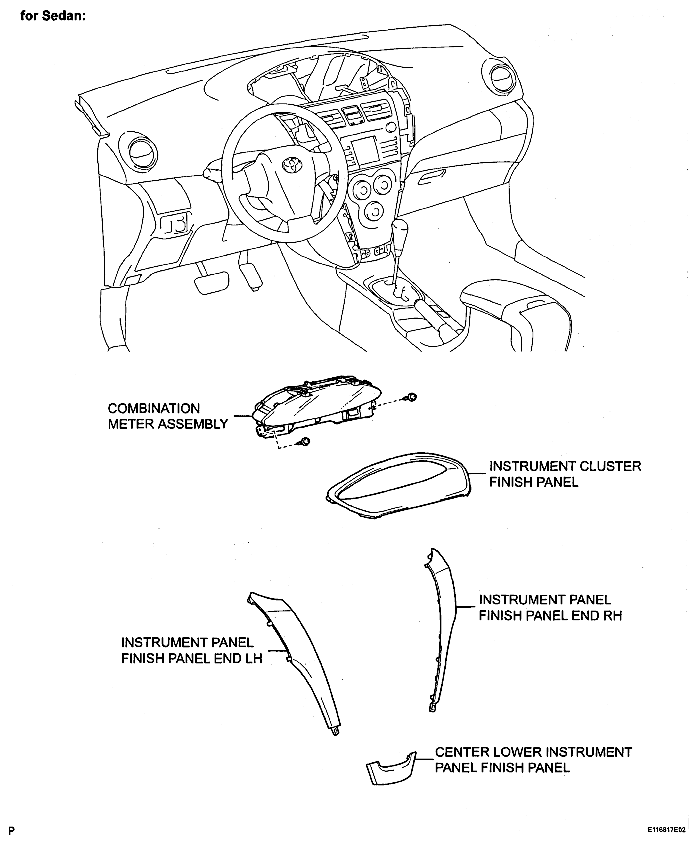

Fig 1: Identifying Brake Pedal Support Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

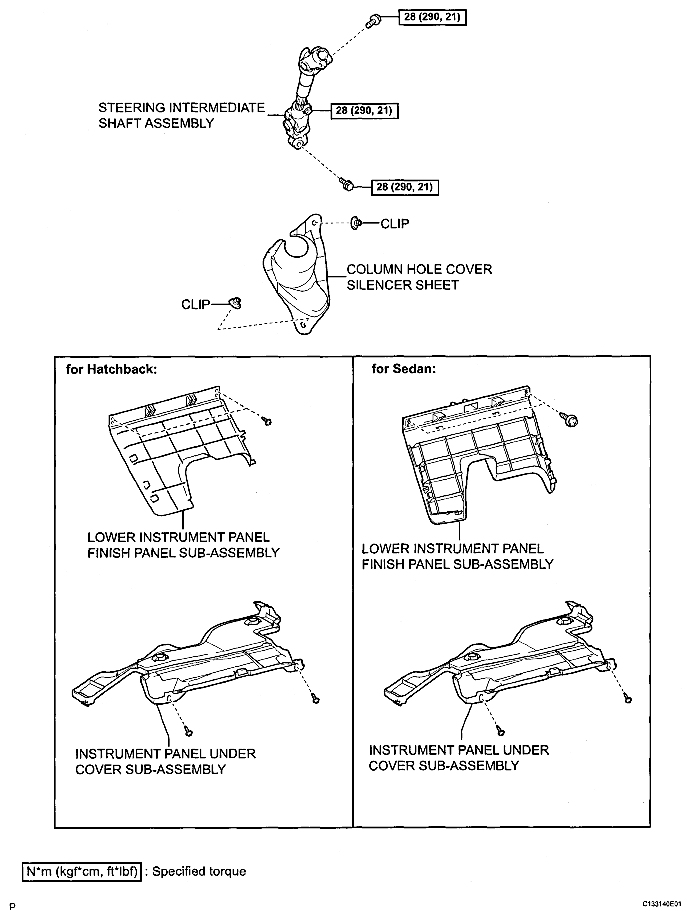

Fig 2: Brake Pedal Support Replacement Components (2 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

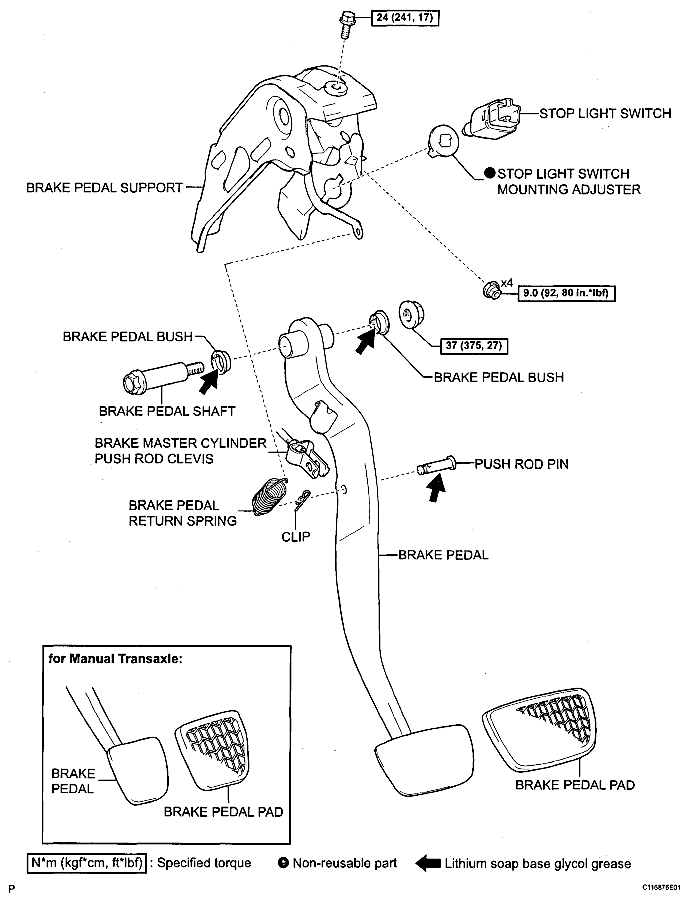

Fig 3: Brake Pedal Support Replacement Components (3 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

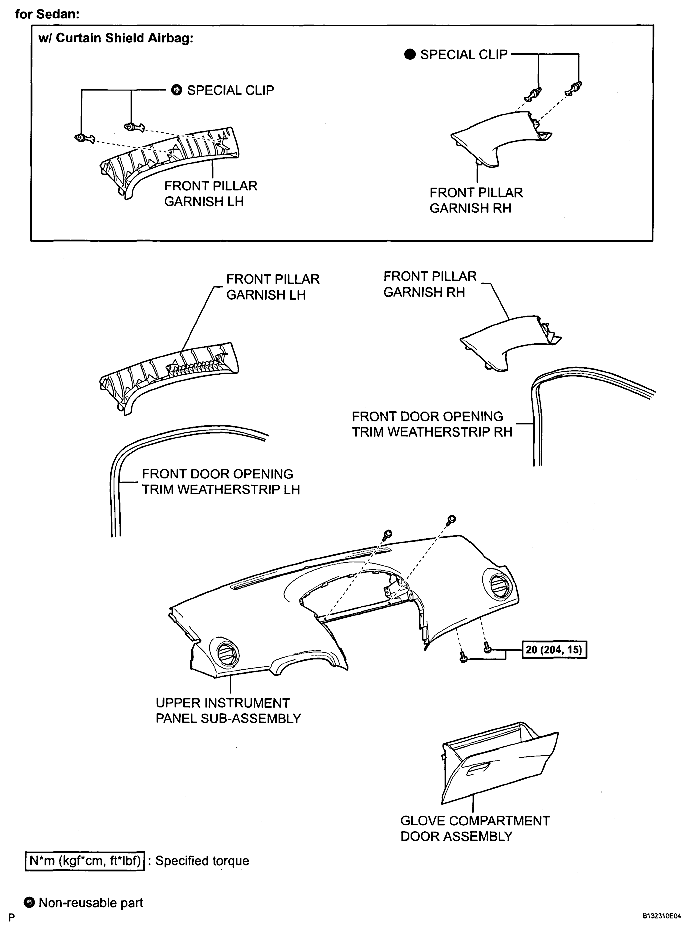

Fig 4: Brake Pedal Support Replacement Components (4 Of 6) With Torque Specifications

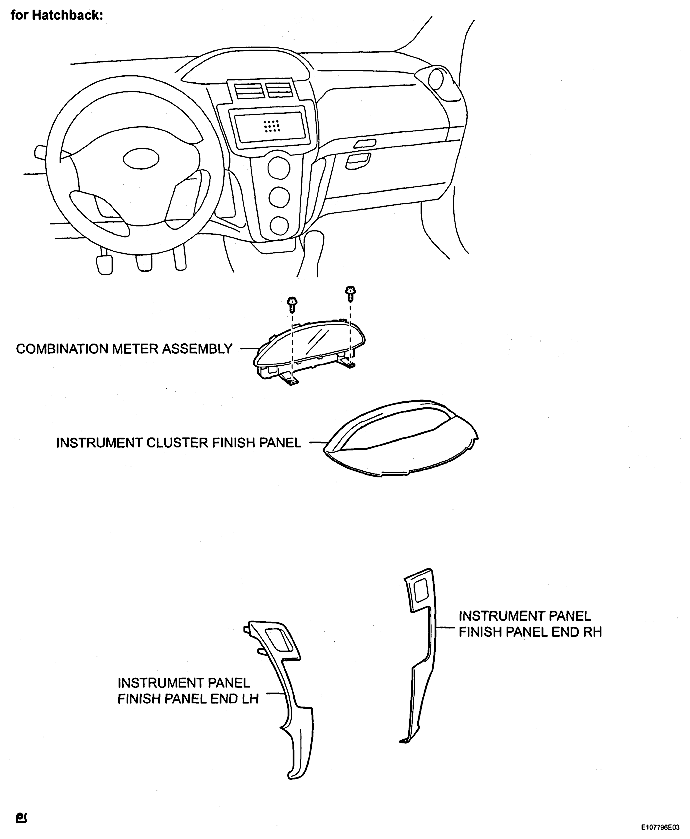

Fig 5: Brake Pedal Support Replacement Components (5 Of 6) With Torque Specifications

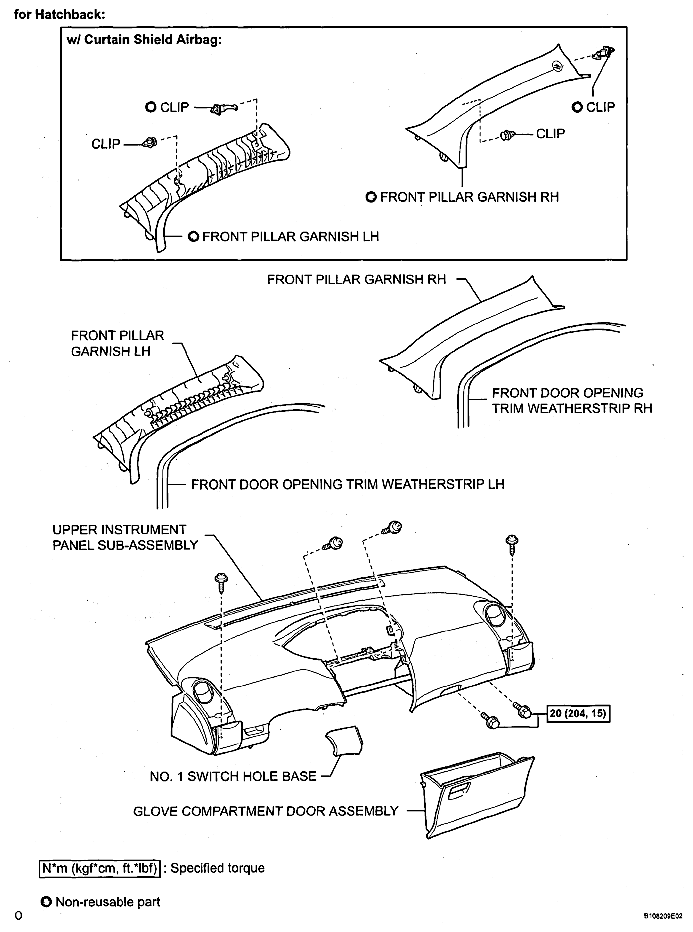

Fig 6: Brake Pedal Support Replacement Components (6 Of 6) With Torque Specifications
