Brake Booster: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

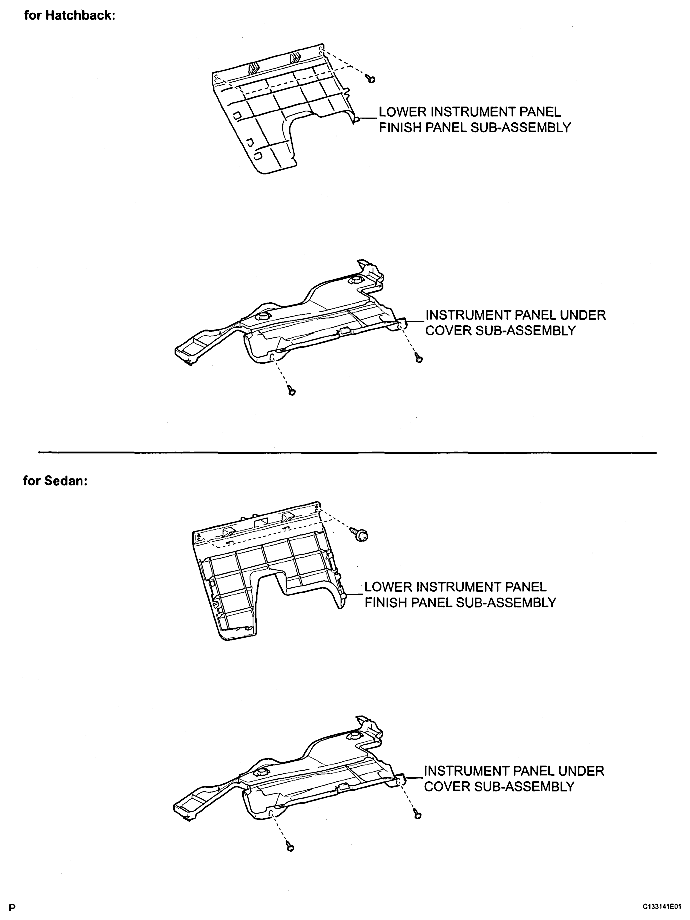

Fig 1: Brake Booster Replacement Components (1 Of 7) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

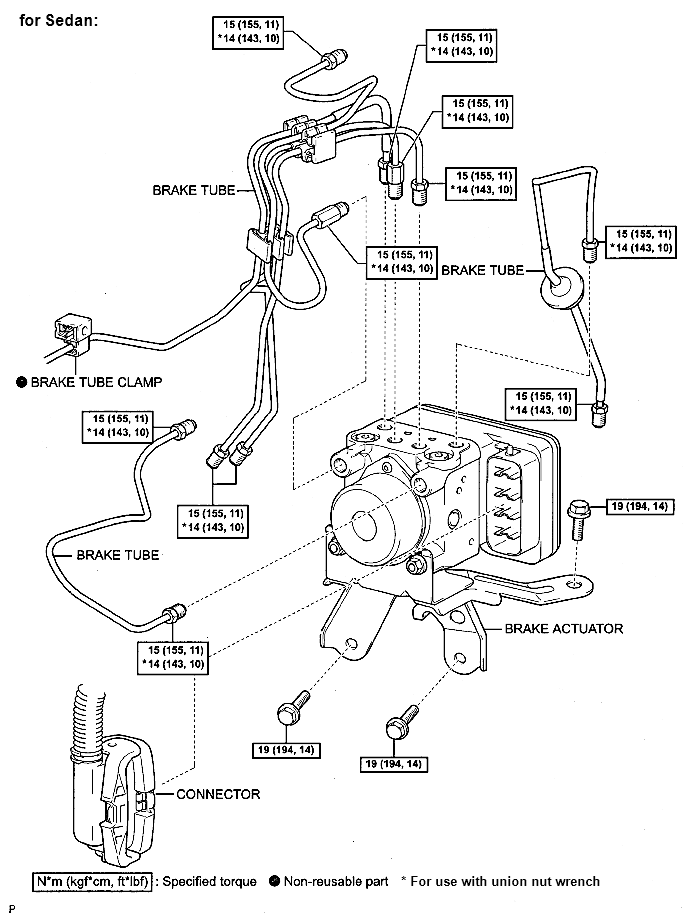

Fig 2: Brake Booster Replacement Components (2 Of 7) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

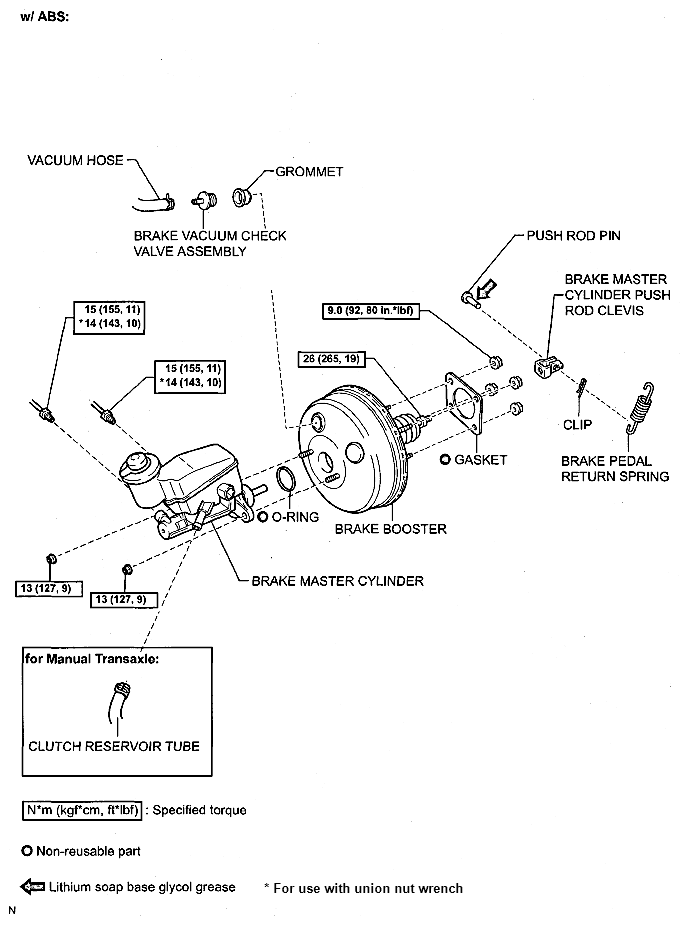

Fig 3: Identifying Brake Booster Components (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

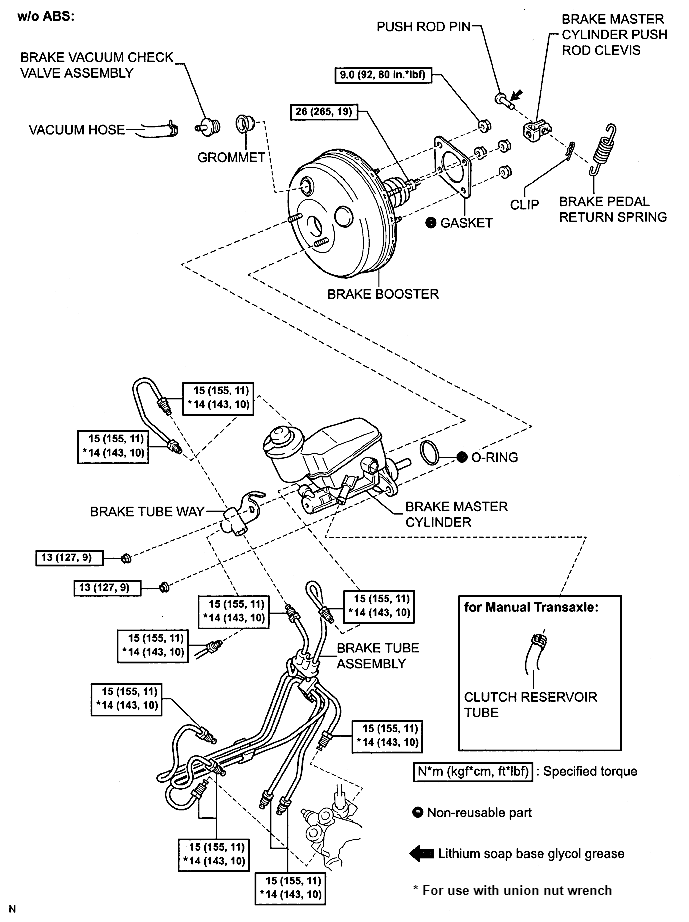

Fig 4: Brake Master Cylinder Replacement Components (1 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Brake Booster Replacement Components (5 Of 7) With Torque Specifications

Fig 6: Brake Booster Replacement Components (6 Of 7) With Torque Specifications

Fig 7: Brake Booster Replacement Components (7 Of 7) With Torque Specifications
