Cylinder Head, Intake Manifold, Exhaust Manifold: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

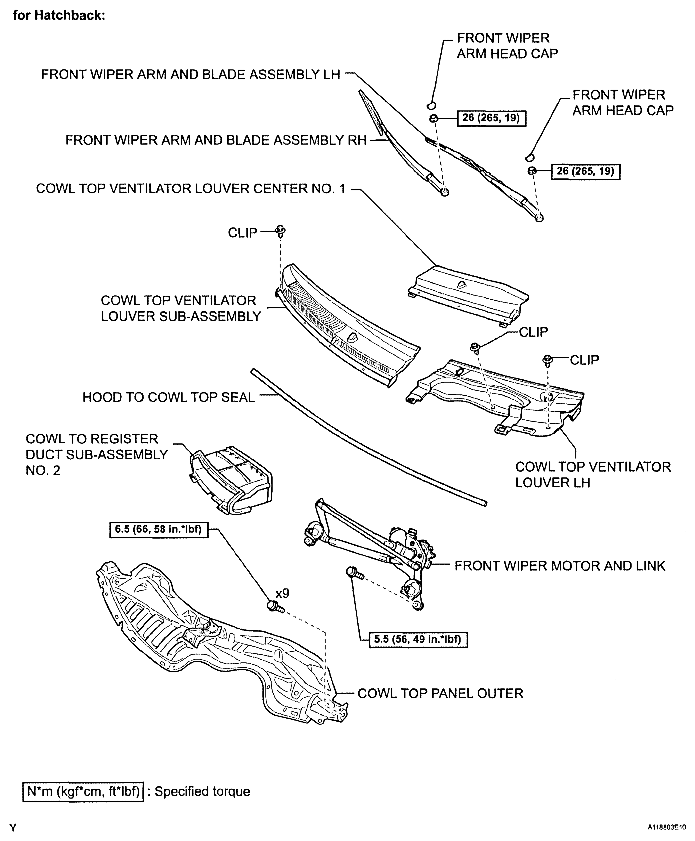

Fig 1: Identifying Cylinder Head Replacement Components With Torque Specifications (Hatchback) (1 Of 20)

G04828580

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Cylinder Head Replacement Components With Torque Specifications (Sedan) (2 Of 20)

G04828447

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Cylinder Head Replacement Components With Torque Specifications (3 Of 20)

G04828371

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Cylinder Head Replacement Components With Torque Specifications (4 Of 20)

G04828372

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Cylinder Head Replacement Components With Torque Specifications (5 Of 20)

G04828401

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Cylinder Head Replacement Components With Torque Specifications (6 Of 20)

G04828373

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

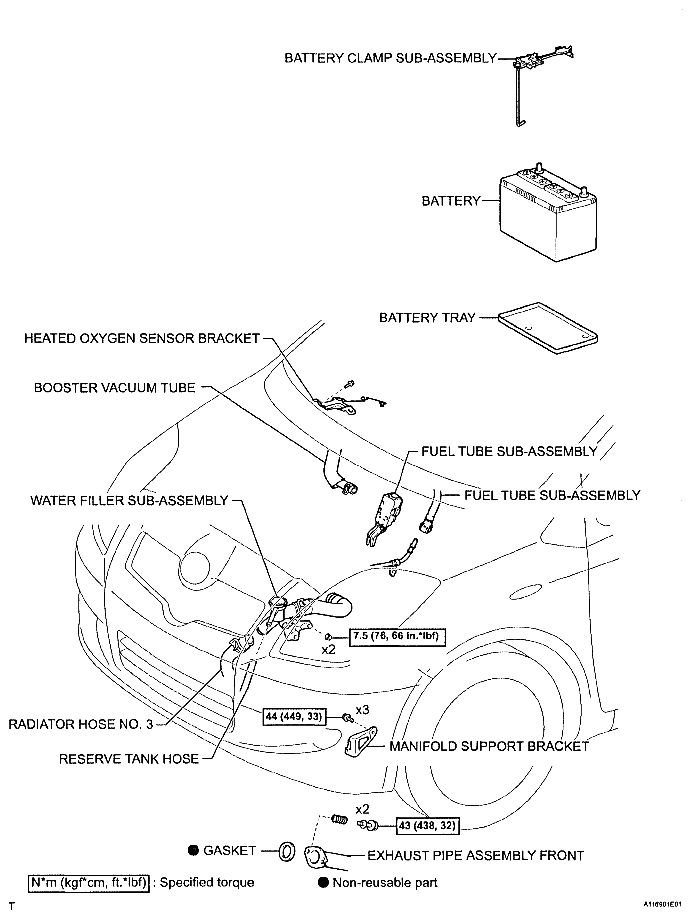

Fig 7: Identifying Cylinder Head Replacement Components With Torque Specifications (7 Of 20)

G04828586

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Cylinder Head Replacement Components With Torque Specifications (Hatchback) (8 Of 20)

G04828517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Cylinder Head Replacement Components With Torque Specifications (Sedan) (9 Of 20)

G04828518

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Cylinder Head Replacement Components With Torque Specifications (10 Of 20)

G04828519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Cylinder Head Replacement Components With Torque Specifications (11 Of 20)

G04828520

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Identifying Cylinder Head Replacement Components With Torque Specifications (12 Of 20)

G04828521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Identifying Cylinder Head Replacement Components With Torque Specifications (13 Of 20)

G04828374

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Identifying Cylinder Head Replacement Components With Torque Specifications (14 Of 20)

G04828523

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Identifying Cylinder Head Replacement Components With Torque Specifications (15 Of 20)

G04828524

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

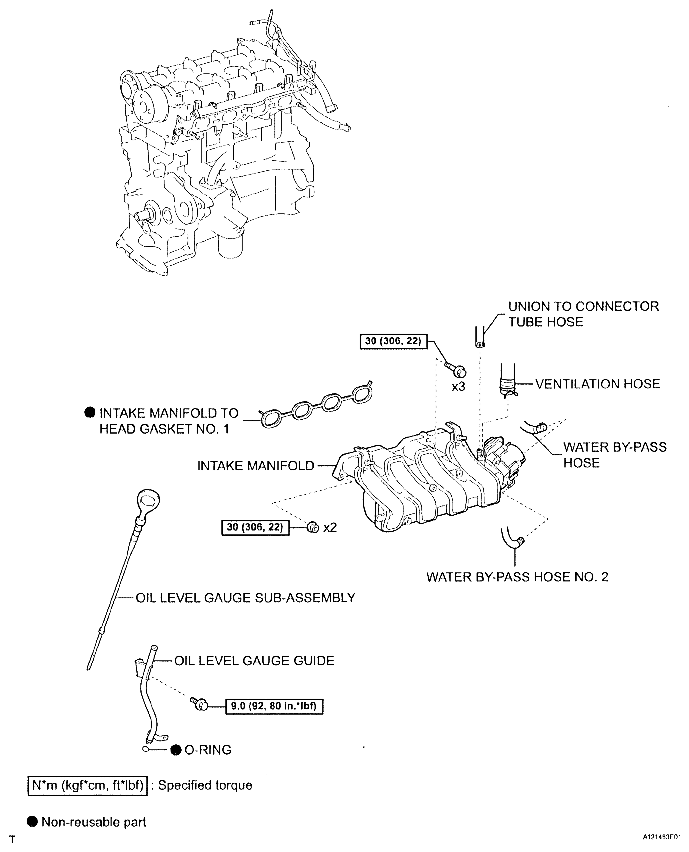

Fig 16: Identifying Cylinder Head Replacement Components With Torque Specifications (16 Of 20)

G04828595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

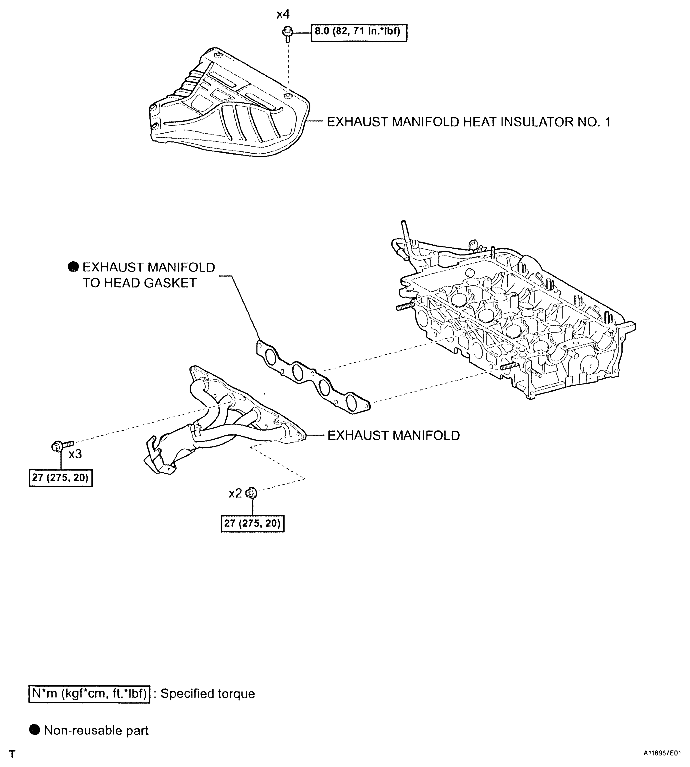

Fig 17: Identifying Cylinder Head Replacement Components With Torque Specifications (17 Of 20)

G04828596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

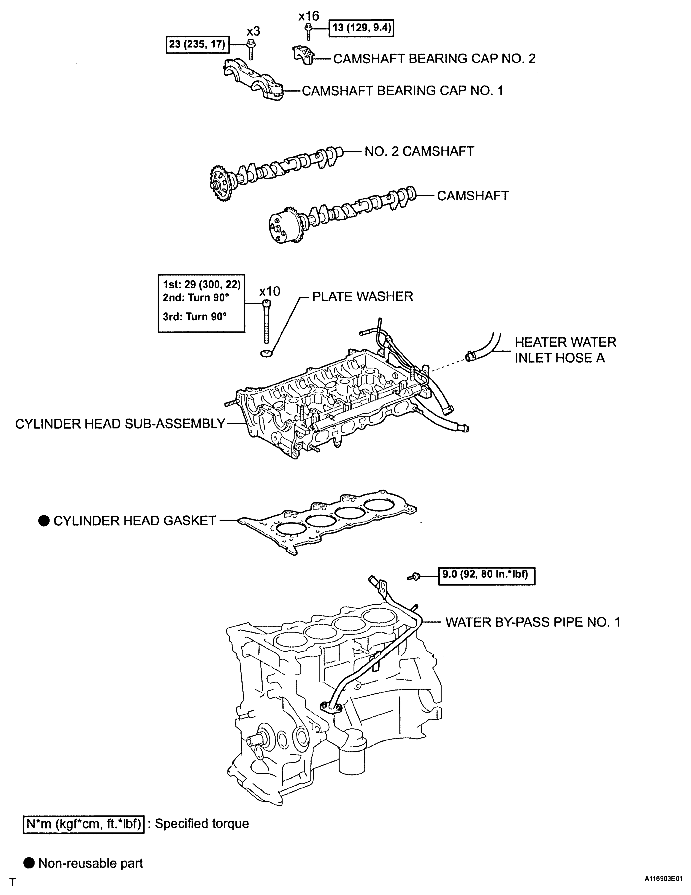

Fig 18: Identifying Cylinder Head Replacement Components With Torque Specifications (18 Of 20)

G04828597

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

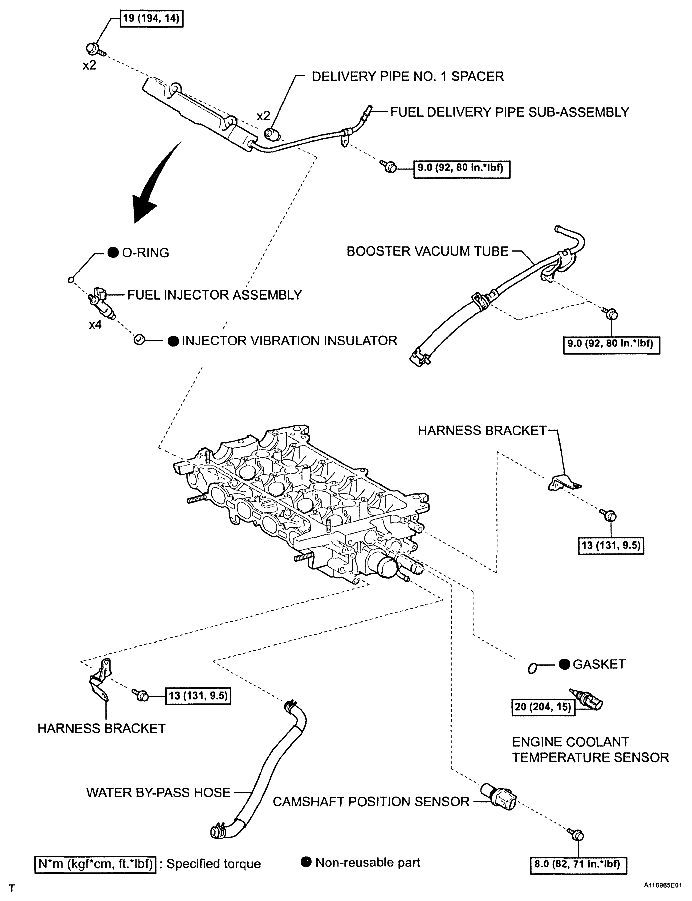

Fig 19: Identifying Cylinder Head Replacement Components With Torque Specifications (19 Of 20)

G04828598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

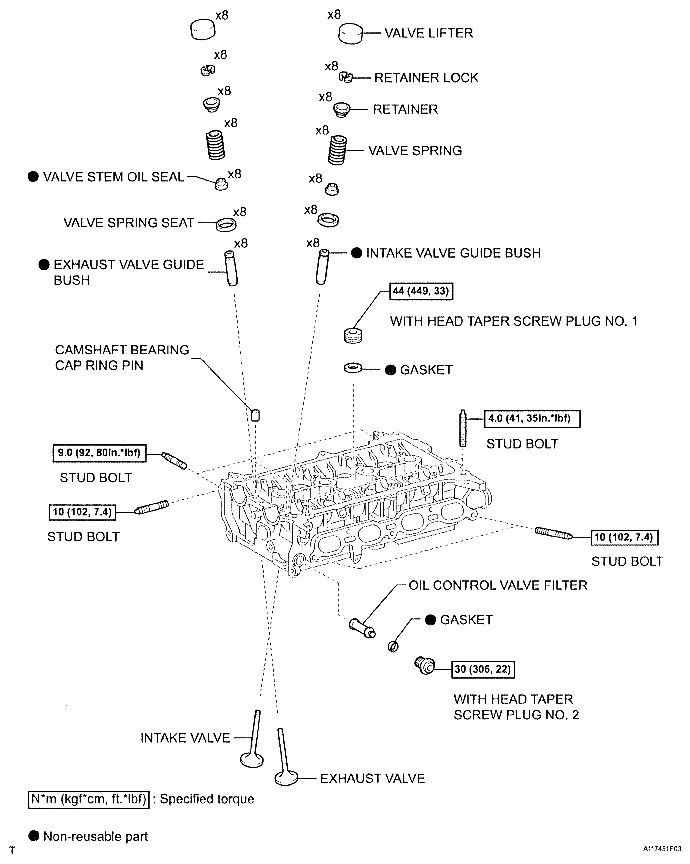

Fig 20: Identifying Cylinder Head Replacement Components With Torque Specifications (20 Of 20)

G04828599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
