Section 206 (Emission Control System (1ZZ-FE))
>>
Emission Control System
>>
Parts Location
Parts Location
WARNING:
This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

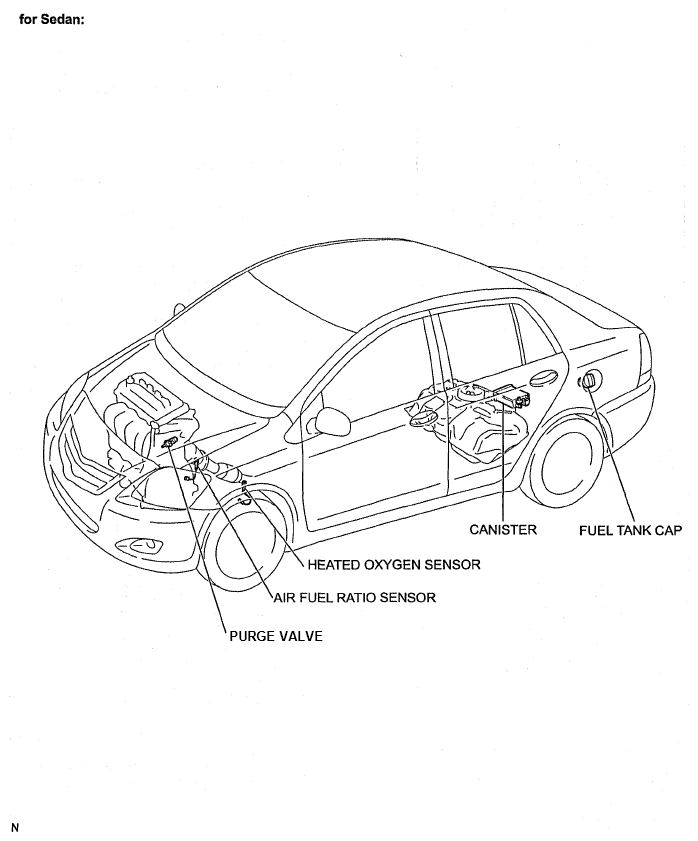

Fig 1: Identifying Emission Control System Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

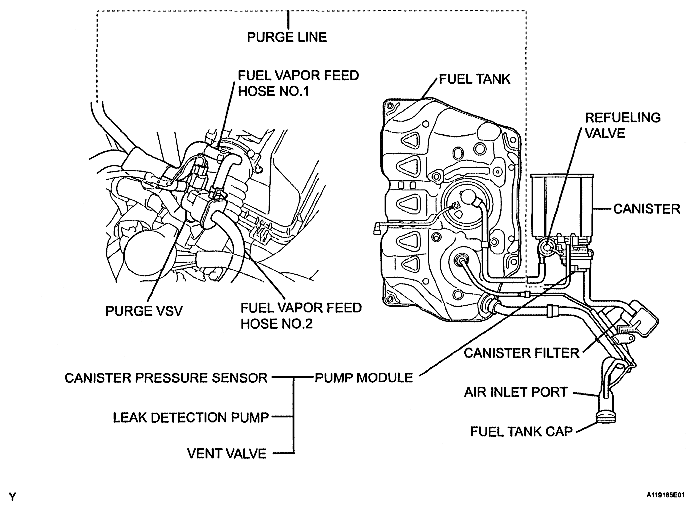

Fig 2: Identifying Emission Control System Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

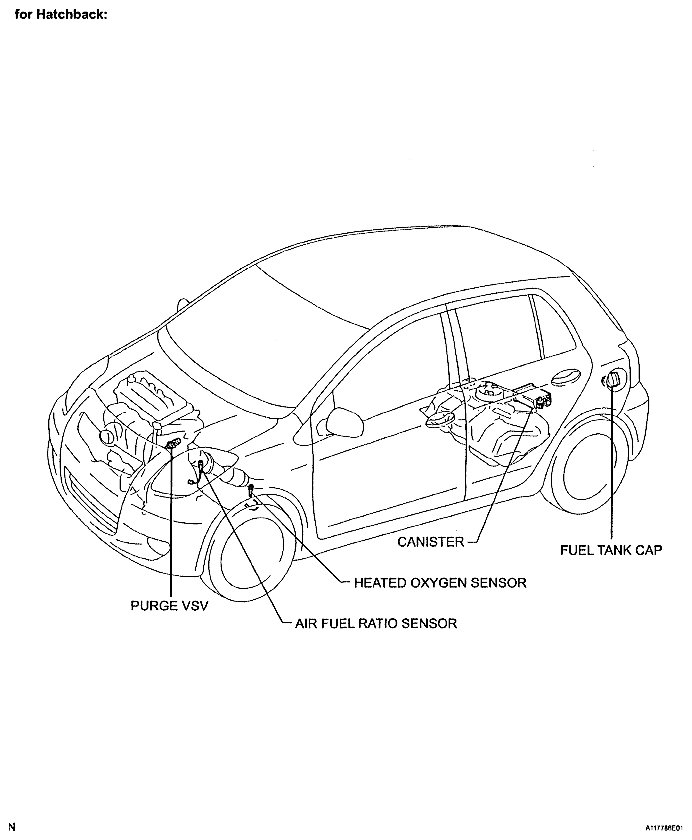

Fig 3: Identifying Emission Control System Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
