Section 205 (Engine Cooling System): Radiator: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

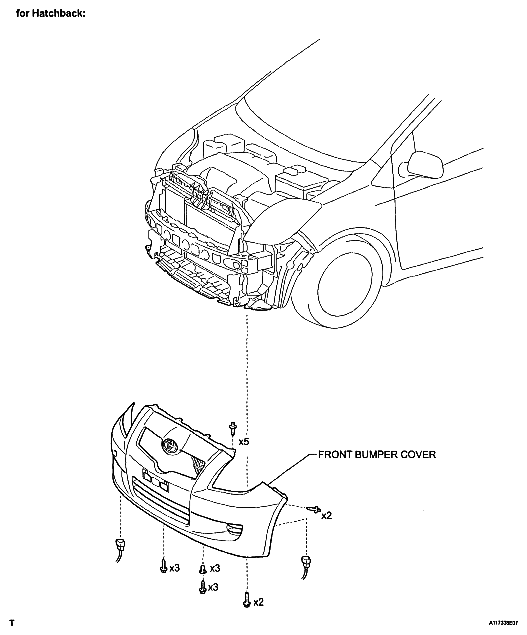

Fig 1: Identifying Radiator Components (Hatchback) (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

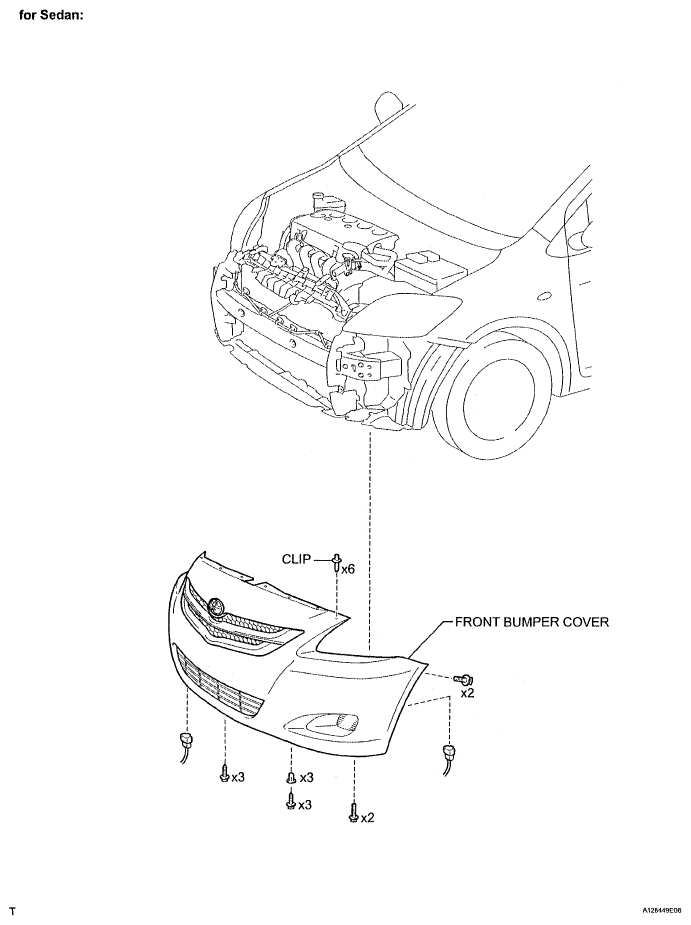

Fig 2: Identifying Radiator Components (Sedan) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

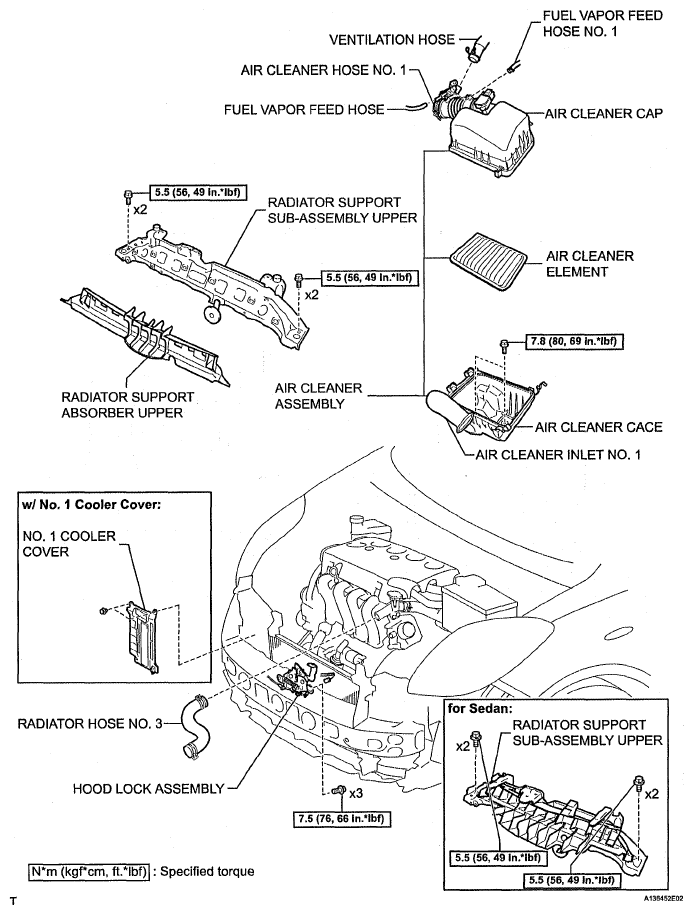

Fig 3: Radiator Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

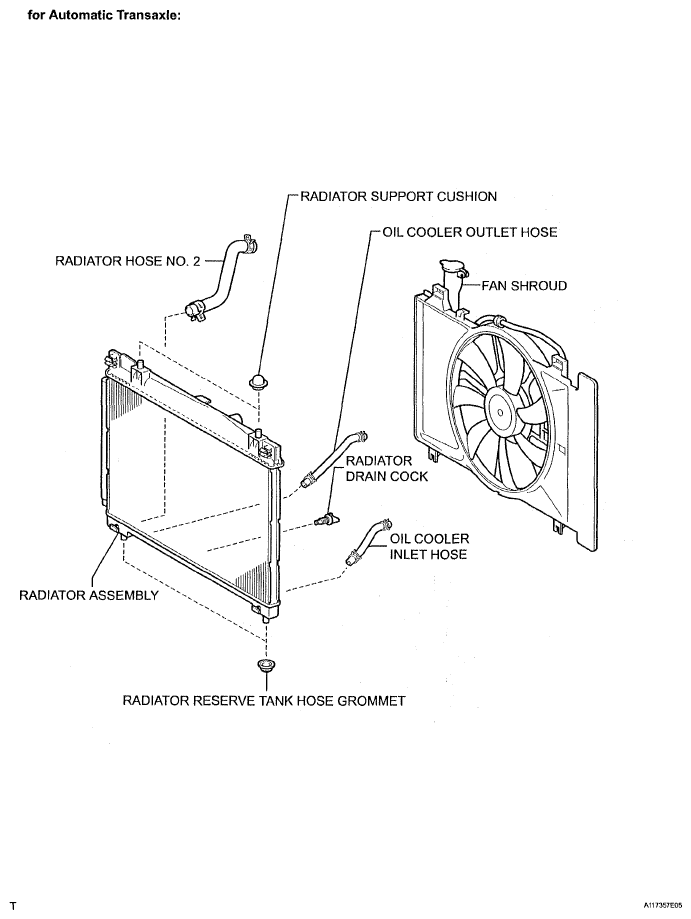

Fig 4: Identifying Radiator Components (Automatic Transaxle) (4 Of 5)

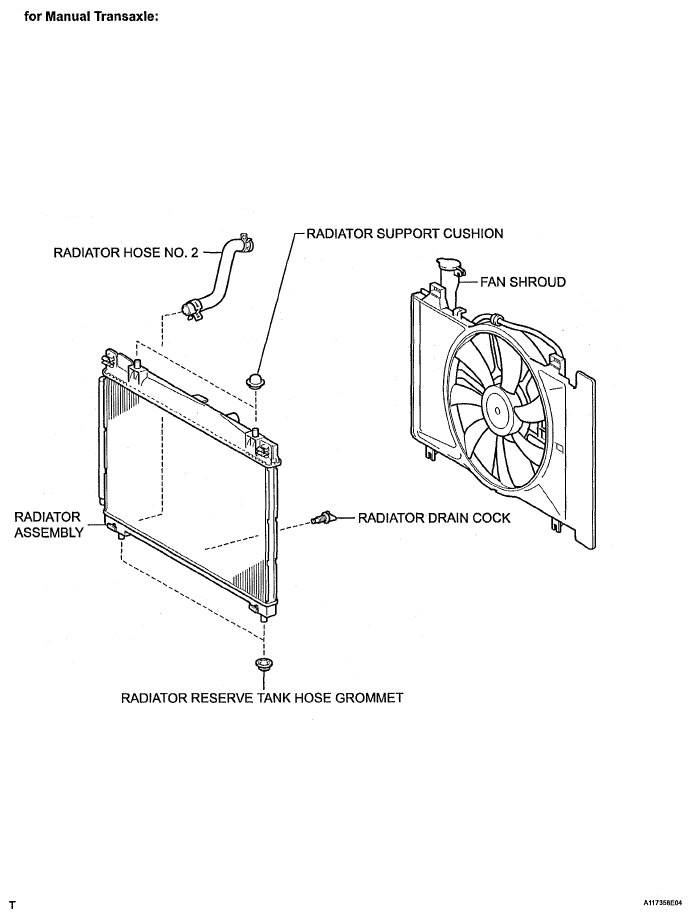

Fig 5: Identifying Radiator Components (Manual Transaxle) (5 Of 5)
