Home >> Toyota >> 2008 >> FJ Cruiser RWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 200 (Air Conditioning) >> Refrigerant Line >> Components

Refrigerant Line: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

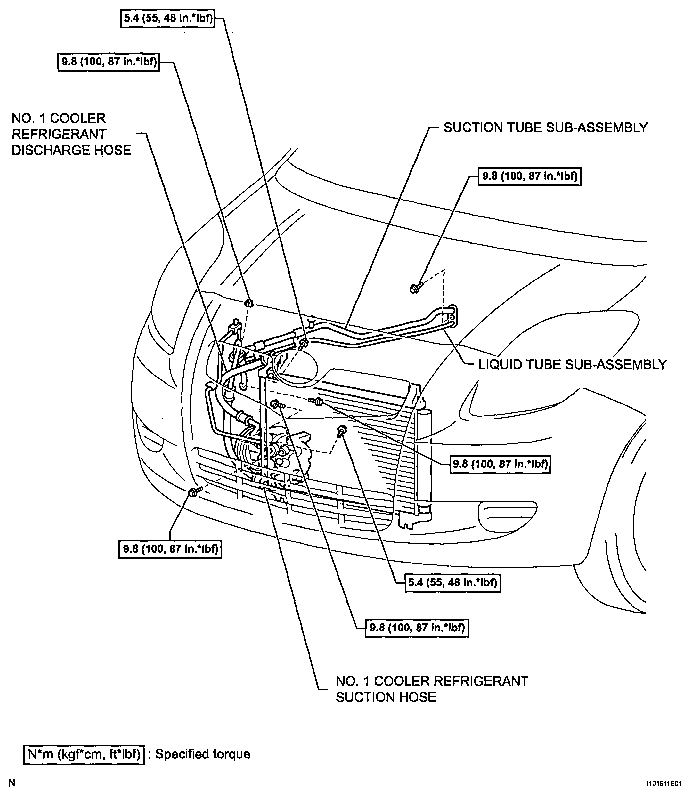

Fig 1: Refrigerant Line Replacement Components With Torque Specifications
G04829580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
