Heater Blower Motor Relay: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

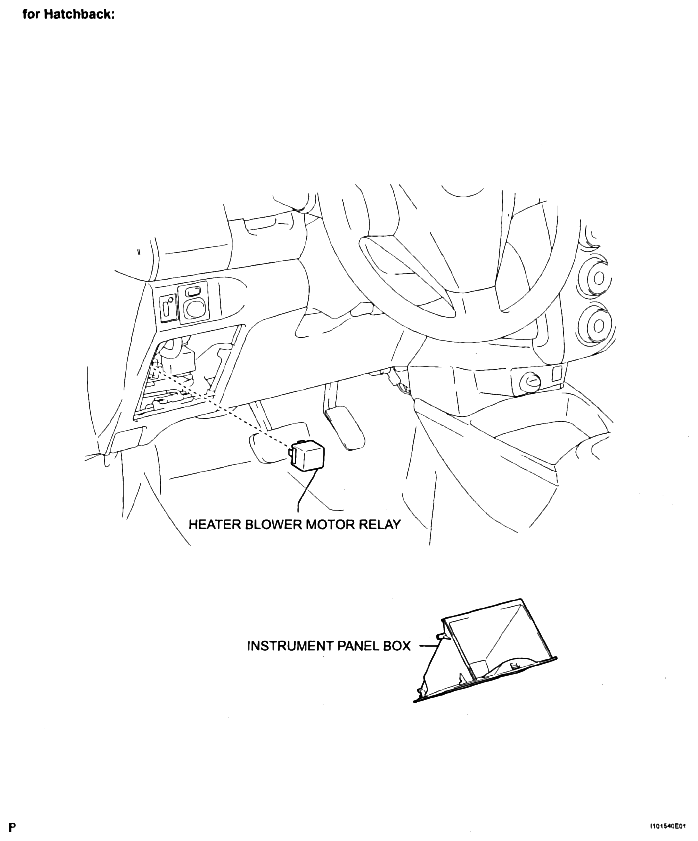

Fig 1: Identifying Heater Blower Motor Relay Components (1 Of 2)
G04829867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

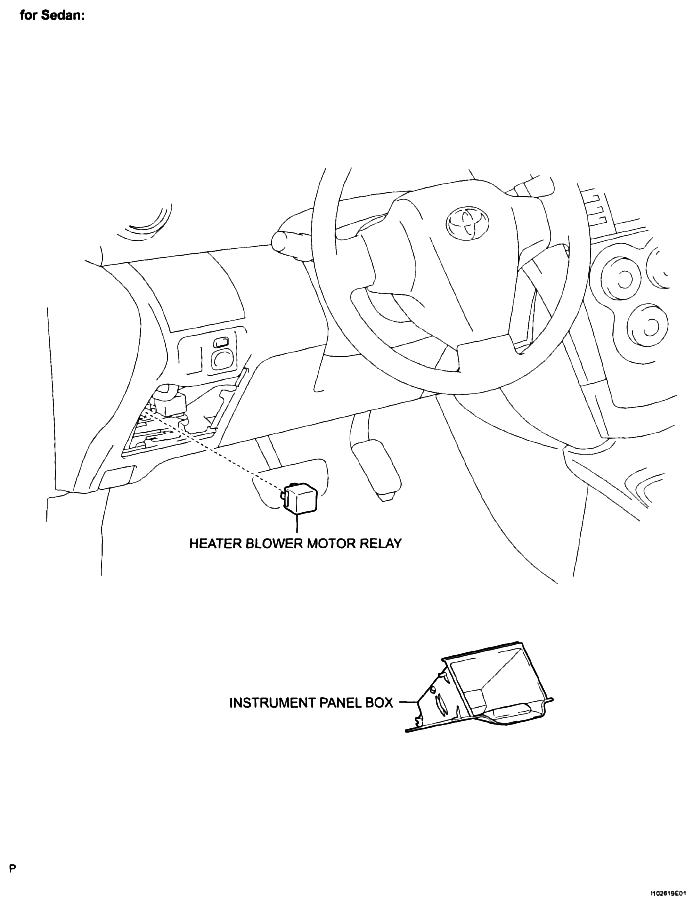

Fig 2: Identifying Heater Blower Motor Relay Components (2 Of 2)
G04829868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
