COMPRESSOR AND PULLEY (for 1NZ-FE): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Compressor And Pulley (For 1NZ-FE) Components With Torque Specifications (1 Of 2)
G04828371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

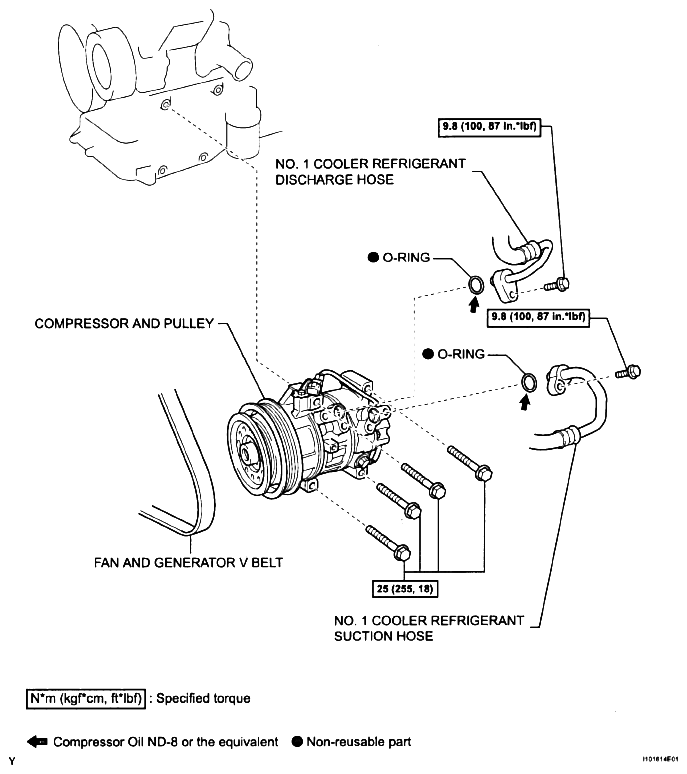

Fig 2: Compressor And Pulley (For 1NZ-FE) Components With Torque Specifications (2 Of 2)
G04829820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
