BLOWER UNIT (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

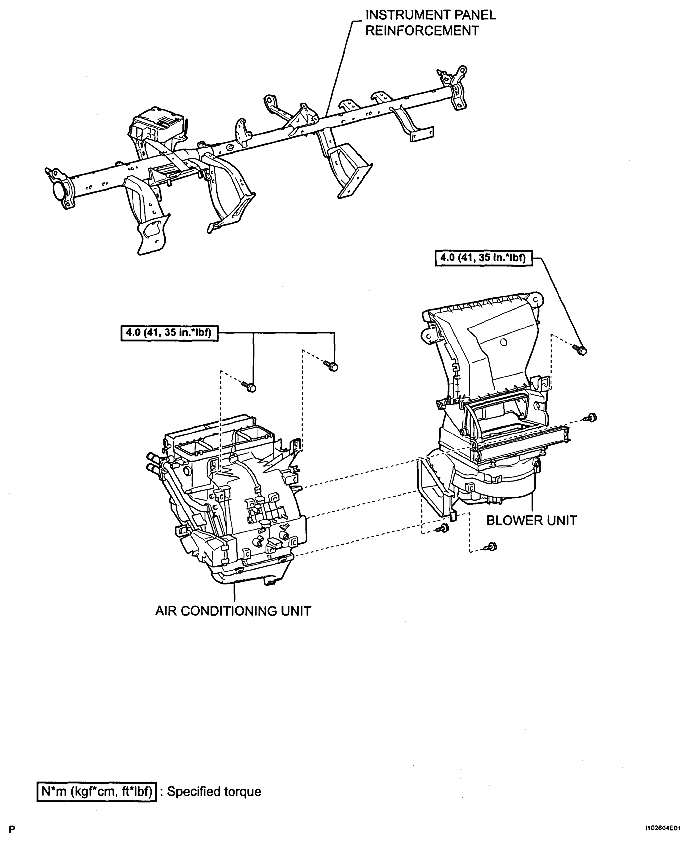

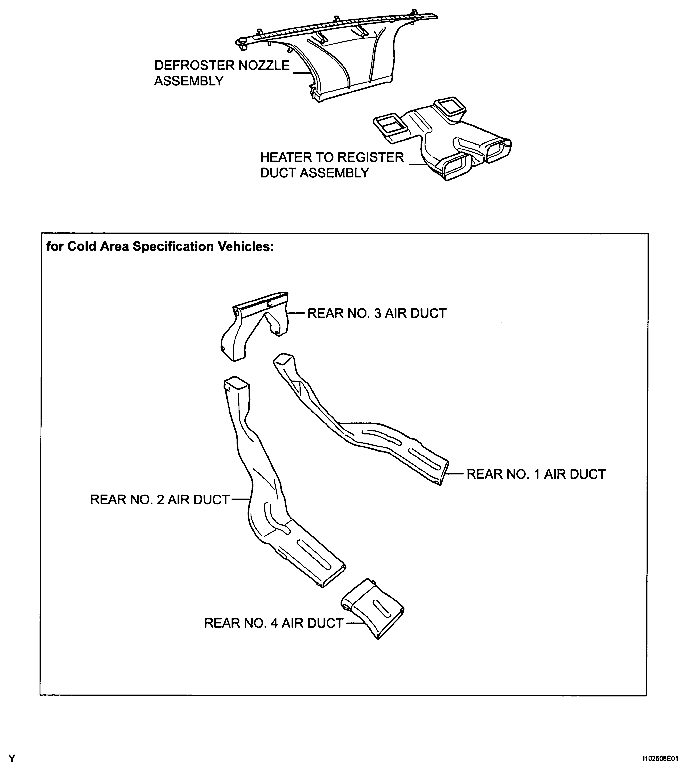

Fig 1: Identifying Blower Unit Components (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

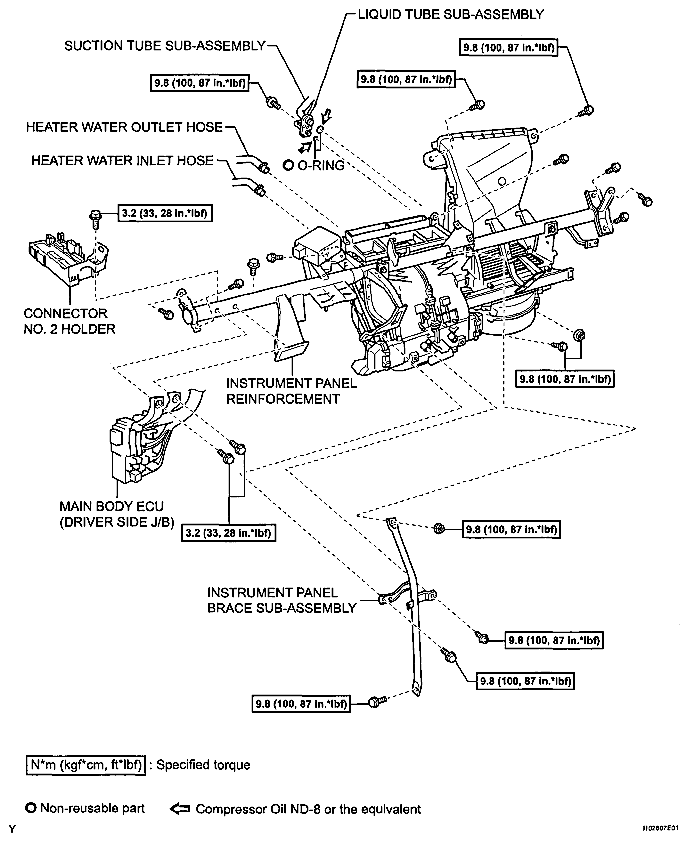

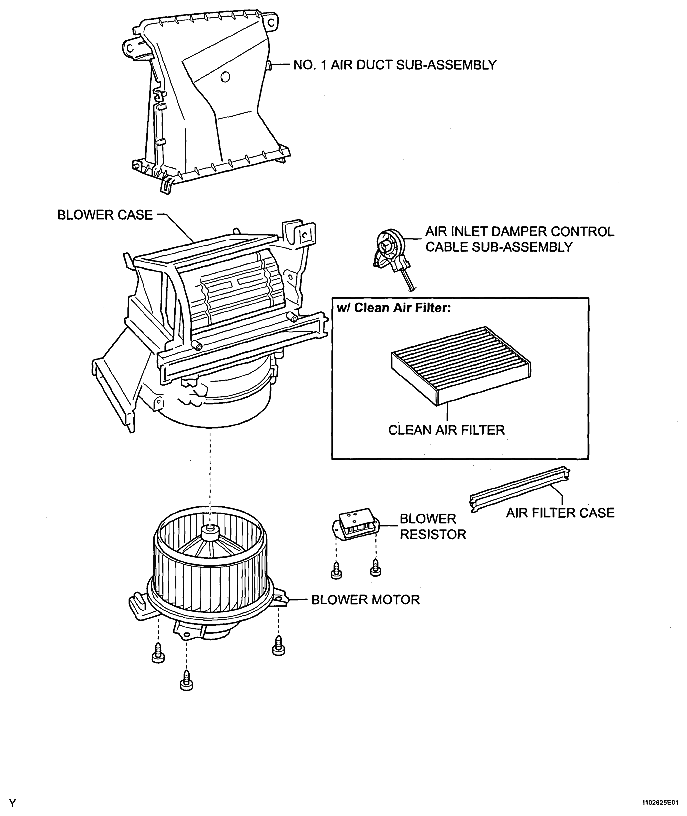

Fig 2: Blower Unit Components With Torque Specifications (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

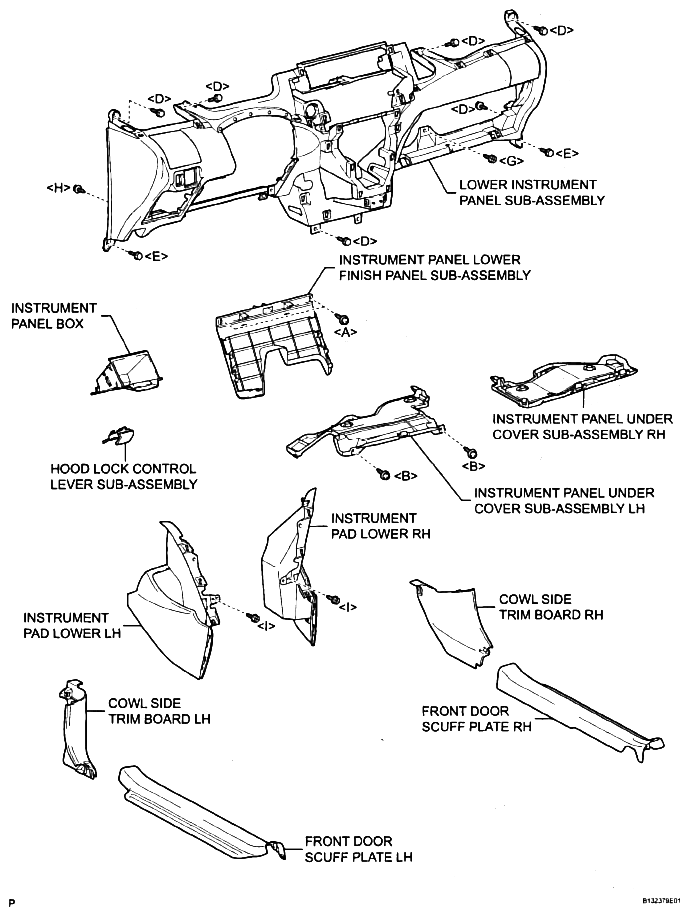

Fig 3: Identifying Blower Unit Components (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

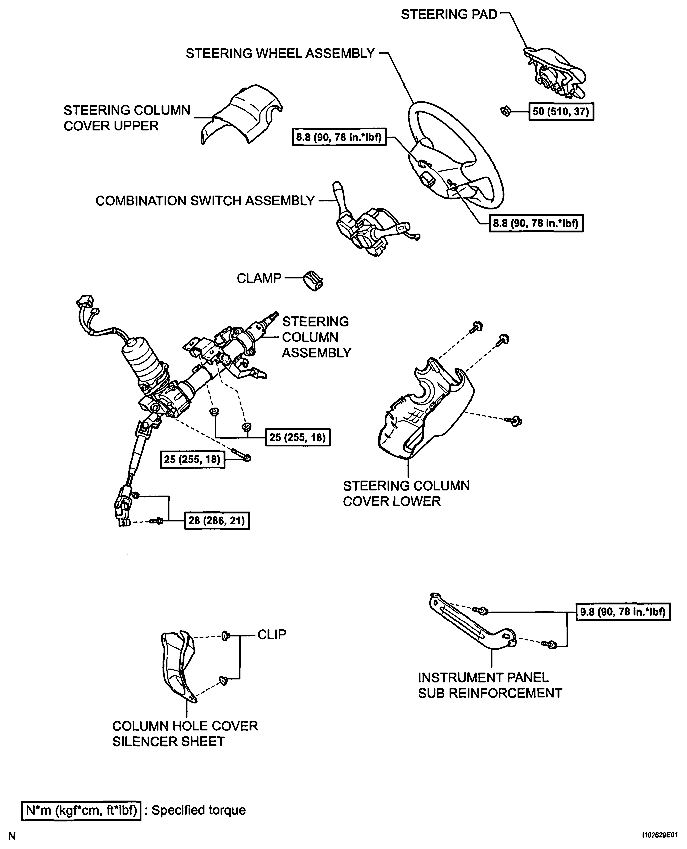

Fig 4: Identifying Blower Unit Components (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Blower Unit Components (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

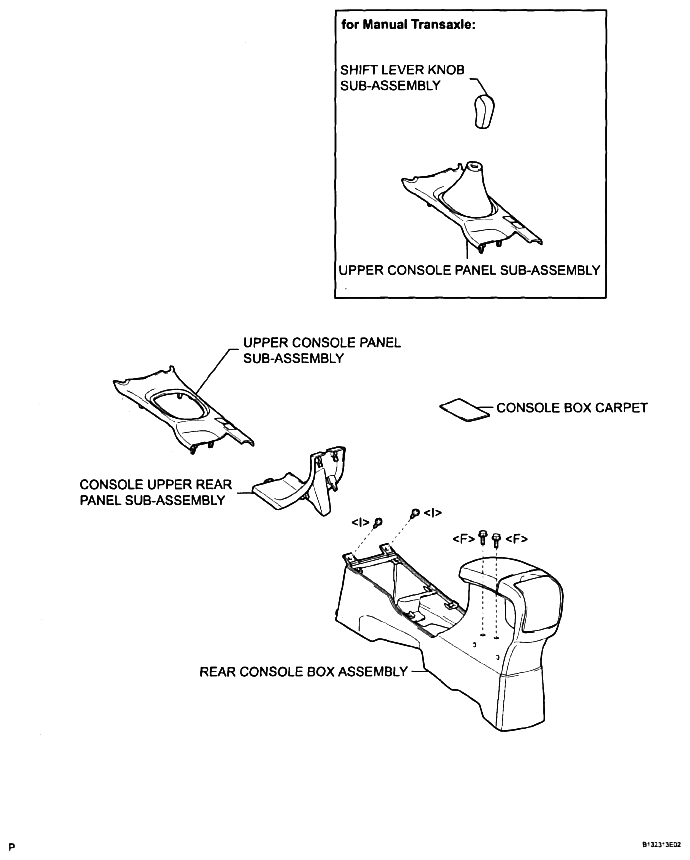

Fig 6: Blower Unit Components With Torque Specifications (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

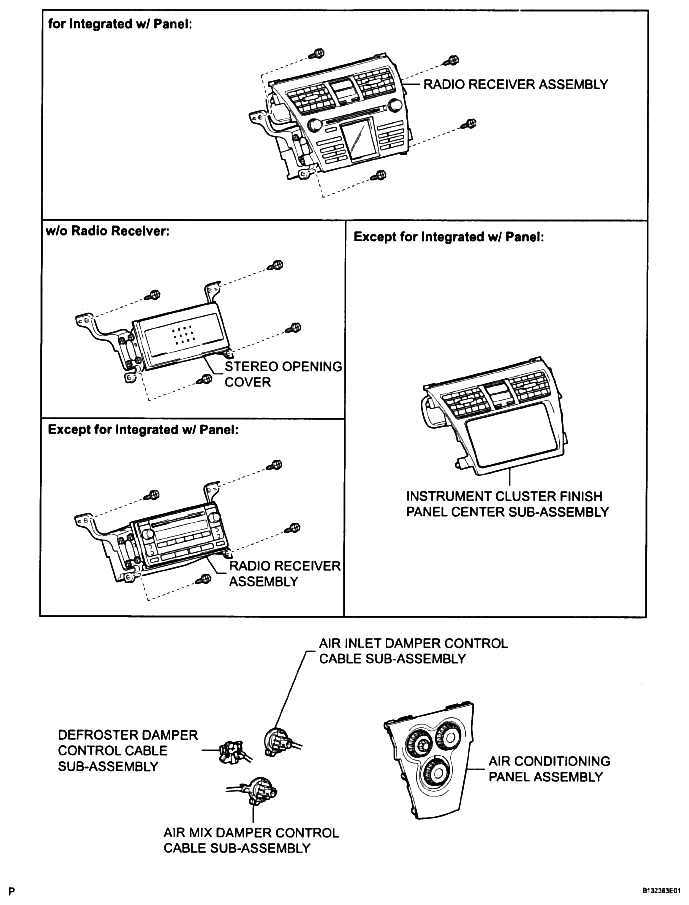

Fig 7: Blower Unit Components With Torque Specifications (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Blower Unit Components With Torque Specifications (8 Of 12)

Fig 9: Identifying Blower Unit Components (9 Of 12)

Fig 10: Blower Unit Components With Torque Specifications (10 Of 12)

Fig 11: Blower Unit Components With Torque Specifications (11 Of 12)

Fig 12: Identifying Blower Unit Components (12 Of 12)
