BLOWER UNIT (for Hatchback): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Blower Unit (For Hatchback) Replacement Components With Torque Specifications (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Blower Unit (For Hatchback) Components (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Blower Unit (For Hatchback) Components (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

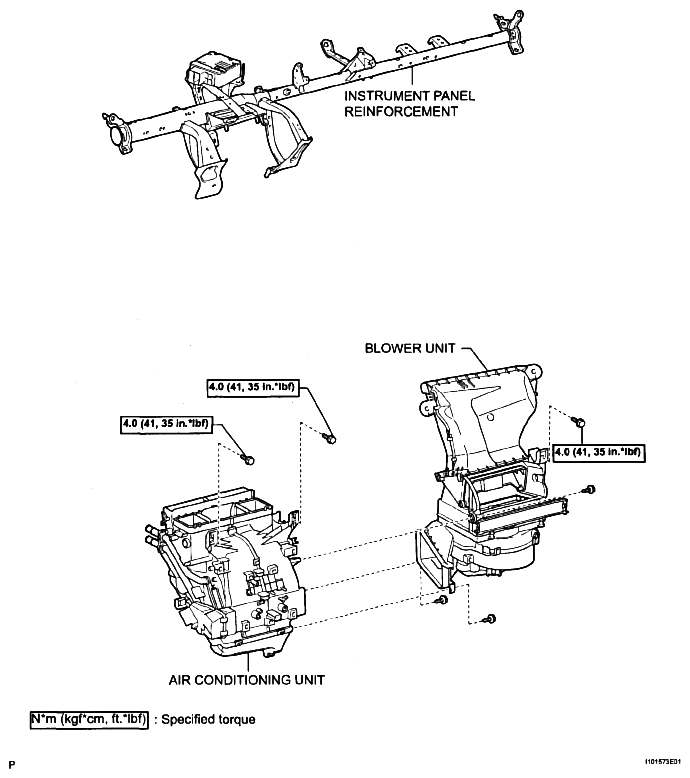

Fig 4: Blower Unit (For Hatchback) Replacement Components With Torque Specifications (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Blower Unit (For Hatchback) Components (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Blower Unit (For Hatchback) Components (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Blower Unit (For Hatchback) Components (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Blower Unit (For Hatchback) Replacement Components With Torque Specifications (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Blower Unit (For Hatchback) Replacement Components With Torque Specifications (9 Of 13)

Fig 10: Blower Unit (For Hatchback) Replacement Components With Torque Specifications (10 Of 13)

Fig 11: Blower Unit (For Hatchback) Replacement Components With Torque Specifications (11 Of 13)

Fig 12: Blower Unit (For Hatchback) Replacement Components With Torque Specifications (12 Of 13)

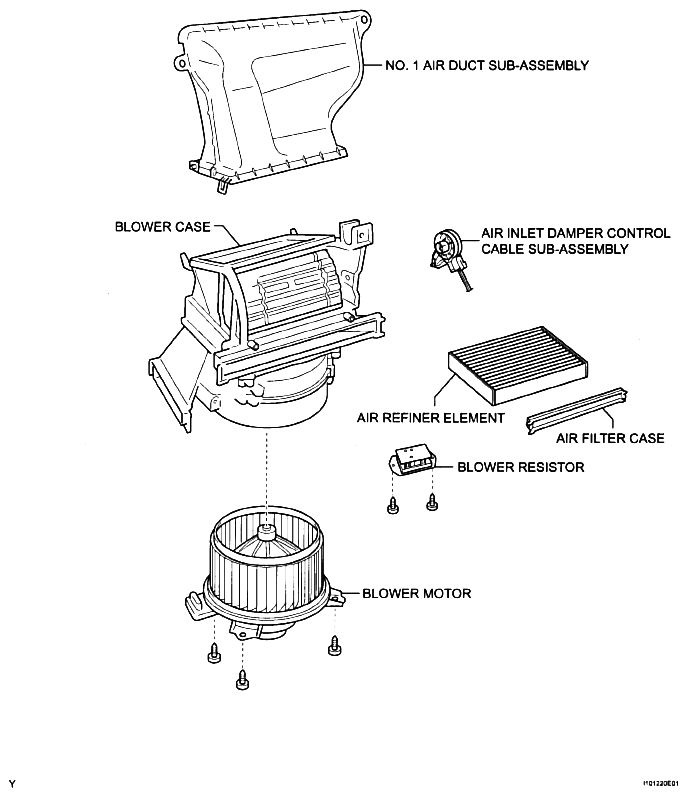

Fig 13: Identifying Blower Unit (For Hatchback) Components (13 Of 13)
