AIR CONDITIONING UNIT (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

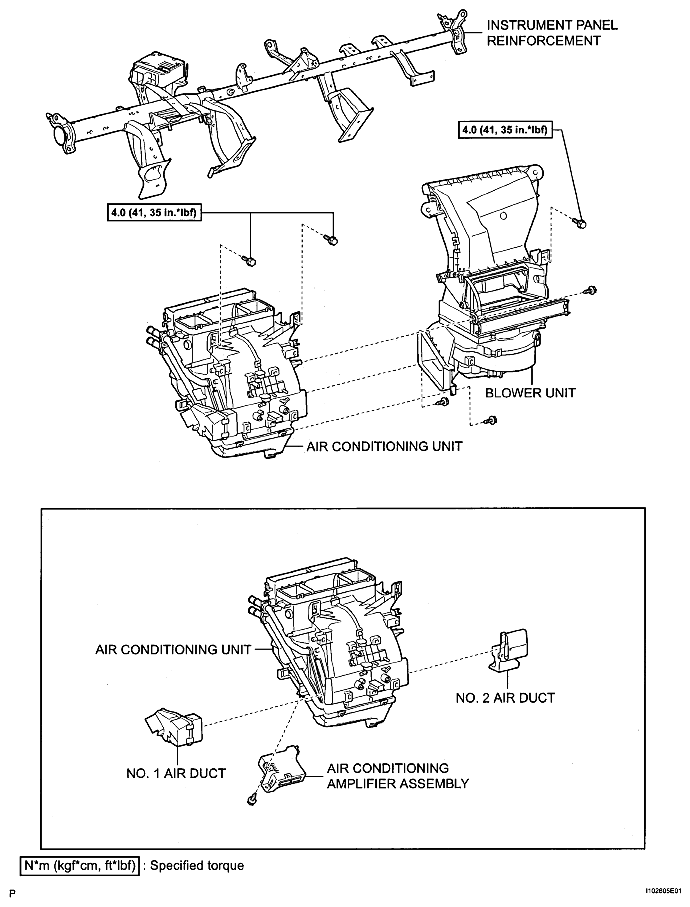

Fig 1: Identifying Air Conditioning Unit Components (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

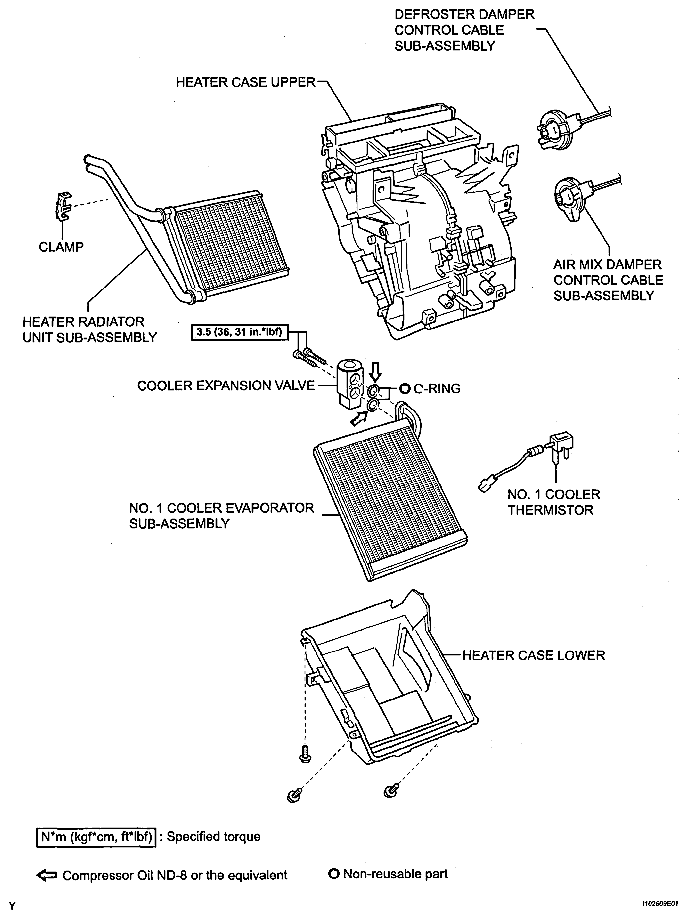

Fig 2: Blower Unit Components With Torque Specifications (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Air Conditioning Unit Components (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Air Conditioning Unit Components (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Air Conditioning Unit Components (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Blower Unit Components With Torque Specifications (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Blower Unit Components With Torque Specifications (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Blower Unit Components With Torque Specifications (8 Of 12)

Fig 9: Identifying Air Conditioning Unit Components (9 Of 12)

Fig 10: Blower Unit Components With Torque Specifications (10 Of 12)

Fig 11: Air Conditioning Unit Replacement Components With Torque Specifications (11 Of 12)

Fig 12: Air Conditioning Unit Replacement Components With Torque Specifications (12 Of 12)
